ARM11-6410SYS

ARM11기반 Mobile & Portable Embedded System
ARM11기반 삼성 S3C6410 (Max. 667MHz) 탑재
Linux 2.6.29, WinCE 6.0 운영체제,안드로이드 eclair 2.1 지원
ARM Approved Training Center 인증시스템
ARM11 Architecture 개발 및 교육용 시스템
RVDS 및 RV-ICE Emulator와 연결하여 Assembler,
Instruction, Firmware Code로
ARM11 Core 실습가능
DMB, 2M CIS Camera, ZigBee, Bluetooth, GPS,
CDMA, FPGA Module 지원
DMB+PMP, Car Navigation, PDA & Smart Phone
개발용 시스템

<IMG name='target_resize_image[]' onclick='image_window(this)' style='cursor:pointer;' style="VERTICAL-ALIGN: middle; CURSOR: pointer" onclick=image_window(this) name=target_resize_image[] src="/_data/_editor/1003/2040968486_161da8fd_square_arrow.gif" tmp_height="16" tmp_width="14" > 제품 개요
Samsung의 32bit Application Processor인 S3C6410을 사용한 보드로서 하이 스피드, 저전력에 알맞은 포터블 장치를 개발할 수 있게 한 개발 및 교육용 장비로써 임베디드 소프트웨어 응용 및 프로젝트 실습장비입니다. 1. ARM11기반 삼성 S3C6410 Processor 장착 ARM1176jzf-s 코어를 장착하고 667MHz까지 동작하는 고속 플랫폼으로 다양한 LCD 사이즈 와 Sound Codec지원으로 멀티미디어 개발에 적합하도록 설계하였습니다.   2. Linux2.6.29 / Windows CE 6.0 / Android / RVDS Firmware Code 탑재 Firmware 및 WinCE, Linux, Android를 쉽게 개발할 수 있도록 NAND/NOR Flash, Mobile SDRAM, Ethernet, SD-MMC, USB Storage를 지원합니다. • Google Android 2.1 Eclair 탑재 • 산업체 프로젝트 실무 개발을 위한 디바이스 드라이버 제공 • 임베디드 리눅스, WinCE6.0 교재 및 강의파일 제공 • Firmware 교재 및 강의파일 제공 <IMG name='target_resize_image[]' onclick='image_window(this)' style='cursor:pointer;' style="VERTICAL-ALIGN: middle; CURSOR: pointer" onclick=image_window(this) name=target_resize_image[] src="/_data/_editor/1003/2040968486_161da8fd_square_arrow.gif" tmp_height="16" tmp_width="14" > 특징
⇒ ARM11기반 삼성 S3C6410 Processor 장착<?xml:namespace prefix = o ns = "urn:schemas-microsoft-com:office:office" /><o:p></o:p>
• ARM1176JZF-S based CPU Subsystem with Java acceleration Engine<o:p></o:p>
• Operating Frequency : up to 667MHz<o:p></o:p>
• Multi Format CODEC(MFC) provides encoding and decoding of MPEG-4/H.263/H.264 up to 30fps@SD and decoding of VC1 video up to 30fps@SD<o:p></o:p>
• 2D Graphics Acceleration with BitBlt and Rotation<o:p></o:p>
- AC’97 audio codec interface and PCM serial audio interface<o:p></o:p>
- 1/2/4/8 bpp Palletized or 16/24bpp Non-Palletized Color-TFT support up to 1024x1024<o:p></o:p>
- High Speed-MMC/SD card support<o:p></o:p>
- Mobile DDR MemoryInterface with x16 or x32 data bus (266Mbps/pin DDR)<o:p></o:p>
- NTSC/PAL TV-Out/VGA support<o:p></o:p>
⇒ ARM ATC 인증용 임베디드 교육 플랫폼<o:p></o:p>
• RealView Compiler, Debugger, RealView ICE를 이용하여 소프트웨어 개발 교육에 활용<o:p></o:p>
• ARM사의 ATC (ARM Training Center) 과정으로 ARM사에서 직접 개발된 교재를 바탕으로 하드웨어와 어플리케이션에 대한 개발 환경, ARM 프로세서 코어의 구조와 장단점을 파악하고 프로그래밍 모델 및 소프트웨어 개발 전 과정을 이해할 수 있고 ARM ATC에서 발행하는 공인 수료증을 발급<o:p></o:p>
⇒ Linux2.6.21 / Windows CE 6.0 / RVDS<o:p></o:p>
Firmware Code 탑재<o:p></o:p>
• 산업체 프로젝트 실무 개발을 위한 디바이스 드라이버 제공<o:p></o:p>
• 임베디드 리눅스, WinCE6.0 교재 및 강의파일 제공<o:p></o:p>
• Firmware 교재 및 강의파일 제공<o:p></o:p>
⇒ 다양한 메모리 지원<o:p></o:p>
Mobile DDR SDRAM 128MB, NAND Flash 128MB, NOR Flash 1MB로 풍부한 저장 기능과 CF, SD/MMC, USB HOST등 다양한 메모리 지원<o:p></o:p>
⇒ 다양한 형태의 통신 지원<o:p></o:p>
Ethernet 10/100Mbps, USB2.0 OTG(Client), USB 1.1 Client, FFUART, BTUART, STUART, Bluetooth Module, GPS Module, CDMA Module, Wireless LAN Module, Zigbee Module을 지원<o:p></o:p>
⇒ 멀티미디어 실습 기능 강화<o:p></o:p>
• ZigBee, Bluetooth 모듈을 이용한 통신 응용 실습<o:p></o:p>
• 무선랜 응용 실습 / CDMA 실험 실습<o:p></o:p>
• DMB 응용 / GPS를 이용한 네비게이션 응용<o:p></o:p>
• 2백만 화소 CMOS Image Sensor<o:p></o:p>
⇒ 동영상 / 영화 초고속 플레이 지원<o:p></o:p>
• Low Power, High Performance<o:p></o:p>
• Multi Format CODEC(MFC) : MPEG-4/H.263/H.264,<o:p></o:p>
Decoding VC1<o:p></o:p>
• 2D Graphics Acceleration<o:p></o:p>
⇒ ARM11 Core 구조 이해를 위한 RVDS Firmware Code 지원 <o:p></o:p>
Assembler, Instruction 실습, Start up Boot code 실습, TFT-LCD, PLL 제어, PWM 인터럽트, External Interrupt, Touch Pane, Watch-Dog, LED, 7-Segment, UART, PUSH S/W, DIP S/W, BUZZER, DOTMATRIX, CAMERA, Ethernet Source code 지원<o:p></o:p>
⇒ 임베디드 시스템 실습실 구축 최적장비<o:p></o:p>
• 임베디드교육과정에 맞도록 표준 강의 자료 및 실습 자료 제공<o:p></o:p>
• 수요지향 표준교과 과정에 따른 실습 테마 제공<o:p></o:p>
• 임베디드 시스템 하드웨어 FPGA, VHDL 설계 테마 제공<o:p></o:p>
• 임베디드 설계 프로젝트 응용실험 실습 테마 제공<o:p></o:p>
• ARM11기반 Firmware 실습테마 제공<o:p></o:p>
⇒ 개발외주<o:p></o:p>
• 경험이 풍부한 휴인스의 개발 노하우를 통해 고객이 원하는<o:p></o:p>
완성된 시스템으로 제작해 드립니다. ARM, SoC, FPGA<o:p></o:p>
솔루션에 독특한 기술력과 임베디드 멀티미디어 솔루션<o:p></o:p>
기술력을 보유하고 있습니다.<o:p></o:p>
• 32비트 임베디드 프로세서와 FPGA 로직디바이스를<o:p></o:p>
응용한 시스템<o:p></o:p>
• 지능형로봇, 홈네트워크서버, 첨단의료기기 개발,<o:p></o:p>
소프트웨어 기반 솔루션 개발<o:p></o:p>
• DMB+PMP, Car Navigation, DMB TV Terminal, PDA & Smart Phone 설계 및 개발<o:p></o:p>
• 자동화 시스템 솔루션 설계 및 개발<o:p></o:p>

<DIV align=left>1. H/W
<DIV align=center>
<TABLE style="WIDTH: 487.5pt; mso-yfti-tbllook: 1184; mso-padding-alt: 1.5pt 1.5pt 1.5pt 1.5pt; mso-cellspacing: 0cm" class=MsoNormalTable border=1 cellSpacing=0 cellPadding=0 width=650>
<TBODY>
<TR style="mso-yfti-irow: 0; mso-yfti-firstrow: yes">
<TD style="BORDER-BOTTOM: #e8e8e8 1pt solid; BORDER-LEFT: #e8e8e8 1pt solid; PADDING-BOTTOM: 1.5pt; PADDING-LEFT: 1.5pt; WIDTH: 149.25pt; PADDING-RIGHT: 1.5pt; BACKGROUND: #006699; BORDER-TOP: #e8e8e8 1pt solid; BORDER-RIGHT: #e8e8e8 1pt solid; PADDING-TOP: 1.5pt; mso-border-alt: solid #E8E8E8 .75pt" vAlign=top width=199>
<P style="TEXT-ALIGN: center; LINE-HEIGHT: 150%; MARGIN: 0cm 0cm 0pt; TEXT-AUTOSPACE: ideograph-numeric; WORD-BREAK: keep-all; mso-pagination: widow-orphan; mso-margin-top-alt: auto; mso-margin-bottom-alt: auto" class=MsoNormal align=center>Item<?xml:namespace prefix = o ns = "urn:schemas-microsoft-com:office:office" /><o:p></o:p></TD>
<TD style="BORDER-BOTTOM: #e8e8e8 1pt solid; BORDER-LEFT: #e8e8e8 1pt solid; PADDING-BOTTOM: 1.5pt; PADDING-LEFT: 1.5pt; WIDTH: 318.75pt; PADDING-RIGHT: 1.5pt; BACKGROUND: #0099cc; BORDER-TOP: #e8e8e8 1pt solid; BORDER-RIGHT: #e8e8e8 1pt solid; PADDING-TOP: 1.5pt; mso-border-alt: solid #E8E8E8 .75pt" vAlign=top width=425>
<P style="TEXT-ALIGN: center; LINE-HEIGHT: 150%; MARGIN: 0cm 0cm 0pt; TEXT-AUTOSPACE: ideograph-numeric; WORD-BREAK: keep-all; mso-pagination: widow-orphan; mso-margin-top-alt: auto; mso-margin-bottom-alt: auto" class=MsoNormal align=center>Specification<o:p></o:p></TD></TR>
<TR style="mso-yfti-irow: 1">
<TD style="BORDER-BOTTOM: #e8e8e8 1pt solid; BORDER-LEFT: #e8e8e8 1pt solid; PADDING-BOTTOM: 1.5pt; PADDING-LEFT: 1.5pt; WIDTH: 149.25pt; PADDING-RIGHT: 1.5pt; BACKGROUND: #e8f3ff; BORDER-TOP: #e8e8e8 1pt solid; BORDER-RIGHT: #e8e8e8 1pt solid; PADDING-TOP: 1.5pt; mso-border-alt: solid #E8E8E8 .75pt" vAlign=top width=199>
<P style="TEXT-ALIGN: center; LINE-HEIGHT: 150%; MARGIN: 0cm 0cm 0pt; TEXT-AUTOSPACE: ideograph-numeric; WORD-BREAK: keep-all; mso-pagination: widow-orphan; mso-margin-top-alt: auto; mso-margin-bottom-alt: auto" class=MsoNormal align=center>Processor<o:p></o:p></TD>
<TD style="BORDER-BOTTOM: #e8e8e8 1pt solid; BORDER-LEFT: #e8e8e8 1pt solid; PADDING-BOTTOM: 1.5pt; BACKGROUND-COLOR: transparent; PADDING-LEFT: 1.5pt; WIDTH: 318.75pt; PADDING-RIGHT: 1.5pt; BORDER-TOP: #e8e8e8 1pt solid; BORDER-RIGHT: #e8e8e8 1pt solid; PADDING-TOP: 1.5pt; mso-border-alt: solid #E8E8E8 .75pt" vAlign=top width=425>
<P style="TEXT-ALIGN: left; LINE-HEIGHT: 150%; MARGIN: 0cm 0cm 0pt; TEXT-AUTOSPACE: ideograph-numeric; WORD-BREAK: keep-all; mso-pagination: widow-orphan; mso-margin-top-alt: auto; mso-margin-bottom-alt: auto" class=MsoNormal align=left>Samsung S3C6410  (ARM1176JZF-S, 533/667MHz)<o:p></o:p></TD></TR>
<TR style="mso-yfti-irow: 2">
<TD style="BORDER-BOTTOM: #e8e8e8 1pt solid; BORDER-LEFT: #e8e8e8 1pt solid; PADDING-BOTTOM: 1.5pt; PADDING-LEFT: 1.5pt; WIDTH: 149.25pt; PADDING-RIGHT: 1.5pt; BACKGROUND: #e8f3ff; BORDER-TOP: #e8e8e8 1pt solid; BORDER-RIGHT: #e8e8e8 1pt solid; PADDING-TOP: 1.5pt; mso-border-alt: solid #E8E8E8 .75pt" vAlign=top width=199>
<P style="TEXT-ALIGN: center; LINE-HEIGHT: 150%; MARGIN: 0cm 0cm 0pt; TEXT-AUTOSPACE: ideograph-numeric; WORD-BREAK: keep-all; mso-pagination: widow-orphan; mso-margin-top-alt: auto; mso-margin-bottom-alt: auto" class=MsoNormal align=center> <o:p></o:p>
<P style="TEXT-ALIGN: center; LINE-HEIGHT: 150%; MARGIN: 0cm 0cm 0pt; TEXT-AUTOSPACE: ideograph-numeric; WORD-BREAK: keep-all; mso-pagination: widow-orphan; mso-margin-top-alt: auto; mso-margin-bottom-alt: auto" class=MsoNormal align=center>Memory<o:p></o:p></TD>
<TD style="BORDER-BOTTOM: #e8e8e8 1pt solid; BORDER-LEFT: #e8e8e8 1pt solid; PADDING-BOTTOM: 1.5pt; BACKGROUND-COLOR: transparent; PADDING-LEFT: 1.5pt; WIDTH: 318.75pt; PADDING-RIGHT: 1.5pt; BORDER-TOP: #e8e8e8 1pt solid; BORDER-RIGHT: #e8e8e8 1pt solid; PADDING-TOP: 1.5pt; mso-border-alt: solid #E8E8E8 .75pt" vAlign=top width=425>
<P style="TEXT-ALIGN: left; LINE-HEIGHT: 150%; MARGIN: 0cm 0cm 0pt; TEXT-AUTOSPACE: ideograph-numeric; WORD-BREAK: keep-all; mso-pagination: widow-orphan; mso-margin-top-alt: auto; mso-margin-bottom-alt: auto" class=MsoNormal align=left>128MB Mobile DDR SDRAM 1MB NOR Flash  (AM29LV8000BB) 128MB NAND Flash  (K9F1208U0A) <o:p></o:p></TD></TR>
<TR style="mso-yfti-irow: 3">
<TD style="BORDER-BOTTOM: #e8e8e8 1pt solid; BORDER-LEFT: #e8e8e8 1pt solid; PADDING-BOTTOM: 1.5pt; PADDING-LEFT: 1.5pt; WIDTH: 149.25pt; PADDING-RIGHT: 1.5pt; BACKGROUND: #e8f3ff; BORDER-TOP: #e8e8e8 1pt solid; BORDER-RIGHT: #e8e8e8 1pt solid; PADDING-TOP: 1.5pt; mso-border-alt: solid #E8E8E8 .75pt" vAlign=top width=199>
<P style="TEXT-ALIGN: center; LINE-HEIGHT: 150%; MARGIN: 0cm 0cm 0pt; TEXT-AUTOSPACE: ideograph-numeric; WORD-BREAK: keep-all; mso-pagination: widow-orphan; mso-margin-top-alt: auto; mso-margin-bottom-alt: auto" class=MsoNormal align=center>Ethernet<o:p></o:p></TD>
<TD style="BORDER-BOTTOM: #e8e8e8 1pt solid; BORDER-LEFT: #e8e8e8 1pt solid; PADDING-BOTTOM: 1.5pt; BACKGROUND-COLOR: transparent; PADDING-LEFT: 1.5pt; WIDTH: 318.75pt; PADDING-RIGHT: 1.5pt; BORDER-TOP: #e8e8e8 1pt solid; BORDER-RIGHT: #e8e8e8 1pt solid; PADDING-TOP: 1.5pt; mso-border-alt: solid #E8E8E8 .75pt" vAlign=top width=425>
<P style="TEXT-ALIGN: left; LINE-HEIGHT: 150%; MARGIN: 0cm 0cm 0pt; TEXT-AUTOSPACE: ideograph-numeric; WORD-BREAK: keep-all; mso-pagination: widow-orphan; mso-margin-top-alt: auto; mso-margin-bottom-alt: auto" class=MsoNormal align=left>10/100 Mbps *1 Port  (LAN91C111) <o:p></o:p></TD></TR>
<TR style="mso-yfti-irow: 4">
<TD style="BORDER-BOTTOM: #e8e8e8 1pt solid; BORDER-LEFT: #e8e8e8 1pt solid; PADDING-BOTTOM: 1.5pt; PADDING-LEFT: 1.5pt; WIDTH: 149.25pt; PADDING-RIGHT: 1.5pt; BACKGROUND: #e8f3ff; BORDER-TOP: #e8e8e8 1pt solid; BORDER-RIGHT: #e8e8e8 1pt solid; PADDING-TOP: 1.5pt; mso-border-alt: solid #E8E8E8 .75pt" vAlign=top width=199>
<P style="TEXT-ALIGN: center; LINE-HEIGHT: 150%; MARGIN: 0cm 0cm 0pt; TEXT-AUTOSPACE: ideograph-numeric; WORD-BREAK: keep-all; mso-pagination: widow-orphan; mso-margin-top-alt: auto; mso-margin-bottom-alt: auto" class=MsoNormal align=center>LCD<o:p></o:p></TD>
<TD style="BORDER-BOTTOM: #e8e8e8 1pt solid; BORDER-LEFT: #e8e8e8 1pt solid; PADDING-BOTTOM: 1.5pt; BACKGROUND-COLOR: transparent; PADDING-LEFT: 1.5pt; WIDTH: 318.75pt; PADDING-RIGHT: 1.5pt; BORDER-TOP: #e8e8e8 1pt solid; BORDER-RIGHT: #e8e8e8 1pt solid; PADDING-TOP: 1.5pt; mso-border-alt: solid #E8E8E8 .75pt" vAlign=top width=425>
<P style="TEXT-ALIGN: left; LINE-HEIGHT: 150%; MARGIN: 0cm 0cm 0pt; TEXT-AUTOSPACE: ideograph-numeric; WORD-BREAK: keep-all; mso-pagination: widow-orphan; mso-margin-top-alt: auto; mso-margin-bottom-alt: auto" class=MsoNormal align=left>4.3” Wide Color TFT LCD (480x272) -*Option : 7 “ Wide Color TFT LCD (800x480) <o:p></o:p></TD></TR>
<TR style="mso-yfti-irow: 5">
<TD style="BORDER-BOTTOM: #e8e8e8 1pt solid; BORDER-LEFT: #e8e8e8 1pt solid; PADDING-BOTTOM: 1.5pt; PADDING-LEFT: 1.5pt; WIDTH: 149.25pt; PADDING-RIGHT: 1.5pt; BACKGROUND: #e8f3ff; BORDER-TOP: #e8e8e8 1pt solid; BORDER-RIGHT: #e8e8e8 1pt solid; PADDING-TOP: 1.5pt; mso-border-alt: solid #E8E8E8 .75pt" vAlign=top width=199>
<P style="TEXT-ALIGN: center; LINE-HEIGHT: 150%; MARGIN: 0cm 0cm 0pt; TEXT-AUTOSPACE: ideograph-numeric; WORD-BREAK: keep-all; mso-pagination: widow-orphan; mso-margin-top-alt: auto; mso-margin-bottom-alt: auto" class=MsoNormal align=center>Audio <o:p></o:p></TD>
<TD style="BORDER-BOTTOM: #e8e8e8 1pt solid; BORDER-LEFT: #e8e8e8 1pt solid; PADDING-BOTTOM: 1.5pt; BACKGROUND-COLOR: transparent; PADDING-LEFT: 1.5pt; WIDTH: 318.75pt; PADDING-RIGHT: 1.5pt; BORDER-TOP: #e8e8e8 1pt solid; BORDER-RIGHT: #e8e8e8 1pt solid; PADDING-TOP: 1.5pt; mso-border-alt: solid #E8E8E8 .75pt" vAlign=top width=425>
<P style="TEXT-ALIGN: left; LINE-HEIGHT: 150%; MARGIN: 0cm 0cm 0pt; TEXT-AUTOSPACE: ideograph-numeric; WORD-BREAK: keep-all; mso-pagination: widow-orphan; mso-margin-top-alt: auto; mso-margin-bottom-alt: auto" class=MsoNormal align=left>AC’97 지원, I2S (WM9713, WM8753) <o:p></o:p></TD></TR>
<TR style="mso-yfti-irow: 6">
<TD style="BORDER-BOTTOM: #e8e8e8 1pt solid; BORDER-LEFT: #e8e8e8 1pt solid; PADDING-BOTTOM: 1.5pt; PADDING-LEFT: 1.5pt; WIDTH: 149.25pt; PADDING-RIGHT: 1.5pt; BACKGROUND: #e8f3ff; BORDER-TOP: #e8e8e8 1pt solid; BORDER-RIGHT: #e8e8e8 1pt solid; PADDING-TOP: 1.5pt; mso-border-alt: solid #E8E8E8 .75pt" vAlign=top width=199>
<P style="TEXT-ALIGN: center; LINE-HEIGHT: 150%; MARGIN: 0cm 0cm 0pt; TEXT-AUTOSPACE: ideograph-numeric; WORD-BREAK: keep-all; mso-pagination: widow-orphan; mso-margin-top-alt: auto; mso-margin-bottom-alt: auto" class=MsoNormal align=center>Camera<o:p></o:p></TD>
<TD style="BORDER-BOTTOM: #e8e8e8 1pt solid; BORDER-LEFT: #e8e8e8 1pt solid; PADDING-BOTTOM: 1.5pt; BACKGROUND-COLOR: transparent; PADDING-LEFT: 1.5pt; WIDTH: 318.75pt; PADDING-RIGHT: 1.5pt; BORDER-TOP: #e8e8e8 1pt solid; BORDER-RIGHT: #e8e8e8 1pt solid; PADDING-TOP: 1.5pt; mso-border-alt: solid #E8E8E8 .75pt" vAlign=top width=425>
<P style="TEXT-ALIGN: left; LINE-HEIGHT: 150%; MARGIN: 0cm 0cm 0pt; TEXT-AUTOSPACE: ideograph-numeric; WORD-BREAK: keep-all; mso-pagination: widow-orphan; mso-margin-top-alt: auto; mso-margin-bottom-alt: auto" class=MsoNormal align=left>Camera Interface(* Option-2M Pixel CMOS Camera)<o:p></o:p></TD></TR>
<TR style="mso-yfti-irow: 7">
<TD style="BORDER-BOTTOM: #e8e8e8 1pt solid; BORDER-LEFT: #e8e8e8 1pt solid; PADDING-BOTTOM: 1.5pt; PADDING-LEFT: 1.5pt; WIDTH: 149.25pt; PADDING-RIGHT: 1.5pt; BACKGROUND: #e8f3ff; BORDER-TOP: #e8e8e8 1pt solid; BORDER-RIGHT: #e8e8e8 1pt solid; PADDING-TOP: 1.5pt; mso-border-alt: solid #E8E8E8 .75pt" vAlign=top width=199>
<P style="TEXT-ALIGN: center; LINE-HEIGHT: 150%; MARGIN: 0cm 0cm 0pt; TEXT-AUTOSPACE: ideograph-numeric; WORD-BREAK: keep-all; mso-pagination: widow-orphan; mso-margin-top-alt: auto; mso-margin-bottom-alt: auto" class=MsoNormal align=center>Flash Memory Card Slot<o:p></o:p></TD>
<TD style="BORDER-BOTTOM: #e8e8e8 1pt solid; BORDER-LEFT: #e8e8e8 1pt solid; PADDING-BOTTOM: 1.5pt; BACKGROUND-COLOR: transparent; PADDING-LEFT: 1.5pt; WIDTH: 318.75pt; PADDING-RIGHT: 1.5pt; BORDER-TOP: #e8e8e8 1pt solid; BORDER-RIGHT: #e8e8e8 1pt solid; PADDING-TOP: 1.5pt; mso-border-alt: solid #E8E8E8 .75pt" vAlign=top width=425>
<P style="TEXT-ALIGN: left; LINE-HEIGHT: 150%; MARGIN: 0cm 0cm 0pt; TEXT-AUTOSPACE: ideograph-numeric; WORD-BREAK: keep-all; mso-pagination: widow-orphan; mso-margin-top-alt: auto; mso-margin-bottom-alt: auto" class=MsoNormal align=left>MMC/SD *1 Slot<o:p></o:p></TD></TR>
<TR style="mso-yfti-irow: 8">
<TD style="BORDER-BOTTOM: #e8e8e8 1pt solid; BORDER-LEFT: #e8e8e8 1pt solid; PADDING-BOTTOM: 1.5pt; PADDING-LEFT: 1.5pt; WIDTH: 149.25pt; PADDING-RIGHT: 1.5pt; BACKGROUND: #e8f3ff; BORDER-TOP: #e8e8e8 1pt solid; BORDER-RIGHT: #e8e8e8 1pt solid; PADDING-TOP: 1.5pt; mso-border-alt: solid #E8E8E8 .75pt" vAlign=top width=199>
<P style="TEXT-ALIGN: center; LINE-HEIGHT: 150%; MARGIN: 0cm 0cm 0pt; TEXT-AUTOSPACE: ideograph-numeric; WORD-BREAK: keep-all; mso-pagination: widow-orphan; mso-margin-top-alt: auto; mso-margin-bottom-alt: auto" class=MsoNormal align=center>USB<o:p></o:p></TD>
<TD style="BORDER-BOTTOM: #e8e8e8 1pt solid; BORDER-LEFT: #e8e8e8 1pt solid; PADDING-BOTTOM: 1.5pt; BACKGROUND-COLOR: transparent; PADDING-LEFT: 1.5pt; WIDTH: 318.75pt; PADDING-RIGHT: 1.5pt; BORDER-TOP: #e8e8e8 1pt solid; BORDER-RIGHT: #e8e8e8 1pt solid; PADDING-TOP: 1.5pt; mso-border-alt: solid #E8E8E8 .75pt" vAlign=top width=425>
<P style="TEXT-ALIGN: left; LINE-HEIGHT: 150%; MARGIN: 0cm 0cm 0pt; TEXT-AUTOSPACE: ideograph-numeric; WORD-BREAK: keep-all; mso-pagination: widow-orphan; mso-margin-top-alt: auto; mso-margin-bottom-alt: auto" class=MsoNormal align=left>USB1.1 HOST *1 Port, USB2.0 Client *1 Port<o:p></o:p></TD></TR>
<TR style="mso-yfti-irow: 9">
<TD style="BORDER-BOTTOM: #e8e8e8 1pt solid; BORDER-LEFT: #e8e8e8 1pt solid; PADDING-BOTTOM: 1.5pt; PADDING-LEFT: 1.5pt; WIDTH: 149.25pt; PADDING-RIGHT: 1.5pt; BACKGROUND: #e8f3ff; BORDER-TOP: #e8e8e8 1pt solid; BORDER-RIGHT: #e8e8e8 1pt solid; PADDING-TOP: 1.5pt; mso-border-alt: solid #E8E8E8 .75pt" vAlign=top width=199>
<P style="TEXT-ALIGN: center; LINE-HEIGHT: 150%; MARGIN: 0cm 0cm 0pt; TEXT-AUTOSPACE: ideograph-numeric; WORD-BREAK: keep-all; mso-pagination: widow-orphan; mso-margin-top-alt: auto; mso-margin-bottom-alt: auto" class=MsoNormal align=center>TV-Out<o:p></o:p></TD>
<TD style="BORDER-BOTTOM: #e8e8e8 1pt solid; BORDER-LEFT: #e8e8e8 1pt solid; PADDING-BOTTOM: 1.5pt; BACKGROUND-COLOR: transparent; PADDING-LEFT: 1.5pt; WIDTH: 318.75pt; PADDING-RIGHT: 1.5pt; BORDER-TOP: #e8e8e8 1pt solid; BORDER-RIGHT: #e8e8e8 1pt solid; PADDING-TOP: 1.5pt; mso-border-alt: solid #E8E8E8 .75pt" vAlign=top width=425>
<P style="TEXT-ALIGN: left; LINE-HEIGHT: 150%; MARGIN: 0cm 0cm 0pt; TEXT-AUTOSPACE: ideograph-numeric; WORD-BREAK: keep-all; mso-pagination: widow-orphan; mso-margin-top-alt: auto; mso-margin-bottom-alt: auto" class=MsoNormal align=left>S-Video*1EA, Composite*1EA<o:p></o:p></TD></TR>
<TR style="mso-yfti-irow: 10">
<TD style="BORDER-BOTTOM: #e8e8e8 1pt solid; BORDER-LEFT: #e8e8e8 1pt solid; PADDING-BOTTOM: 1.5pt; PADDING-LEFT: 1.5pt; WIDTH: 149.25pt; PADDING-RIGHT: 1.5pt; BACKGROUND: #e8f3ff; BORDER-TOP: #e8e8e8 1pt solid; BORDER-RIGHT: #e8e8e8 1pt solid; PADDING-TOP: 1.5pt; mso-border-alt: solid #E8E8E8 .75pt" vAlign=top width=199>
<P style="TEXT-ALIGN: center; LINE-HEIGHT: 150%; MARGIN: 0cm 0cm 0pt; TEXT-AUTOSPACE: ideograph-numeric; WORD-BREAK: keep-all; mso-pagination: widow-orphan; mso-margin-top-alt: auto; mso-margin-bottom-alt: auto" class=MsoNormal align=center>UART<o:p></o:p></TD>
<TD style="BORDER-BOTTOM: #e8e8e8 1pt solid; BORDER-LEFT: #e8e8e8 1pt solid; PADDING-BOTTOM: 1.5pt; BACKGROUND-COLOR: transparent; PADDING-LEFT: 1.5pt; WIDTH: 318.75pt; PADDING-RIGHT: 1.5pt; BORDER-TOP: #e8e8e8 1pt solid; BORDER-RIGHT: #e8e8e8 1pt solid; PADDING-TOP: 1.5pt; mso-border-alt: solid #E8E8E8 .75pt" vAlign=top width=425>
<P style="TEXT-ALIGN: left; LINE-HEIGHT: 150%; MARGIN: 0cm 0cm 0pt; TEXT-AUTOSPACE: ideograph-numeric; WORD-BREAK: keep-all; mso-pagination: widow-orphan; mso-margin-top-alt: auto; mso-margin-bottom-alt: auto" class=MsoNormal align=left>RS-232 *3 Ports<o:p></o:p></TD></TR>
<TR style="mso-yfti-irow: 11">
<TD style="BORDER-BOTTOM: #e8e8e8 1pt solid; BORDER-LEFT: #e8e8e8 1pt solid; PADDING-BOTTOM: 1.5pt; PADDING-LEFT: 1.5pt; WIDTH: 149.25pt; PADDING-RIGHT: 1.5pt; BACKGROUND: #e8f3ff; BORDER-TOP: #e8e8e8 1pt solid; BORDER-RIGHT: #e8e8e8 1pt solid; PADDING-TOP: 1.5pt; mso-border-alt: solid #E8E8E8 .75pt" vAlign=top width=199>
<P style="TEXT-ALIGN: center; LINE-HEIGHT: 150%; MARGIN: 0cm 0cm 0pt; TEXT-AUTOSPACE: ideograph-numeric; WORD-BREAK: keep-all; mso-pagination: widow-orphan; mso-margin-top-alt: auto; mso-margin-bottom-alt: auto" class=MsoNormal align=center>GPIO<o:p></o:p></TD>
<TD style="BORDER-BOTTOM: #e8e8e8 1pt solid; BORDER-LEFT: #e8e8e8 1pt solid; PADDING-BOTTOM: 1.5pt; BACKGROUND-COLOR: transparent; PADDING-LEFT: 1.5pt; WIDTH: 318.75pt; PADDING-RIGHT: 1.5pt; BORDER-TOP: #e8e8e8 1pt solid; BORDER-RIGHT: #e8e8e8 1pt solid; PADDING-TOP: 1.5pt; mso-border-alt: solid #E8E8E8 .75pt" vAlign=top width=425>
<P style="TEXT-ALIGN: left; LINE-HEIGHT: 150%; MARGIN: 0cm 0cm 0pt; TEXT-AUTOSPACE: ideograph-numeric; WORD-BREAK: keep-all; mso-pagination: widow-orphan; mso-margin-top-alt: auto; mso-margin-bottom-alt: auto" class=MsoNormal align=left>LED, Keypad(6x2)<o:p></o:p></TD></TR>
<TR style="mso-yfti-irow: 12">
<TD style="BORDER-BOTTOM: #e8e8e8 1pt solid; BORDER-LEFT: #e8e8e8 1pt solid; PADDING-BOTTOM: 1.5pt; PADDING-LEFT: 1.5pt; WIDTH: 149.25pt; PADDING-RIGHT: 1.5pt; BACKGROUND: #e8f3ff; BORDER-TOP: #e8e8e8 1pt solid; BORDER-RIGHT: #e8e8e8 1pt solid; PADDING-TOP: 1.5pt; mso-border-alt: solid #E8E8E8 .75pt" vAlign=top width=199>
<P style="TEXT-ALIGN: center; LINE-HEIGHT: 150%; MARGIN: 0cm 0cm 0pt; TEXT-AUTOSPACE: ideograph-numeric; WORD-BREAK: keep-all; mso-pagination: widow-orphan; mso-margin-top-alt: auto; mso-margin-bottom-alt: auto" class=MsoNormal align=center>I/O<o:p></o:p></TD>
<TD style="BORDER-BOTTOM: #e8e8e8 1pt solid; BORDER-LEFT: #e8e8e8 1pt solid; PADDING-BOTTOM: 1.5pt; BACKGROUND-COLOR: transparent; PADDING-LEFT: 1.5pt; WIDTH: 318.75pt; PADDING-RIGHT: 1.5pt; BORDER-TOP: #e8e8e8 1pt solid; BORDER-RIGHT: #e8e8e8 1pt solid; PADDING-TOP: 1.5pt; mso-border-alt: solid #E8E8E8 .75pt" vAlign=top width=425>
<P style="TEXT-ALIGN: left; LINE-HEIGHT: 150%; MARGIN: 0cm 0cm 0pt; TEXT-AUTOSPACE: ideograph-numeric; WORD-BREAK: keep-all; mso-pagination: widow-orphan; mso-margin-top-alt: auto; mso-margin-bottom-alt: auto" class=MsoNormal align=left>LED*8EA, FND*2EA<o:p></o:p></TD></TR>
<TR style="mso-yfti-irow: 13">
<TD style="BORDER-BOTTOM: #e8e8e8 1pt solid; BORDER-LEFT: #e8e8e8 1pt solid; PADDING-BOTTOM: 1.5pt; PADDING-LEFT: 1.5pt; WIDTH: 149.25pt; PADDING-RIGHT: 1.5pt; BACKGROUND: #e8f3ff; BORDER-TOP: #e8e8e8 1pt solid; BORDER-RIGHT: #e8e8e8 1pt solid; PADDING-TOP: 1.5pt; mso-border-alt: solid #E8E8E8 .75pt" vAlign=top width=199>
<P style="TEXT-ALIGN: center; LINE-HEIGHT: 150%; MARGIN: 0cm 0cm 0pt; TEXT-AUTOSPACE: ideograph-numeric; WORD-BREAK: keep-all; mso-pagination: widow-orphan; mso-margin-top-alt: auto; mso-margin-bottom-alt: auto" class=MsoNormal align=center>DMB<o:p></o:p></TD>
<TD style="BORDER-BOTTOM: #e8e8e8 1pt solid; BORDER-LEFT: #e8e8e8 1pt solid; PADDING-BOTTOM: 1.5pt; BACKGROUND-COLOR: transparent; PADDING-LEFT: 1.5pt; WIDTH: 318.75pt; PADDING-RIGHT: 1.5pt; BORDER-TOP: #e8e8e8 1pt solid; BORDER-RIGHT: #e8e8e8 1pt solid; PADDING-TOP: 1.5pt; mso-border-alt: solid #E8E8E8 .75pt" vAlign=top width=425>
<P style="TEXT-ALIGN: left; LINE-HEIGHT: 150%; MARGIN: 0cm 0cm 0pt; TEXT-AUTOSPACE: ideograph-numeric; WORD-BREAK: keep-all; mso-pagination: widow-orphan; mso-margin-top-alt: auto; mso-margin-bottom-alt: auto" class=MsoNormal align=left>DMB Interface (*Option-DMB Module)<o:p></o:p></TD></TR>
<TR style="mso-yfti-irow: 14">
<TD style="BORDER-BOTTOM: #e8e8e8 1pt solid; BORDER-LEFT: #e8e8e8 1pt solid; PADDING-BOTTOM: 1.5pt; PADDING-LEFT: 1.5pt; WIDTH: 149.25pt; PADDING-RIGHT: 1.5pt; BACKGROUND: #e8f3ff; BORDER-TOP: #e8e8e8 1pt solid; BORDER-RIGHT: #e8e8e8 1pt solid; PADDING-TOP: 1.5pt; mso-border-alt: solid #E8E8E8 .75pt" vAlign=top width=199>
<P style="TEXT-ALIGN: center; LINE-HEIGHT: 150%; MARGIN: 0cm 0cm 0pt; TEXT-AUTOSPACE: ideograph-numeric; WORD-BREAK: keep-all; mso-pagination: widow-orphan; mso-margin-top-alt: auto; mso-margin-bottom-alt: auto" class=MsoNormal align=center>JTAG<o:p></o:p></TD>
<TD style="BORDER-BOTTOM: #e8e8e8 1pt solid; BORDER-LEFT: #e8e8e8 1pt solid; PADDING-BOTTOM: 1.5pt; BACKGROUND-COLOR: transparent; PADDING-LEFT: 1.5pt; WIDTH: 318.75pt; PADDING-RIGHT: 1.5pt; BORDER-TOP: #e8e8e8 1pt solid; BORDER-RIGHT: #e8e8e8 1pt solid; PADDING-TOP: 1.5pt; mso-border-alt: solid #E8E8E8 .75pt" vAlign=top width=425>
<P style="TEXT-ALIGN: left; LINE-HEIGHT: 150%; MARGIN: 0cm 0cm 0pt; TEXT-AUTOSPACE: ideograph-numeric; WORD-BREAK: keep-all; mso-pagination: widow-orphan; mso-margin-top-alt: auto; mso-margin-bottom-alt: auto" class=MsoNormal align=left>CPU JTAG*1 Port, CPLD JTAG*1 Port, RVDS JTAG*1 Port<o:p></o:p></TD></TR>
<TR style="mso-yfti-irow: 15">
<TD style="BORDER-BOTTOM: #e8e8e8 1pt solid; BORDER-LEFT: #e8e8e8 1pt solid; PADDING-BOTTOM: 1.5pt; PADDING-LEFT: 1.5pt; WIDTH: 149.25pt; PADDING-RIGHT: 1.5pt; BACKGROUND: #e8f3ff; BORDER-TOP: #e8e8e8 1pt solid; BORDER-RIGHT: #e8e8e8 1pt solid; PADDING-TOP: 1.5pt; mso-border-alt: solid #E8E8E8 .75pt" vAlign=top width=199>
<P style="TEXT-ALIGN: center; LINE-HEIGHT: 150%; MARGIN: 0cm 0cm 0pt; TEXT-AUTOSPACE: ideograph-numeric; WORD-BREAK: keep-all; mso-pagination: widow-orphan; mso-margin-top-alt: auto; mso-margin-bottom-alt: auto" class=MsoNormal align=center>Extension Connector<o:p></o:p></TD>
<TD style="BORDER-BOTTOM: #e8e8e8 1pt solid; BORDER-LEFT: #e8e8e8 1pt solid; PADDING-BOTTOM: 1.5pt; BACKGROUND-COLOR: transparent; PADDING-LEFT: 1.5pt; WIDTH: 318.75pt; PADDING-RIGHT: 1.5pt; BORDER-TOP: #e8e8e8 1pt solid; BORDER-RIGHT: #e8e8e8 1pt solid; PADDING-TOP: 1.5pt; mso-border-alt: solid #E8E8E8 .75pt" vAlign=top width=425>
<P style="TEXT-ALIGN: left; LINE-HEIGHT: 150%; MARGIN: 0cm 0cm 0pt; TEXT-AUTOSPACE: ideograph-numeric; WORD-BREAK: keep-all; mso-pagination: widow-orphan; mso-margin-top-alt: auto; mso-margin-bottom-alt: auto" class=MsoNormal align=left>I/O 및 각종 Peripherals 지원, 80pin  (*FPGA Module - Option) -LED,FND, DOT MATRIX, TEXT LCD, CAMERA, Stepping Motor, ADC, DAC <o:p></o:p></TD></TR>
<TR style="mso-yfti-irow: 16; mso-yfti-lastrow: yes">
<TD style="BORDER-BOTTOM: #e8e8e8 1pt solid; BORDER-LEFT: #e8e8e8 1pt solid; PADDING-BOTTOM: 1.5pt; PADDING-LEFT: 1.5pt; WIDTH: 149.25pt; PADDING-RIGHT: 1.5pt; BACKGROUND: #e8f3ff; BORDER-TOP: #e8e8e8 1pt solid; BORDER-RIGHT: #e8e8e8 1pt solid; PADDING-TOP: 1.5pt; mso-border-alt: solid #E8E8E8 .75pt" vAlign=top width=199>
<P style="TEXT-ALIGN: center; LINE-HEIGHT: 150%; MARGIN: 0cm 0cm 0pt; TEXT-AUTOSPACE: ideograph-numeric; WORD-BREAK: keep-all; mso-pagination: widow-orphan; mso-margin-top-alt: auto; mso-margin-bottom-alt: auto" class=MsoNormal align=center>Power<o:p></o:p></TD>
<TD style="BORDER-BOTTOM: #e8e8e8 1pt solid; BORDER-LEFT: #e8e8e8 1pt solid; PADDING-BOTTOM: 1.5pt; BACKGROUND-COLOR: transparent; PADDING-LEFT: 1.5pt; WIDTH: 318.75pt; PADDING-RIGHT: 1.5pt; BORDER-TOP: #e8e8e8 1pt solid; BORDER-RIGHT: #e8e8e8 1pt solid; PADDING-TOP: 1.5pt; mso-border-alt: solid #E8E8E8 .75pt" vAlign=top width=425>
<P style="TEXT-ALIGN: left; LINE-HEIGHT: 150%; MARGIN: 0cm 0cm 0pt; TEXT-AUTOSPACE: ideograph-numeric; WORD-BREAK: keep-all; mso-pagination: widow-orphan; mso-margin-top-alt: auto; mso-margin-bottom-alt: auto" class=MsoNormal align=left>AC Adapter (Input:220V, Output: 5V/4A)<o:p></o:p></TD></TR></TBODY></TABLE></DIV>

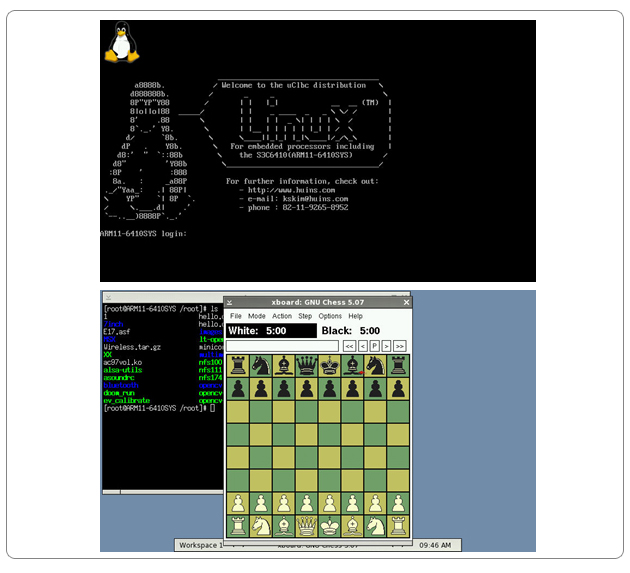

2. Linux 커널 및 디바이스 드라이버 <o:p><IMG name='target_resize_image[]' onclick='image_window(this)' style='cursor:pointer;' src="/_data/_editor/1004/3536717426_8d890c93_6.jpg" > <o:p></o:p>
<TABLE style="WIDTH: 491.3pt; mso-yfti-tbllook: 1184; mso-padding-alt: 1.5pt 1.5pt 1.5pt 1.5pt; mso-cellspacing: 0cm" class=MsoNormalTable border=1 cellSpacing=0 cellPadding=0 width=655>
<TBODY>
<TR style="HEIGHT: 22.5pt; mso-yfti-irow: 0; mso-yfti-firstrow: yes">
<TD style="BORDER-BOTTOM: #e8e8e8 1pt solid; BORDER-LEFT: #e8e8e8 1pt solid; PADDING-BOTTOM: 1.5pt; PADDING-LEFT: 1.5pt; WIDTH: 87.3pt; PADDING-RIGHT: 1.5pt; BACKGROUND: #006699; HEIGHT: 22.5pt; BORDER-TOP: #e8e8e8 1pt solid; BORDER-RIGHT: #e8e8e8 1pt solid; PADDING-TOP: 1.5pt; mso-border-alt: solid #E8E8E8 .75pt" width=116>
Item<o:p></o:p></TD>
<TD style="BORDER-BOTTOM: #e8e8e8 1pt solid; BORDER-LEFT: #e8e8e8 1pt solid; PADDING-BOTTOM: 1.5pt; PADDING-LEFT: 1.5pt; WIDTH: 404pt; PADDING-RIGHT: 1.5pt; BACKGROUND: #0099cc; HEIGHT: 22.5pt; BORDER-TOP: #e8e8e8 1pt solid; BORDER-RIGHT: #e8e8e8 1pt solid; PADDING-TOP: 1.5pt; mso-border-alt: solid #E8E8E8 .75pt" width=539>
Specification<o:p></o:p></TD></TR>
<TR style="HEIGHT: 20.5pt; mso-yfti-irow: 1">
<TD style="BORDER-BOTTOM: #e8e8e8 1pt solid; BORDER-LEFT: #e8e8e8 1pt solid; PADDING-BOTTOM: 1.5pt; PADDING-LEFT: 1.5pt; WIDTH: 87.3pt; PADDING-RIGHT: 1.5pt; BACKGROUND: #e8f3ff; HEIGHT: 20.5pt; BORDER-TOP: #e8e8e8 1pt solid; BORDER-RIGHT: #e8e8e8 1pt solid; PADDING-TOP: 1.5pt; mso-border-alt: solid #E8E8E8 .75pt" width=116>
Bootloader<o:p></o:p></TD>
<TD style="BORDER-BOTTOM: #e8e8e8 1pt solid; BORDER-LEFT: #e8e8e8 1pt solid; PADDING-BOTTOM: 1.5pt; PADDING-LEFT: 1.5pt; WIDTH: 404pt; PADDING-RIGHT: 1.5pt; BACKGROUND: white; HEIGHT: 20.5pt; BORDER-TOP: #e8e8e8 1pt solid; BORDER-RIGHT: #e8e8e8 1pt solid; PADDING-TOP: 1.5pt; mso-border-alt: solid #E8E8E8 .75pt" width=539>
 u-boot-1.1.6  u-boot-1.3.2 지원<o:p></o:p></TD></TR>
<TR style="mso-yfti-irow: 2">
<TD style="BORDER-BOTTOM: #e8e8e8 1pt solid; BORDER-LEFT: #e8e8e8 1pt solid; PADDING-BOTTOM: 1.5pt; PADDING-LEFT: 1.5pt; WIDTH: 87.3pt; PADDING-RIGHT: 1.5pt; BACKGROUND: #e8f3ff; BORDER-TOP: #e8e8e8 1pt solid; BORDER-RIGHT: #e8e8e8 1pt solid; PADDING-TOP: 1.5pt; mso-border-alt: solid #E8E8E8 .75pt" width=116>
Operation System<o:p></o:p></TD>
<TD style="BORDER-BOTTOM: #e8e8e8 1pt solid; BORDER-LEFT: #e8e8e8 1pt solid; PADDING-BOTTOM: 1.5pt; PADDING-LEFT: 1.5pt; WIDTH: 404pt; PADDING-RIGHT: 1.5pt; BACKGROUND: white; BORDER-TOP: #e8e8e8 1pt solid; BORDER-RIGHT: #e8e8e8 1pt solid; PADDING-TOP: 1.5pt; mso-border-alt: solid #E8E8E8 .75pt" width=539>
Linux Kernel Source <o:p></o:p>
- Linux-2.6.21<o:p></o:p>
- Linux-2.6.24<o:p></o:p>
- Linux-2.6.29<o:p></o:p></TD></TR>
<TR style="mso-yfti-irow: 3">
<TD style="BORDER-BOTTOM: #e8e8e8 1pt solid; BORDER-LEFT: #e8e8e8 1pt solid; PADDING-BOTTOM: 1.5pt; PADDING-LEFT: 1.5pt; WIDTH: 87.3pt; PADDING-RIGHT: 1.5pt; BACKGROUND: #e8f3ff; BORDER-TOP: #e8e8e8 1pt solid; BORDER-RIGHT: #e8e8e8 1pt solid; PADDING-TOP: 1.5pt; mso-border-alt: solid #E8E8E8 .75pt" width=116>
Driver<o:p></o:p></TD>
<TD style="BORDER-BOTTOM: #e8e8e8 1pt solid; BORDER-LEFT: #e8e8e8 1pt solid; PADDING-BOTTOM: 1.5pt; PADDING-LEFT: 1.5pt; WIDTH: 404pt; PADDING-RIGHT: 1.5pt; BACKGROUND: white; BORDER-TOP: #e8e8e8 1pt solid; BORDER-RIGHT: #e8e8e8 1pt solid; PADDING-TOP: 1.5pt; mso-border-alt: solid #E8E8E8 .75pt" width=539>
4.3"(480x272)/5”(800x480)/7"(800x480) TFT-LCD Display Driver<o:p></o:p>
H/W 가속기 Multi Format Codec(MFC) Driver<o:p></o:p>
(Post Processor Driver, MFC Driver, TV Driver, Image Rotator Driver, JPEG Driver, FIMG-2D Driver, FIMG-3D Driver, CMM Driver)<o:p></o:p>
Touch Driver (내장 12bit ADC)<o:p></o:p>
AC97 WM9713 Audio Driver(Headphone out, MIC in, LINE in)<o:p></o:p>
I2S WM8753 Audio Driver(Headphone, MIC in, LINEin)<o:p></o:p>
USB Host 1.1 Driver (Full Speed, Low Speed)<o:p></o:p>
- Wi-Fi, Bluetooth, Storage, WiMAX, Serial Converter, Keyboard, USB Hub 지원<o:p></o:p>
USB OTG 2.0 Driver(High Speed, Low Speed)<o:p></o:p>
- USB Host 2.0 각종 디바이스 지원<o:p></o:p>
- USB Client 2.0 지원(USB Gadget Driver- Gadget Zero, Ethernet Gadget, Gadget Filesystem, File-backed Storage Gadget, Serial Gadget, Android Gadget Driver)<o:p></o:p>
Key Pad Driver(12EA)<o:p></o:p>
SDHC SD/MMC Driver 16G/32G<o:p></o:p>
Nand Flash MTD Driver<o:p></o:p>
10/100 Mbps Ethernet Driver(LAN91C111)<o:p></o:p>
Samsung SoC I2C Driver<o:p></o:p>
S3C6410 High Speed SPI Driver<o:p></o:p>
Camera Interface Driver(Option-2M Pixel CMOS Camera)<o:p></o:p>
S-Video, Composite Driver<o:p></o:p>
In/Out GPIO Driver<o:p></o:p>
RS-232C 3Port Driver(GPS연동 가능)<o:p></o:p>
LED 8EA Driver, FND 2EA Driver<o:p></o:p>
DMB Interface Driver(가온전자, GDM-801, HW가속)<o:p></o:p>
Extension I/O Module Driver<o:p></o:p>
Watchdog Driver<o:p></o:p>
Real Time Clock(RTC) Driver (32.768KHz)<o:p></o:p>
Pulse Width Modulation Driver<o:p></o:p>
 <o:p></o:p>
리눅스 버전에 따라서 지원되는 디바이스가 다를 수 있습니다.<o:p></o:p></TD></TR>
<TR style="mso-yfti-irow: 4">
<TD style="BORDER-BOTTOM: #e8e8e8 1pt solid; BORDER-LEFT: #e8e8e8 1pt solid; PADDING-BOTTOM: 1.5pt; PADDING-LEFT: 1.5pt; WIDTH: 87.3pt; PADDING-RIGHT: 1.5pt; BACKGROUND: #e8f3ff; BORDER-TOP: #e8e8e8 1pt solid; BORDER-RIGHT: #e8e8e8 1pt solid; PADDING-TOP: 1.5pt; mso-border-alt: solid #E8E8E8 .75pt" width=116>
File System<o:p></o:p></TD>
<TD style="BORDER-BOTTOM: #e8e8e8 1pt solid; BORDER-LEFT: #e8e8e8 1pt solid; PADDING-BOTTOM: 1.5pt; PADDING-LEFT: 1.5pt; WIDTH: 404pt; PADDING-RIGHT: 1.5pt; BACKGROUND: white; BORDER-TOP: #e8e8e8 1pt solid; BORDER-RIGHT: #e8e8e8 1pt solid; PADDING-TOP: 1.5pt; mso-border-alt: solid #E8E8E8 .75pt" width=539>
• Basic library – libc, libcrypt, libdb, libdl, libglib, libgmodule, libm, libsl, libpthread, libresolv, librt, libuClibc, libutil<o:p></o:p>
• Application library – libio, libasound, libatk, libeecrypt, libbluetooth, libbz2, libcgi, libgicc, libcharset, libcrypto, libcurl, libdaemon, libdirect, libdirectfb, libdnet, libdrm, libevent, libeXosip2, libexpat, libexslt, libfontconfig, libfreetype, libgcrypt, libgdk_pixbuf, libgettextlib, libglade, libglib-2.0, libgmp, libgobject, libgstaudio, libgstreamer, libiconv, libid3tag, libidn, libintl, libxml, libjpeg, libltdl, liblmad, libmpd, libmpfr, libcurses, libneon, libnewt, libogg, libosip2, libpng, libSDL, libssl, libsysfs, libtheora, libtiff, libts, libusb, libvorbis, libz 외 다수 존재<o:p></o:p>
<o:p> </o:p>
• Application : mplayer, strace, ltrace, file, tcpdump, wget, dropbear, ntp, microcom, od, iwconfig, rz, sz, alsamixer외 다수 존재<o:p></o:p>
• SD Card 또는 USB Memory를 통하여 파일시스템을 마운트하여 사용가능<o:p></o:p></TD></TR>
<TR style="mso-yfti-irow: 5">
<TD style="BORDER-BOTTOM: #e8e8e8 1pt solid; BORDER-LEFT: #e8e8e8 1pt solid; PADDING-BOTTOM: 1.5pt; PADDING-LEFT: 1.5pt; WIDTH: 87.3pt; PADDING-RIGHT: 1.5pt; BACKGROUND: #e8f3ff; BORDER-TOP: #e8e8e8 1pt solid; BORDER-RIGHT: #e8e8e8 1pt solid; PADDING-TOP: 1.5pt; mso-border-alt: solid #E8E8E8 .75pt" width=116>
X window File System<o:p></o:p>
(X11)<o:p></o:p></TD>
<TD style="BORDER-BOTTOM: #e8e8e8 1pt solid; BORDER-LEFT: #e8e8e8 1pt solid; PADDING-BOTTOM: 1.5pt; PADDING-LEFT: 1.5pt; WIDTH: 404pt; PADDING-RIGHT: 1.5pt; BACKGROUND: white; BORDER-TOP: #e8e8e8 1pt solid; BORDER-RIGHT: #e8e8e8 1pt solid; PADDING-TOP: 1.5pt; mso-border-alt: solid #E8E8E8 .75pt" width=539>
• X-org X Window System X11R7, release 7.3<o:p></o:p>
• Basic Application : flex, bison, libtool, m4, file, lsof, ltrace, strace<o:p></o:p>
• Database : MySQL 5.1 client, sqlite<o:p></o:p>
• Networking : dropbear, ethtool, kismet, lt2p, NFS util, ntp, openssh, samba, wireless tools<o:p></o:p>
• Hardware handling : e2fsprogs, i2c-tools, input-tools, mtd/jffs2 utils, usb utils<o:p></o:p>
• Audio and video : alsa, gstreamer, mplayer, libid3tag, libmpd, libogg, libsndfile, libtheora, libvorbis 및 다양한 영상 및 음성 소트트웨어 코덱 지원<o:p></o:p>
• Graphic libraries and applications : dillo browser, directfb, jpeg, libart, png, gif, tiff, fbv,  freetype2, Webkit, atk, cairo, pango, libglade, libglib12, libgtk12, libgtk2, libsexy, fltk, blackbox, alsamixergui <o:p></o:p>
• Compress : zlib, lzma<o:p></o:p>
• Package : ipkg, portage<o:p></o:p>
• Interpreter language : microperl, python, php<o:p></o:p>
• XML : expat, ezxml, libxml2, libxslt, xerces-c++<o:p></o:p>
• Games : gnuchess, lxdoom, xmame , fMSX<o:p></o:p></TD></TR>
<TR style="mso-yfti-irow: 6; mso-yfti-lastrow: yes">
<TD style="BORDER-BOTTOM: #e8e8e8 1pt solid; BORDER-LEFT: #e8e8e8 1pt solid; PADDING-BOTTOM: 1.5pt; PADDING-LEFT: 1.5pt; WIDTH: 87.3pt; PADDING-RIGHT: 1.5pt; BACKGROUND: #e8f3ff; BORDER-TOP: #e8e8e8 1pt solid; BORDER-RIGHT: #e8e8e8 1pt solid; PADDING-TOP: 1.5pt; mso-border-alt: solid #E8E8E8 .75pt" width=116>
Compiler<o:p></o:p></TD>
<TD style="BORDER-BOTTOM: #e8e8e8 1pt solid; BORDER-LEFT: #e8e8e8 1pt solid; PADDING-BOTTOM: 1.5pt; PADDING-LEFT: 1.5pt; WIDTH: 404pt; PADDING-RIGHT: 1.5pt; BACKGROUND: white; BORDER-TOP: #e8e8e8 1pt solid; BORDER-RIGHT: #e8e8e8 1pt solid; PADDING-TOP: 1.5pt; mso-border-alt: solid #E8E8E8 .75pt" width=539>
GNU C Compiler : arm-linux-gcc EABI지원 GCC Version 4.x.x <o:p></o:p>
ARM ADS C Compiler, Debugger, Assembler Multi-ICE ARM Emulator (Option)<o:p></o:p></TD></TR></TBODY></TABLE></o:p></DIV>
3. Android <o:p></o:p>
<o:p> </o:p>
<TABLE style="WIDTH: 491.3pt; mso-yfti-tbllook: 1184; mso-padding-alt: 1.5pt 1.5pt 1.5pt 1.5pt; mso-cellspacing: 0cm" class=MsoNormalTable border=1 cellSpacing=0 cellPadding=0 width=655>
<TBODY>
<TR style="HEIGHT: 22.5pt; mso-yfti-irow: 0; mso-yfti-firstrow: yes">
<TD style="BORDER-BOTTOM: #e8e8e8 1pt solid; BORDER-LEFT: #e8e8e8 1pt solid; PADDING-BOTTOM: 1.5pt; PADDING-LEFT: 1.5pt; WIDTH: 87.3pt; PADDING-RIGHT: 1.5pt; BACKGROUND: #006699; HEIGHT: 22.5pt; BORDER-TOP: #e8e8e8 1pt solid; BORDER-RIGHT: #e8e8e8 1pt solid; PADDING-TOP: 1.5pt; mso-border-alt: solid #E8E8E8 .75pt" width=116>
Item<o:p></o:p></TD>
<TD style="BORDER-BOTTOM: #e8e8e8 1pt solid; BORDER-LEFT: #e8e8e8 1pt solid; PADDING-BOTTOM: 1.5pt; PADDING-LEFT: 1.5pt; WIDTH: 404pt; PADDING-RIGHT: 1.5pt; BACKGROUND: #0099cc; HEIGHT: 22.5pt; BORDER-TOP: #e8e8e8 1pt solid; BORDER-RIGHT: #e8e8e8 1pt solid; PADDING-TOP: 1.5pt; mso-border-alt: solid #E8E8E8 .75pt" width=539>
Specification<o:p></o:p></TD></TR>
<TR style="HEIGHT: 20.5pt; mso-yfti-irow: 1">
<TD style="BORDER-BOTTOM: #e8e8e8 1pt solid; BORDER-LEFT: #e8e8e8 1pt solid; PADDING-BOTTOM: 1.5pt; PADDING-LEFT: 1.5pt; WIDTH: 87.3pt; PADDING-RIGHT: 1.5pt; BACKGROUND: #e8f3ff; HEIGHT: 20.5pt; BORDER-TOP: #e8e8e8 1pt solid; BORDER-RIGHT: #e8e8e8 1pt solid; PADDING-TOP: 1.5pt; mso-border-alt: solid #E8E8E8 .75pt" width=116>
Filesystem<o:p></o:p></TD>
<TD style="BORDER-BOTTOM: #e8e8e8 1pt solid; BORDER-LEFT: #e8e8e8 1pt solid; PADDING-BOTTOM: 1.5pt; PADDING-LEFT: 1.5pt; WIDTH: 404pt; PADDING-RIGHT: 1.5pt; BACKGROUND: white; HEIGHT: 20.5pt; BORDER-TOP: #e8e8e8 1pt solid; BORDER-RIGHT: #e8e8e8 1pt solid; PADDING-TOP: 1.5pt; mso-border-alt: solid #E8E8E8 .75pt" width=539>
 Application Framework, Dalvik virtual machine, Integrated browser, Optimized graphics, SQLite, 미디어 지원, GSM 지원, Bluetooth, EDGE, 3G, and WiFi 지원, 카메라, GPS, Compass(나침반), Accelerometer(가속도계) 지원, Rich 개발 환경<o:p></o:p>
<o:p> </o:p>
Ver1.5 (cupcake) <o:p></o:p>
On-screen soft keyboard, Home screen, Camera & Gallery, <o:p></o:p>
Bluetooth, Browser, Contacts, System, Google applications<o:p></o:p>
<o:p> </o:p>
Ver1.6 (Donut)<o:p></o:p>
Expanded Search Framework, Text-to-speech engine, Gestures, Accessibility,<o:p></o:p>
Expanded support for screen densities and resolutions<o:p></o:p>
<o:p> </o:p>
Ver2.1 (Eclair)<o:p></o:p>
Media Framework, Android virtual keyboard, Contacts and accounts, Messaging<o:p></o:p></TD></TR>
<TR style="mso-yfti-irow: 2; mso-yfti-lastrow: yes">
<TD style="BORDER-BOTTOM: #e8e8e8 1pt solid; BORDER-LEFT: #e8e8e8 1pt solid; PADDING-BOTTOM: 1.5pt; PADDING-LEFT: 1.5pt; WIDTH: 87.3pt; PADDING-RIGHT: 1.5pt; BACKGROUND: #e8f3ff; BORDER-TOP: #e8e8e8 1pt solid; BORDER-RIGHT: #e8e8e8 1pt solid; PADDING-TOP: 1.5pt; mso-border-alt: solid #E8E8E8 .75pt" width=116>
SDK<o:p></o:p></TD>
<TD style="BORDER-BOTTOM: #e8e8e8 1pt solid; BORDER-LEFT: #e8e8e8 1pt solid; PADDING-BOTTOM: 1.5pt; PADDING-LEFT: 1.5pt; WIDTH: 404pt; PADDING-RIGHT: 1.5pt; BACKGROUND: white; BORDER-TOP: #e8e8e8 1pt solid; BORDER-RIGHT: #e8e8e8 1pt solid; PADDING-TOP: 1.5pt; mso-border-alt: solid #E8E8E8 .75pt" width=539>
Ver : 2.1 Eclair, Eclips ADT<o:p></o:p>
http://developer.android.com<o:p></o:p></TD></TR></TBODY></TABLE>
<o:p> </o:p>
<o:p> </o:p>
4. WinCE 사양<o:p></o:p>
<o:p> </o:p>
<TABLE style="WIDTH: 491.3pt; mso-yfti-tbllook: 1184; mso-padding-alt: 1.5pt 1.5pt 1.5pt 1.5pt; mso-cellspacing: 0cm" class=MsoNormalTable border=1 cellSpacing=0 cellPadding=0 width=655>
<TBODY>
<TR style="HEIGHT: 22.5pt; mso-yfti-irow: 0; mso-yfti-firstrow: yes">
<TD style="BORDER-BOTTOM: #e8e8e8 1pt solid; BORDER-LEFT: #e8e8e8 1pt solid; PADDING-BOTTOM: 1.5pt; PADDING-LEFT: 1.5pt; WIDTH: 87.3pt; PADDING-RIGHT: 1.5pt; BACKGROUND: #006699; HEIGHT: 22.5pt; BORDER-TOP: #e8e8e8 1pt solid; BORDER-RIGHT: #e8e8e8 1pt solid; PADDING-TOP: 1.5pt; mso-border-alt: solid #E8E8E8 .75pt" width=116>
Item<o:p></o:p></TD>
<TD style="BORDER-BOTTOM: #e8e8e8 1pt solid; BORDER-LEFT: #e8e8e8 1pt solid; PADDING-BOTTOM: 1.5pt; PADDING-LEFT: 1.5pt; WIDTH: 404pt; PADDING-RIGHT: 1.5pt; BACKGROUND: #0099cc; HEIGHT: 22.5pt; BORDER-TOP: #e8e8e8 1pt solid; BORDER-RIGHT: #e8e8e8 1pt solid; PADDING-TOP: 1.5pt; mso-border-alt: solid #E8E8E8 .75pt" width=539>
Specification<o:p></o:p></TD></TR>
<TR style="HEIGHT: 20.5pt; mso-yfti-irow: 1">
<TD style="BORDER-BOTTOM: #e8e8e8 1pt solid; BORDER-LEFT: #e8e8e8 1pt solid; PADDING-BOTTOM: 1.5pt; PADDING-LEFT: 1.5pt; WIDTH: 87.3pt; PADDING-RIGHT: 1.5pt; BACKGROUND: #e8f3ff; HEIGHT: 20.5pt; BORDER-TOP: #e8e8e8 1pt solid; BORDER-RIGHT: #e8e8e8 1pt solid; PADDING-TOP: 1.5pt; mso-border-alt: solid #E8E8E8 .75pt" width=116>
<P style="TEXT-ALIGN: left; MARGIN: 0cm 0cm 12pt; LAYOUT-GRID-MODE: char; TEXT-AUTOSPACE: ideograph-numeric; WORD-BREAK: keep-all; mso-pagination: widow-orphan; mso-line-height-alt: 2.8pt" class=MsoNormal align=left>부트로더<o:p></o:p></TD>
<TD style="BORDER-BOTTOM: #e8e8e8 1pt solid; BORDER-LEFT: #e8e8e8 1pt solid; PADDING-BOTTOM: 1.5pt; PADDING-LEFT: 1.5pt; WIDTH: 404pt; PADDING-RIGHT: 1.5pt; BACKGROUND: white; HEIGHT: 20.5pt; BORDER-TOP: #e8e8e8 1pt solid; BORDER-RIGHT: #e8e8e8 1pt solid; PADDING-TOP: 1.5pt; mso-border-alt: solid #E8E8E8 .75pt" width=539>
<P style="TEXT-ALIGN: left; MARGIN: 0cm 0cm 12pt; LAYOUT-GRID-MODE: char; TEXT-AUTOSPACE: ideograph-numeric; WORD-BREAK: keep-all; mso-pagination: widow-orphan; mso-line-height-alt: 2.8pt" class=MsoNormal align=left>EBOOT(Ethernet, USB download)<o:p></o:p></TD></TR>
<TR style="HEIGHT: 20.5pt; mso-yfti-irow: 2">
<TD style="BORDER-BOTTOM: #e8e8e8 1pt solid; BORDER-LEFT: #e8e8e8 1pt solid; PADDING-BOTTOM: 1.5pt; PADDING-LEFT: 1.5pt; WIDTH: 87.3pt; PADDING-RIGHT: 1.5pt; BACKGROUND: #e8f3ff; HEIGHT: 20.5pt; BORDER-TOP: #e8e8e8 1pt solid; BORDER-RIGHT: #e8e8e8 1pt solid; PADDING-TOP: 1.5pt; mso-border-alt: solid #E8E8E8 .75pt" width=116>
<P style="TEXT-ALIGN: left; MARGIN: 0cm 0cm 12pt; LAYOUT-GRID-MODE: char; TEXT-AUTOSPACE: ideograph-numeric; WORD-BREAK: keep-all; mso-pagination: widow-orphan; mso-line-height-alt: 2.8pt" class=MsoNormal align=left>커널<o:p></o:p></TD>
<TD style="BORDER-BOTTOM: #e8e8e8 1pt solid; BORDER-LEFT: #e8e8e8 1pt solid; PADDING-BOTTOM: 1.5pt; PADDING-LEFT: 1.5pt; WIDTH: 404pt; PADDING-RIGHT: 1.5pt; BACKGROUND: white; HEIGHT: 20.5pt; BORDER-TOP: #e8e8e8 1pt solid; BORDER-RIGHT: #e8e8e8 1pt solid; PADDING-TOP: 1.5pt; mso-border-alt: solid #E8E8E8 .75pt" width=539>
<P style="TEXT-ALIGN: left; MARGIN: 0cm 0cm 12pt; LAYOUT-GRID-MODE: char; TEXT-AUTOSPACE: ideograph-numeric; WORD-BREAK: keep-all; mso-pagination: widow-orphan; mso-line-height-alt: 2.8pt" class=MsoNormal align=left>MS Windows Embedded CE 6.0 R2<o:p></o:p></TD></TR>
<TR style="HEIGHT: 20.5pt; mso-yfti-irow: 3">
<TD style="BORDER-BOTTOM: #e8e8e8 1pt solid; BORDER-LEFT: #e8e8e8 1pt solid; PADDING-BOTTOM: 1.5pt; PADDING-LEFT: 1.5pt; WIDTH: 87.3pt; PADDING-RIGHT: 1.5pt; BACKGROUND: #e8f3ff; HEIGHT: 20.5pt; BORDER-TOP: #e8e8e8 1pt solid; BORDER-RIGHT: #e8e8e8 1pt solid; PADDING-TOP: 1.5pt; mso-border-alt: solid #E8E8E8 .75pt" width=116>
<P style="TEXT-ALIGN: left; MARGIN: 0cm 0cm 12pt; LAYOUT-GRID-MODE: char; TEXT-AUTOSPACE: ideograph-numeric; WORD-BREAK: keep-all; mso-pagination: widow-orphan; mso-line-height-alt: 2.8pt" class=MsoNormal align=left>디바이스 드라이버<o:p></o:p></TD>
<TD style="BORDER-BOTTOM: #e8e8e8 1pt solid; BORDER-LEFT: #e8e8e8 1pt solid; PADDING-BOTTOM: 1.5pt; PADDING-LEFT: 1.5pt; WIDTH: 404pt; PADDING-RIGHT: 1.5pt; BACKGROUND: white; HEIGHT: 20.5pt; BORDER-TOP: #e8e8e8 1pt solid; BORDER-RIGHT: #e8e8e8 1pt solid; PADDING-TOP: 1.5pt; mso-border-alt: solid #E8E8E8 .75pt" width=539>
<P style="TEXT-ALIGN: left; LINE-HEIGHT: 160%; MARGIN: 0cm 0cm 0pt; LAYOUT-GRID-MODE: char; TEXT-AUTOSPACE: ideograph-numeric; WORD-BREAK: keep-all; mso-pagination: widow-orphan" class=MsoNormal align=left>4.3"(480x272) 7"(800x480) TFT-LCD Display Driver<o:p></o:p>
<P style="TEXT-ALIGN: left; LINE-HEIGHT: 160%; MARGIN: 0cm 0cm 0pt; LAYOUT-GRID-MODE: char; TEXT-AUTOSPACE: ideograph-numeric; WORD-BREAK: keep-all; mso-pagination: widow-orphan" class=MsoNormal align=left>Touch Driver (ADS7846, 내장 ADC)<o:p></o:p>
<P style="TEXT-ALIGN: left; LINE-HEIGHT: 160%; MARGIN: 0cm 0cm 0pt; LAYOUT-GRID-MODE: char; TEXT-AUTOSPACE: ideograph-numeric; WORD-BREAK: keep-all; mso-pagination: widow-orphan" class=MsoNormal align=left>AC97, I2S Audio Driver (WM8753, WM9713)<o:p></o:p>
<P style="TEXT-ALIGN: left; LINE-HEIGHT: 160%; MARGIN: 0cm 0cm 0pt; LAYOUT-GRID-MODE: char; TEXT-AUTOSPACE: ideograph-numeric; WORD-BREAK: keep-all; mso-pagination: widow-orphan" class=MsoNormal align=left>USB Host 1.1 Driver<o:p></o:p>
<P style="TEXT-ALIGN: left; LINE-HEIGHT: 160%; MARGIN: 0cm 0cm 0pt; LAYOUT-GRID-MODE: char; TEXT-AUTOSPACE: ideograph-numeric; WORD-BREAK: keep-all; mso-pagination: widow-orphan" class=MsoNormal align=left>USB Client 1.1 Driver<o:p></o:p>
<P style="TEXT-ALIGN: left; LINE-HEIGHT: 160%; MARGIN: 0cm 0cm 0pt; LAYOUT-GRID-MODE: char; TEXT-AUTOSPACE: ideograph-numeric; WORD-BREAK: keep-all; mso-pagination: widow-orphan" class=MsoNormal align=left>Key Pad Driver(12EA)<o:p></o:p>
<P style="TEXT-ALIGN: left; LINE-HEIGHT: 160%; MARGIN: 0cm 0cm 0pt; LAYOUT-GRID-MODE: char; TEXT-AUTOSPACE: ideograph-numeric; WORD-BREAK: keep-all; mso-pagination: widow-orphan" class=MsoNormal align=left>SDHC Driver 16G/32G<o:p></o:p>
<P style="TEXT-ALIGN: left; LINE-HEIGHT: 160%; MARGIN: 0cm 0cm 0pt; LAYOUT-GRID-MODE: char; TEXT-AUTOSPACE: ideograph-numeric; WORD-BREAK: keep-all; mso-pagination: widow-orphan" class=MsoNormal align=left>NandFlash Driver()<o:p></o:p>
<P style="TEXT-ALIGN: left; LINE-HEIGHT: 160%; MARGIN: 0cm 0cm 0pt; LAYOUT-GRID-MODE: char; TEXT-AUTOSPACE: ideograph-numeric; WORD-BREAK: keep-all; mso-pagination: widow-orphan" class=MsoNormal align=left>10/100 Mbps Ethernet Driver(LAN91C111)<o:p></o:p>
<P style="TEXT-ALIGN: left; LINE-HEIGHT: 160%; MARGIN: 0cm 0cm 0pt; LAYOUT-GRID-MODE: char; TEXT-AUTOSPACE: ideograph-numeric; WORD-BREAK: keep-all; mso-pagination: widow-orphan" class=MsoNormal align=left>Camera Interface Driver(Option-2M Pixel CMOS Camera)<o:p></o:p>
<P style="TEXT-ALIGN: left; LINE-HEIGHT: 160%; MARGIN: 0cm 0cm 0pt; LAYOUT-GRID-MODE: char; TEXT-AUTOSPACE: ideograph-numeric; WORD-BREAK: keep-all; mso-pagination: widow-orphan" class=MsoNormal align=left>S-Video, Composite Driver<o:p></o:p>
<P style="TEXT-ALIGN: left; LINE-HEIGHT: 160%; MARGIN: 0cm 0cm 0pt; LAYOUT-GRID-MODE: char; TEXT-AUTOSPACE: ideograph-numeric; WORD-BREAK: keep-all; mso-pagination: widow-orphan" class=MsoNormal align=left>RS-232C 3Port Driver(GPS연동 가능)<o:p></o:p>
<P style="TEXT-ALIGN: left; LINE-HEIGHT: 160%; MARGIN: 0cm 0cm 0pt; LAYOUT-GRID-MODE: char; TEXT-AUTOSPACE: ideograph-numeric; WORD-BREAK: keep-all; mso-pagination: widow-orphan" class=MsoNormal align=left>LED 8EA Driver, FND 2EA Driver<o:p></o:p>
<P style="TEXT-ALIGN: left; LINE-HEIGHT: 160%; MARGIN: 0cm 0cm 0pt; LAYOUT-GRID-MODE: char; TEXT-AUTOSPACE: ideograph-numeric; WORD-BREAK: keep-all; mso-pagination: widow-orphan" class=MsoNormal align=left>DMB Interface Driver(가온전자, GDM-801, HW가속)<o:p></o:p>
<P style="TEXT-ALIGN: left; MARGIN: 0cm 0cm 12pt; LAYOUT-GRID-MODE: char; TEXT-AUTOSPACE: ideograph-numeric; WORD-BREAK: keep-all; mso-pagination: widow-orphan; mso-line-height-alt: 2.8pt" class=MsoNormal align=left>Extension I/O Module Driver<o:p></o:p></TD></TR>
<TR style="HEIGHT: 20.5pt; mso-yfti-irow: 4">
<TD style="BORDER-BOTTOM: #e8e8e8 1pt solid; BORDER-LEFT: #e8e8e8 1pt solid; PADDING-BOTTOM: 1.5pt; PADDING-LEFT: 1.5pt; WIDTH: 87.3pt; PADDING-RIGHT: 1.5pt; BACKGROUND: #e8f3ff; HEIGHT: 20.5pt; BORDER-TOP: #e8e8e8 1pt solid; BORDER-RIGHT: #e8e8e8 1pt solid; PADDING-TOP: 1.5pt; mso-border-alt: solid #E8E8E8 .75pt" width=116>
<P style="TEXT-ALIGN: left; MARGIN: 0cm 0cm 12pt; LAYOUT-GRID-MODE: char; TEXT-AUTOSPACE: ideograph-numeric; WORD-BREAK: keep-all; mso-pagination: widow-orphan; mso-line-height-alt: 2.8pt" class=MsoNormal align=left>응용프로그램<o:p></o:p></TD>
<TD style="BORDER-BOTTOM: #e8e8e8 1pt solid; BORDER-LEFT: #e8e8e8 1pt solid; PADDING-BOTTOM: 1.5pt; PADDING-LEFT: 1.5pt; WIDTH: 404pt; PADDING-RIGHT: 1.5pt; BACKGROUND: white; HEIGHT: 20.5pt; BORDER-TOP: #e8e8e8 1pt solid; BORDER-RIGHT: #e8e8e8 1pt solid; PADDING-TOP: 1.5pt; mso-border-alt: solid #E8E8E8 .75pt" width=539>
<P style="TEXT-ALIGN: left; LINE-HEIGHT: 160%; MARGIN: 0cm 0cm 0pt; LAYOUT-GRID-MODE: char; TEXT-AUTOSPACE: ideograph-numeric; WORD-BREAK: keep-all; mso-pagination: widow-orphan" class=MsoNormal align=left>DMB Player(Nextreaming)<o:p></o:p>
<P style="TEXT-ALIGN: left; MARGIN: 0cm 0cm 12pt; LAYOUT-GRID-MODE: char; TEXT-AUTOSPACE: ideograph-numeric; WORD-BREAK: keep-all; mso-pagination: widow-orphan; mso-line-height-alt: 2.8pt" class=MsoNormal align=left>LED/FND 구동 테스트 프로그램<o:p></o:p></TD></TR>
<TR style="HEIGHT: 20.5pt; mso-yfti-irow: 5">
<TD style="BORDER-BOTTOM: #e8e8e8 1pt solid; BORDER-LEFT: #e8e8e8 1pt solid; PADDING-BOTTOM: 1.5pt; PADDING-LEFT: 1.5pt; WIDTH: 87.3pt; PADDING-RIGHT: 1.5pt; BACKGROUND: #e8f3ff; HEIGHT: 20.5pt; BORDER-TOP: #e8e8e8 1pt solid; BORDER-RIGHT: #e8e8e8 1pt solid; PADDING-TOP: 1.5pt; mso-border-alt: solid #E8E8E8 .75pt" width=116>
<P style="TEXT-ALIGN: left; MARGIN: 0cm 0cm 12pt; LAYOUT-GRID-MODE: char; TEXT-AUTOSPACE: ideograph-numeric; WORD-BREAK: keep-all; mso-pagination: widow-orphan; mso-line-height-alt: 2.8pt" class=MsoNormal align=left>기타<o:p></o:p></TD>
<TD style="BORDER-BOTTOM: #e8e8e8 1pt solid; BORDER-LEFT: #e8e8e8 1pt solid; PADDING-BOTTOM: 1.5pt; PADDING-LEFT: 1.5pt; WIDTH: 404pt; PADDING-RIGHT: 1.5pt; BACKGROUND: white; HEIGHT: 20.5pt; BORDER-TOP: #e8e8e8 1pt solid; BORDER-RIGHT: #e8e8e8 1pt solid; PADDING-TOP: 1.5pt; mso-border-alt: solid #E8E8E8 .75pt" width=539>
<P style="TEXT-ALIGN: left; LINE-HEIGHT: 160%; MARGIN: 0cm 0cm 0pt; LAYOUT-GRID-MODE: char; TEXT-AUTOSPACE: ideograph-numeric; WORD-BREAK: keep-all; mso-pagination: widow-orphan" class=MsoNormal align=left>Hybriddivx 지원(video stream: .avi)<o:p></o:p>
<P style="TEXT-ALIGN: left; LINE-HEIGHT: 160%; MARGIN: 0cm 0cm 0pt; LAYOUT-GRID-MODE: char; TEXT-AUTOSPACE: ideograph-numeric; WORD-BREAK: keep-all; mso-pagination: widow-orphan" class=MsoNormal align=left>- Maximum resolution: 720x576.<o:p></o:p>
<P style="TEXT-ALIGN: left; LINE-HEIGHT: 160%; MARGIN: 0cm 0cm 0pt; LAYOUT-GRID-MODE: char; TEXT-AUTOSPACE: ideograph-numeric; WORD-BREAK: keep-all; mso-pagination: widow-orphan" class=MsoNormal align=left>- MEPG4 SP/ASP 지원.<o:p></o:p>
<P style="TEXT-ALIGN: left; LINE-HEIGHT: 160%; MARGIN: 0cm 0cm 0pt; LAYOUT-GRID-MODE: char; TEXT-AUTOSPACE: ideograph-numeric; WORD-BREAK: keep-all; mso-pagination: widow-orphan" class=MsoNormal align=left>- GPEL/GMC/Interlace 지원.<o:p></o:p>
<P style="TEXT-ALIGN: left; LINE-HEIGHT: 160%; MARGIN: 0cm 0cm 0pt; LAYOUT-GRID-MODE: char; TEXT-AUTOSPACE: ideograph-numeric; WORD-BREAK: keep-all; mso-pagination: widow-orphan" class=MsoNormal align=left>- Divx 3.x/4.x/5.x/6.x 지원<o:p></o:p>
<P style="TEXT-ALIGN: left; LINE-HEIGHT: 160%; MARGIN: 0cm 0cm 0pt; LAYOUT-GRID-MODE: char; TEXT-AUTOSPACE: ideograph-numeric; WORD-BREAK: keep-all; mso-pagination: widow-orphan" class=MsoNormal align=left>- MPEG4-SP(H/W), MPEG4-ASP(S/W)<o:p></o:p>
<P style="TEXT-ALIGN: left; LINE-HEIGHT: 160%; MARGIN: 0cm 0cm 0pt; LAYOUT-GRID-MODE: char; TEXT-AUTOSPACE: ideograph-numeric; WORD-BREAK: keep-all; mso-pagination: widow-orphan" class=MsoNormal align=left>H/W JPEG encoder / decoder 지원<o:p></o:p>
<P style="TEXT-ALIGN: left; LINE-HEIGHT: 160%; MARGIN: 0cm 0cm 0pt; LAYOUT-GRID-MODE: char; TEXT-AUTOSPACE: ideograph-numeric; WORD-BREAK: keep-all; mso-pagination: widow-orphan" class=MsoNormal align=left>H/W MFC decoder 지원(video raw stream: m4v, 263, 264, rcv)<o:p></o:p>
<P style="TEXT-ALIGN: left; LINE-HEIGHT: 160%; MARGIN: 0cm 0cm 0pt; LAYOUT-GRID-MODE: char; TEXT-AUTOSPACE: ideograph-numeric; WORD-BREAK: keep-all; mso-pagination: widow-orphan" class=MsoNormal align=left>OpenGL ES 1.1/2.0 지원<o:p></o:p>
<P style="TEXT-ALIGN: left; LINE-HEIGHT: 160%; MARGIN: 0cm 0cm 0pt; LAYOUT-GRID-MODE: char; TEXT-AUTOSPACE: ideograph-numeric; WORD-BREAK: keep-all; mso-pagination: widow-orphan" class=MsoNormal align=left>DShowFilter 지원<o:p></o:p>
<P style="TEXT-ALIGN: left; LINE-HEIGHT: 160%; MARGIN: 0cm 0cm 0pt; LAYOUT-GRID-MODE: char; TEXT-AUTOSPACE: ideograph-numeric; WORD-BREAK: keep-all; mso-pagination: widow-orphan" class=MsoNormal align=left>- FrameExtractFilter(video raw stream: m4v, 263, 264, rcv)<o:p></o:p>
<P style="TEXT-ALIGN: left; LINE-HEIGHT: 160%; MARGIN: 0cm 0cm 0pt; LAYOUT-GRID-MODE: char; TEXT-AUTOSPACE: ideograph-numeric; WORD-BREAK: keep-all; mso-pagination: widow-orphan" class=MsoNormal align=left>- SsapMp4Parser(mp4 files: mp4, mov, 3g2)<o:p></o:p>
<P style="TEXT-ALIGN: left; LINE-HEIGHT: 160%; MARGIN: 0cm 0cm 0pt; LAYOUT-GRID-MODE: char; TEXT-AUTOSPACE: ideograph-numeric; WORD-BREAK: keep-all; mso-pagination: widow-orphan" class=MsoNormal align=left>- MFCDecoderfilter<o:p></o:p>
<P style="TEXT-ALIGN: left; LINE-HEIGHT: 160%; MARGIN: 0cm 0cm 0pt; LAYOUT-GRID-MODE: char; TEXT-AUTOSPACE: ideograph-numeric; WORD-BREAK: keep-all; mso-pagination: widow-orphan" class=MsoNormal align=left>- AACDecoderFilter<o:p></o:p>
<P style="TEXT-ALIGN: left; MARGIN: 0cm 0cm 12pt; LAYOUT-GRID-MODE: char; TEXT-AUTOSPACE: ideograph-numeric; WORD-BREAK: keep-all; mso-pagination: widow-orphan; mso-line-height-alt: 2.8pt" class=MsoNormal align=left>Ethernet KITL 디버깅 지원<o:p></o:p></TD></TR>
<TR style="HEIGHT: 20.5pt; mso-yfti-irow: 6; mso-yfti-lastrow: yes">
<TD style="BORDER-BOTTOM: #e8e8e8 1pt solid; BORDER-LEFT: #e8e8e8 1pt solid; PADDING-BOTTOM: 1.5pt; PADDING-LEFT: 1.5pt; WIDTH: 87.3pt; PADDING-RIGHT: 1.5pt; BACKGROUND: #e8f3ff; HEIGHT: 20.5pt; BORDER-TOP: #e8e8e8 1pt solid; BORDER-RIGHT: #e8e8e8 1pt solid; PADDING-TOP: 1.5pt; mso-border-alt: solid #E8E8E8 .75pt" width=116>
<P style="TEXT-ALIGN: left; MARGIN: 0cm 0cm 12pt; LAYOUT-GRID-MODE: char; TEXT-AUTOSPACE: ideograph-numeric; WORD-BREAK: keep-all; mso-pagination: widow-orphan; mso-line-height-alt: 2.8pt" class=MsoNormal align=left>Windows Embedded CE6.0 R2 지원 <o:p></o:p></TD>
<TD style="BORDER-BOTTOM: #e8e8e8 1pt solid; BORDER-LEFT: #e8e8e8 1pt solid; PADDING-BOTTOM: 1.5pt; PADDING-LEFT: 1.5pt; WIDTH: 404pt; PADDING-RIGHT: 1.5pt; BACKGROUND: white; HEIGHT: 20.5pt; BORDER-TOP: #e8e8e8 1pt solid; BORDER-RIGHT: #e8e8e8 1pt solid; PADDING-TOP: 1.5pt; mso-border-alt: solid #E8E8E8 .75pt" width=539>
<P style="TEXT-ALIGN: left; LINE-HEIGHT: 160%; MARGIN: 0cm 0cm 0pt; LAYOUT-GRID-MODE: char; TEXT-AUTOSPACE: ideograph-numeric; WORD-BREAK: keep-all; mso-pagination: widow-orphan" class=MsoNormal align=left>Windows Embedded CE 6.0 R2는 32-bit RTOS로서 다양한 아키텍쳐(ARM, x86, MIPS, SH)를 지원한다. R2 버전에서의 개선 내용은 다음과 같다.<o:p></o:p>
<P style="TEXT-ALIGN: left; LINE-HEIGHT: 160%; MARGIN: 0cm 0cm 0pt; LAYOUT-GRID-MODE: char; TEXT-AUTOSPACE: ideograph-numeric; WORD-BREAK: keep-all; mso-pagination: widow-orphan" class=MsoNormal align=left>(1) 새로운 드라이버의 추가<o:p></o:p>
<P style="TEXT-ALIGN: left; LINE-HEIGHT: 160%; MARGIN: 0cm 0cm 0pt; LAYOUT-GRID-MODE: char; TEXT-AUTOSPACE: ideograph-numeric; WORD-BREAK: keep-all; mso-pagination: widow-orphan" class=MsoNormal align=left>- Serial ATA Disk Driver<o:p></o:p>
<P style="TEXT-ALIGN: left; LINE-HEIGHT: 160%; MARGIN: 0cm 0cm 0pt; LAYOUT-GRID-MODE: char; TEXT-AUTOSPACE: ideograph-numeric; WORD-BREAK: keep-all; mso-pagination: widow-orphan" class=MsoNormal align=left>- Secure Digital 2.0 Host Controller Driver<o:p></o:p>
<P style="TEXT-ALIGN: left; LINE-HEIGHT: 160%; MARGIN: 0cm 0cm 0pt; LAYOUT-GRID-MODE: char; TEXT-AUTOSPACE: ideograph-numeric; WORD-BREAK: keep-all; mso-pagination: widow-orphan" class=MsoNormal align=left>- 새로운 Flash Driver<o:p></o:p>
<P style="TEXT-ALIGN: left; LINE-HEIGHT: 160%; MARGIN: 0cm 0cm 0pt; LAYOUT-GRID-MODE: char; TEXT-AUTOSPACE: ideograph-numeric; WORD-BREAK: keep-all; mso-pagination: widow-orphan" class=MsoNormal align=left>(2) 추가된 BSP<o:p></o:p>
<P style="TEXT-ALIGN: left; LINE-HEIGHT: 160%; MARGIN: 0cm 0cm 0pt; LAYOUT-GRID-MODE: char; TEXT-AUTOSPACE: ideograph-numeric; WORD-BREAK: keep-all; mso-pagination: widow-orphan" class=MsoNormal align=left>- HP/Compaq t5530(VIA x86-based BSP)<o:p></o:p>
<P style="TEXT-ALIGN: left; LINE-HEIGHT: 160%; MARGIN: 0cm 0cm 0pt; LAYOUT-GRID-MODE: char; TEXT-AUTOSPACE: ideograph-numeric; WORD-BREAK: keep-all; mso-pagination: widow-orphan" class=MsoNormal align=left>- ST7109 BSP(SH4-based BSP)<o:p></o:p>
<P style="TEXT-ALIGN: left; LINE-HEIGHT: 160%; MARGIN: 0cm 0cm 0pt; LAYOUT-GRID-MODE: char; TEXT-AUTOSPACE: ideograph-numeric; WORD-BREAK: keep-all; mso-pagination: widow-orphan" class=MsoNormal align=left>- Marvell PXA270 BSP.<o:p></o:p>
<P style="TEXT-ALIGN: left; LINE-HEIGHT: 160%; MARGIN: 0cm 0cm 0pt; LAYOUT-GRID-MODE: char; TEXT-AUTOSPACE: ideograph-numeric; WORD-BREAK: keep-all; mso-pagination: widow-orphan" class=MsoNormal align=left>(3) 새로운 VoIP 솔루션<o:p></o:p>
<P style="TEXT-ALIGN: left; LINE-HEIGHT: 160%; MARGIN: 0cm 0cm 0pt; LAYOUT-GRID-MODE: char; TEXT-AUTOSPACE: ideograph-numeric; WORD-BREAK: keep-all; mso-pagination: widow-orphan" class=MsoNormal align=left>- The Homescreen Application<o:p></o:p>
<P style="TEXT-ALIGN: left; LINE-HEIGHT: 160%; MARGIN: 0cm 0cm 0pt; LAYOUT-GRID-MODE: char; TEXT-AUTOSPACE: ideograph-numeric; WORD-BREAK: keep-all; mso-pagination: widow-orphan" class=MsoNormal align=left>- The Phone Application<o:p></o:p>
<P style="TEXT-ALIGN: left; LINE-HEIGHT: 160%; MARGIN: 0cm 0cm 0pt; LAYOUT-GRID-MODE: char; TEXT-AUTOSPACE: ideograph-numeric; WORD-BREAK: keep-all; mso-pagination: widow-orphan" class=MsoNormal align=left>- The Settings Application<o:p></o:p>
<P style="TEXT-ALIGN: left; LINE-HEIGHT: 160%; MARGIN: 0cm 0cm 0pt; LAYOUT-GRID-MODE: char; TEXT-AUTOSPACE: ideograph-numeric; WORD-BREAK: keep-all; mso-pagination: widow-orphan" class=MsoNormal align=left>- The Bootstrap Application<o:p></o:p>
<P style="TEXT-ALIGN: left; LINE-HEIGHT: 160%; MARGIN: 0cm 0cm 0pt; LAYOUT-GRID-MODE: char; TEXT-AUTOSPACE: ideograph-numeric; WORD-BREAK: keep-all; mso-pagination: widow-orphan" class=MsoNormal align=left>(4) 기타<o:p></o:p>
<P style="TEXT-ALIGN: left; LINE-HEIGHT: 160%; MARGIN: 0cm 0cm 0pt; LAYOUT-GRID-MODE: char; TEXT-AUTOSPACE: ideograph-numeric; WORD-BREAK: keep-all; mso-pagination: widow-orphan" class=MsoNormal align=left>- exFat<o:p></o:p>
<P style="TEXT-ALIGN: left; LINE-HEIGHT: 160%; MARGIN: 0cm 0cm 0pt; LAYOUT-GRID-MODE: char; TEXT-AUTOSPACE: ideograph-numeric; WORD-BREAK: keep-all; mso-pagination: widow-orphan" class=MsoNormal align=left>- Digital Rights Management<o:p></o:p>
<P style="TEXT-ALIGN: left; LINE-HEIGHT: 160%; MARGIN: 0cm 0cm 0pt; LAYOUT-GRID-MODE: char; TEXT-AUTOSPACE: ideograph-numeric; WORD-BREAK: keep-all; mso-pagination: widow-orphan" class=MsoNormal align=left>- Cellular, Bluetooth, 80211<o:p></o:p>
<P style="TEXT-ALIGN: left; LINE-HEIGHT: 160%; MARGIN: 0cm 0cm 0pt; LAYOUT-GRID-MODE: char; TEXT-AUTOSPACE: ideograph-numeric; WORD-BREAK: keep-all; mso-pagination: widow-orphan" class=MsoNormal align=left>- MFC8<o:p></o:p>
<P style="TEXT-ALIGN: left; LINE-HEIGHT: 160%; MARGIN: 0cm 0cm 0pt; LAYOUT-GRID-MODE: char; TEXT-AUTOSPACE: ideograph-numeric; WORD-BREAK: keep-all; mso-pagination: widow-orphan" class=MsoNormal align=left>(5) 개발환경<o:p></o:p>
<P style="TEXT-ALIGN: left; LINE-HEIGHT: 160%; MARGIN: 0cm 0cm 0pt; LAYOUT-GRID-MODE: char; TEXT-AUTOSPACE: ideograph-numeric; WORD-BREAK: keep-all; mso-pagination: widow-orphan" class=MsoNormal align=left>- 개발 툴이 Visual Studio 2005에 통합(단일환경에서 시스템과 응용프로그램 개발 가능)<o:p></o:p>
<P style="TEXT-ALIGN: left; LINE-HEIGHT: 160%; MARGIN: 0cm 0cm 0pt; LAYOUT-GRID-MODE: char; TEXT-AUTOSPACE: ideograph-numeric; WORD-BREAK: keep-all; mso-pagination: widow-orphan" class=MsoNormal align=left>- ARM device emulator 제공<o:p></o:p>
<P style="TEXT-ALIGN: left; LINE-HEIGHT: 160%; MARGIN: 0cm 0cm 0pt; LAYOUT-GRID-MODE: char; TEXT-AUTOSPACE: ideograph-numeric; WORD-BREAK: keep-all; mso-pagination: widow-orphan" class=MsoNormal align=left>- Visual Studio 2005의 강력한 에디터 기능 사용<o:p></o:p>
<P style="TEXT-ALIGN: left; LINE-HEIGHT: 160%; MARGIN: 0cm 0cm 12pt; LAYOUT-GRID-MODE: char; TEXT-AUTOSPACE: ideograph-numeric; WORD-BREAK: keep-all; mso-pagination: widow-orphan" class=MsoNormal align=left>- 레지스트리, OS 이미지 에디터 추가<o:p></o:p></TD></TR></TBODY></TABLE>

<DIV style="BORDER-RIGHT: #919191 1px solid; PADDING-RIGHT: 5px; BORDER-TOP: #919191 1px solid; PADDING-LEFT: 5px; PADDING-BOTTOM: 5px; BORDER-LEFT: #919191 1px solid; PADDING-TOP: 5px; BORDER-BOTTOM: #919191 1px solid; BACKGROUND-COLOR: #e4e4e4">임베디드 리눅스 응용 S/W </DIV> 1. 하드웨어 가속 프로그램 실행(MFC) 하드웨어 가속기능을 이용하여 H.264/MPEG4/H.263/VC1 포맷의 파일을 30fps로 구동이 가능합니다. 카메라 인터페이스로 들어온 영상을 실시간으로 H.264로 압축하여 저장이 가능합니다. LCD 화면에 동시에 서로 다른 4개의 영상을 출력하더라도 CPU 점유율에 거의 영향이 없습니다. <IMG name='target_resize_image[]' onclick='image_window(this)' style='cursor:pointer;' src="/_data/_editor/1004/3536717426_364c65e7_2.jpg" >
2.  X-Window<?xml:namespace prefix = o ns = "urn:schemas-microsoft-com:office:office" /><o:p></o:p>X window 상에서 동작하는 여러가지 응용프로그램을 실행시킬 수 있습니다. Webbrowser, xterm뿐만 아니라 tftp, nfs, samba, minicom등의 개발환경을 구축하여 미니 컴퓨터로도 사용이 가능합니다. <IMG name='target_resize_image[]' onclick='image_window(this)' style='cursor:pointer;' src="/_data/_editor/1004/3536717426_ad539fab_3.jpg" >
3. Direct FB DirectFB를 이용하여 800x480 LCD위에 200마리의 펭귄을 디스플레이하는 예제입니다.<o:p></o:p><IMG name='target_resize_image[]' onclick='image_window(this)' style='cursor:pointer;' src="/_data/_editor/1004/3536717426_fcf6eab2_4.jpg" >
<DIV style="BORDER-RIGHT: #919191 1px solid; PADDING-RIGHT: 5px; BORDER-TOP: #919191 1px solid; PADDING-LEFT: 5px; PADDING-BOTTOM: 5px; BORDER-LEFT: #919191 1px solid; PADDING-TOP: 5px; BORDER-BOTTOM: #919191 1px solid; BACKGROUND-COLOR: #e4e4e4">Android 응용 S/W </DIV>
<P class=MsoNormal style="MARGIN: 0cm 0cm 0pt; WORD-BREAK: keep-all; TEXT-INDENT: 4.9pt; LINE-HEIGHT: 150%; TEXT-AUTOSPACE: ideograph-numeric; TEXT-ALIGN: left; mso-pagination: widow-orphan; mso-char-indent-count: .5" align=left>Android Platform <o:p></o:p> 1. Android Home <IMG name='target_resize_image[]' onclick='image_window(this)' style='cursor:pointer;' src="/_data/_editor/1004/3536717426_65cf4515_2040968486_aeafdaf7_B0B3BFE41.jpg" > <SPAN lang=EN-US style="FONT-SIZE: 10pt; FONT-FAMILY: 굴림; mso-bidi-font-weight: bold; mso-bidi-font-size: 11.0pt; mso-bidi-font-family: '맑은 고딕'; mso-font-kerning: 0pt; mso-ansi-language: EN-US; mso-fareast-language: KO; mso-bidi-language: AR-SA">2.<SPAN lang=EN-US style="FONT-SIZE: 7pt; FONT-FAMILY: 굴림; mso-bidi-font-weight: bold; mso-bidi-font-size: 11.0pt; mso-bidi-font-family: 'Times New Roman'; mso-font-kerning: 0pt; mso-ansi-language: EN-US; mso-fareast-language: KO; mso-bidi-language: AR-SA"> <SPAN lang=EN-US style="FONT-SIZE: 10pt; FONT-FAMILY: 굴림; mso-bidi-font-weight: bold; mso-bidi-font-size: 11.0pt; mso-bidi-font-family: 굴림; mso-font-kerning: 0pt; mso-ansi-language: EN-US; mso-fareast-language: KO; mso-bidi-language: AR-SA">Gallery(Video Player) <IMG name='target_resize_image[]' onclick='image_window(this)' style='cursor:pointer;' src="/_data/_editor/1004/3536717426_dd0b0f64_2040968486_f73aa5fa_B0B3BFE44.jpg" > <SPAN lang=EN-US style="FONT-SIZE: 10pt; FONT-FAMILY: 굴림; mso-bidi-font-weight: bold; mso-bidi-font-size: 11.0pt; mso-bidi-font-family: 굴림; mso-font-kerning: 0pt; mso-ansi-language: EN-US; mso-fareast-language: KO; mso-bidi-language: AR-SA">3.<SPAN lang=EN-US style="FONT-SIZE: 7pt; FONT-FAMILY: 굴림; mso-bidi-font-weight: bold; mso-bidi-font-size: 11.0pt; mso-bidi-font-family: 'Times New Roman'; mso-font-kerning: 0pt; mso-ansi-language: EN-US; mso-fareast-language: KO; mso-bidi-language: AR-SA"> <SPAN lang=EN-US style="FONT-SIZE: 10pt; FONT-FAMILY: 굴림; mso-bidi-font-weight: bold; mso-bidi-font-size: 11.0pt; mso-bidi-font-family: 굴림; mso-font-kerning: 0pt; mso-ansi-language: EN-US; mso-fareast-language: KO; mso-bidi-language: AR-SA">Web Browser (Wifi <SPAN style="FONT-SIZE: 10pt; FONT-FAMILY: 굴림; mso-bidi-font-weight: bold; mso-bidi-font-size: 11.0pt; mso-bidi-font-family: 굴림; mso-font-kerning: 0pt; mso-ansi-language: EN-US; mso-fareast-language: KO; mso-bidi-language: AR-SA">무선랜, Ethernet) <IMG name='target_resize_image[]' onclick='image_window(this)' style='cursor:pointer;' src="/_data/_editor/1004/3536717426_0d8c98a6_2040968486_9b93ca0b_B0B3BFE42.jpg" > 4. <SPAN lang=EN-US style="FONT-SIZE: 10pt; FONT-FAMILY: 굴림; mso-bidi-font-weight: bold; mso-bidi-font-size: 11.0pt; mso-bidi-font-family: 굴림; mso-font-kerning: 0pt; mso-ansi-language: EN-US; mso-fareast-language: KO; mso-bidi-language: AR-SA">Google MAP <IMG name='target_resize_image[]' onclick='image_window(this)' style='cursor:pointer;' src="/_data/_editor/1004/3536717426_f40d2a95_2040968486_a8613464_B0B3BFE43.jpg" > <SPAN lang=EN-US style="FONT-SIZE: 10pt; FONT-FAMILY: 굴림; mso-bidi-font-weight: bold; mso-bidi-font-size: 11.0pt; mso-bidi-font-family: 굴림; mso-font-kerning: 0pt; mso-ansi-language: EN-US; mso-fareast-language: KO; mso-bidi-language: AR-SA">
5. Image Viewer <o:p></o:p><IMG name='target_resize_image[]' onclick='image_window(this)' style='cursor:pointer;' src="/_data/_editor/1004/3536717426_240edb5c_2040968486_a07312e6_B0B3BFE45.jpg" > <SPAN lang=EN-US style="FONT-SIZE: 10pt; FONT-FAMILY: 굴림; mso-bidi-font-weight: bold; mso-bidi-font-size: 11.0pt; mso-bidi-font-family: 굴림; mso-font-kerning: 0pt; mso-ansi-language: EN-US; mso-fareast-language: KO; mso-bidi-language: AR-SA">6. MP3 player <IMG name='target_resize_image[]' onclick='image_window(this)' style='cursor:pointer;' src="/_data/_editor/1004/3536717426_c7c86c05_2040968486_47c7c63b_B0B3BFE46.jpg" > 7. Games <IMG name='target_resize_image[]' onclick='image_window(this)' style='cursor:pointer;' src="/_data/_editor/1004/3536717426_e93802fb_2040968486_e6da347b_B0B3BFE47.jpg" > 8. <SPAN lang=EN-US style="FONT-SIZE: 10pt; FONT-FAMILY: 굴림; mso-bidi-font-weight: bold; mso-bidi-font-size: 11.0pt; mso-bidi-font-family: 굴림; mso-font-kerning: 0pt; mso-ansi-language: EN-US; mso-fareast-language: KO; mso-bidi-language: AR-SA">Application Market <IMG name='target_resize_image[]' onclick='image_window(this)' style='cursor:pointer;' src="/_data/_editor/1004/3536717426_7af05e17_2040968486_0126b638_B0B3BFE48.jpg" > 9. JNI를 이용한 LED제어 <o:p></o:p><IMG name='target_resize_image[]' onclick='image_window(this)' style='cursor:pointer;' src="/_data/_editor/1004/3536717426_a01caeaa_2040968486_c4b99fa0_B0B3BFE49.jpg" >
<DIV style="BORDER-RIGHT: #919191 1px solid; PADDING-RIGHT: 5px; BORDER-TOP: #919191 1px solid; PADDING-LEFT: 5px; PADDING-BOTTOM: 5px; BORDER-LEFT: #919191 1px solid; PADDING-TOP: 5px; BORDER-BOTTOM: #919191 1px solid; BACKGROUND-COLOR: #e4e4e4">Windows CE.net 6.0 응용 S/W </DIV> 1. 카메라 드라이버 및 응용프로그램 - 200M CIS 카메라 센서 드라이버 제공 <IMG name='target_resize_image[]' onclick='image_window(this)' style='cursor:pointer;' src="/_data/_editor/1004/3536717426_10bfffcb_2040968486_b3927f33_app1.jpg" >  2. LED 드라이버 및 응용프로그램 <IMG name='target_resize_image[]' onclick='image_window(this)' style='cursor:pointer;' src="/_data/_editor/1004/3536717426_f386acf1_2040968486_50236e02_app2.jpg" > 3. FND 드라이버 및 응용프로그램 <IMG name='target_resize_image[]' onclick='image_window(this)' style='cursor:pointer;' src="/_data/_editor/1004/3536717426_e8756746_2040968486_0fd40598_app3.jpg" > 4. .NET Compact Framework 2.0/3.5 지원 <IMG name='target_resize_image[]' onclick='image_window(this)' style='cursor:pointer;' src="/_data/_editor/1004/3536717426_44aaac74_2040968486_82dccf62_app4.jpg" > 5. ActiveSync 및 Remote Tool 기능 지원  - Remote File Viewer  - Remote Heap Walker  - Remote Process Viewer  - Remote Registry Editor  - Remote Spy  - Remote Zoom In <o:p></o:p><IMG name='target_resize_image[]' onclick='image_window(this)' style='cursor:pointer;' src="/_data/_editor/1004/3536717426_bea7d411_2040968486_b2b965c3_app5.jpg" > 6. Ethernet 드라이버 및 Internet Explorer 6.0 지원 <o:p></o:p> - SMSC LAN91C11 이더넷 컨트롤러 드라이버 <IMG name='target_resize_image[]' onclick='image_window(this)' style='cursor:pointer;' src="/_data/_editor/1004/3536717426_c970a958_2040968486_98051aa2_app6.jpg" > 7. 미디어 플레이어 지원 <IMG name='target_resize_image[]' onclick='image_window(this)' style='cursor:pointer;' src="/_data/_editor/1004/3536717426_768190fd_2040968486_95d415f1_app7.jpg" > 8. Windows Mobile 및 Windows Embedded CE 에뮬레이터 지원 - 에뮬레이터를 통한 응용프로그램 개발 <IMG name='target_resize_image[]' onclick='image_window(this)' style='cursor:pointer;' src="/_data/_editor/1004/3536717426_8396b551_2040968486_e0f61ab2_app8.jpg" > 9. Word Viewer, PPT Viewer, Messenger, Exel Viewer, PDF Viewer, Image Viewer 등을 제공 <IMG name='target_resize_image[]' onclick='image_window(this)' style='cursor:pointer;' src="/_data/_editor/1004/3536717426_9d445219_2040968486_2c5f38cb_app9.jpg" > 10. 지상파 DMB 드라이버 및 응용프로그램 지원  - 가온전자 DMB 모듈 사용(GDM-801, HW가속)  - NEXTREAMING 플레이어 사용(TV, Radio) <IMG name='target_resize_image[]' onclick='image_window(this)' style='cursor:pointer;' src="/_data/_editor/1004/3536717426_21835c4d_2040968486_0e6863bb_app10.jpg" >

1. 하드웨어 가속 프로그램 실행(MFC) 하드웨어 가속기능을 이용하여 H.264/MPEG4/H.263/VC1 포맷의 파일을 30fps로 구동이 가능합니다. 카메라 인터페이스로 들어온 영상을 실시간으로 H.264로 압축하여 저장이 가능합니다. LCD 화면에 동시에 서로 다른 4개의 영상을 출력하더라도 CPU 점유율에 거의 영향이 없습니다. <IMG name='target_resize_image[]' onclick='image_window(this)' style='cursor:pointer;' src="http://huins.designpixel.or.kr/_data/_editor/1004/3536717426_19165c63_2040968486_129756b4_ex8-1.jpg" > <IMG name='target_resize_image[]' onclick='image_window(this)' style='cursor:pointer;' src="http://huins.designpixel.or.kr/_data/_editor/1004/3536717426_21cc7d3e_2040968486_800bfdf3_ex8-2.jpg" >
2.  X-Window<?xml:namespace prefix = o ns = "urn:schemas-microsoft-com:office:office" /><o:p></o:p>X window 상에서 동작하는 여러가지 응용프로그램을 실행시킬 수 있습니다. Webbrowser, xterm뿐만 아니라 tftp, nfs, samba, minicom등의 개발환경을 구축하여 미니 컴퓨터로도 사용이 가능합니다. <IMG name='target_resize_image[]' onclick='image_window(this)' style='cursor:pointer;' src="http://huins.designpixel.or.kr/_data/_editor/1004/3536717426_a3c65b63_2040968486_57fac0c1_ex9-1.jpg" > <IMG name='target_resize_image[]' onclick='image_window(this)' style='cursor:pointer;' src="http://huins.designpixel.or.kr/_data/_editor/1004/3536717426_d3d418ea_2040968486_6a697e43_ex9-2.jpg" >
3. Direct FB DirectFB를 이용하여 800x480 LCD위에 200마리의 펭귄을 디스플레이하는 예제입니다.<o:p></o:p><IMG name='target_resize_image[]' onclick='image_window(this)' style='cursor:pointer;' src="http://huins.designpixel.or.kr/_data/_editor/1004/3536717426_ada6dc45_2040968486_350367bd_ex10.jpg" >
<P style="TEXT-ALIGN: left; LINE-HEIGHT: 150%; TEXT-INDENT: 4.9pt; MARGIN: 0cm 0cm 0pt; TEXT-AUTOSPACE: ideograph-numeric; WORD-BREAK: keep-all; mso-pagination: widow-orphan; mso-char-indent-count: .5" class=MsoNormal align=left>Android Platform <o:p></o:p> 1. Android Home <IMG name='target_resize_image[]' onclick='image_window(this)' style='cursor:pointer;' src="http://huins.designpixel.or.kr/_data/_editor/1004/3536717426_65cf4515_2040968486_aeafdaf7_B0B3BFE41.jpg" > <SPAN style="FONT-FAMILY: 굴림; FONT-SIZE: 10pt; mso-bidi-font-family: '맑은 고딕'; mso-font-kerning: 0pt; mso-bidi-font-size: 11.0pt; mso-ansi-language: EN-US; mso-fareast-language: KO; mso-bidi-language: AR-SA; mso-bidi-font-weight: bold" lang=EN-US>2.<SPAN style="FONT-FAMILY: 굴림; FONT-SIZE: 7pt; mso-bidi-font-family: 'Times New Roman'; mso-font-kerning: 0pt; mso-bidi-font-size: 11.0pt; mso-ansi-language: EN-US; mso-fareast-language: KO; mso-bidi-language: AR-SA; mso-bidi-font-weight: bold" lang=EN-US> <SPAN style="FONT-FAMILY: 굴림; FONT-SIZE: 10pt; mso-bidi-font-family: 굴림; mso-font-kerning: 0pt; mso-bidi-font-size: 11.0pt; mso-ansi-language: EN-US; mso-fareast-language: KO; mso-bidi-language: AR-SA; mso-bidi-font-weight: bold" lang=EN-US>Gallery(Video Player) <IMG name='target_resize_image[]' onclick='image_window(this)' style='cursor:pointer;' src="http://huins.designpixel.or.kr/_data/_editor/1004/3536717426_dd0b0f64_2040968486_f73aa5fa_B0B3BFE44.jpg" > <SPAN style="FONT-FAMILY: 굴림; FONT-SIZE: 10pt; mso-bidi-font-family: 굴림; mso-font-kerning: 0pt; mso-bidi-font-size: 11.0pt; mso-ansi-language: EN-US; mso-fareast-language: KO; mso-bidi-language: AR-SA; mso-bidi-font-weight: bold" lang=EN-US>3.<SPAN style="FONT-FAMILY: 굴림; FONT-SIZE: 7pt; mso-bidi-font-family: 'Times New Roman'; mso-font-kerning: 0pt; mso-bidi-font-size: 11.0pt; mso-ansi-language: EN-US; mso-fareast-language: KO; mso-bidi-language: AR-SA; mso-bidi-font-weight: bold" lang=EN-US> <SPAN style="FONT-FAMILY: 굴림; FONT-SIZE: 10pt; mso-bidi-font-family: 굴림; mso-font-kerning: 0pt; mso-bidi-font-size: 11.0pt; mso-ansi-language: EN-US; mso-fareast-language: KO; mso-bidi-language: AR-SA; mso-bidi-font-weight: bold" lang=EN-US>Web Browser (Wifi <SPAN style="FONT-FAMILY: 굴림; FONT-SIZE: 10pt; mso-bidi-font-family: 굴림; mso-font-kerning: 0pt; mso-bidi-font-size: 11.0pt; mso-ansi-language: EN-US; mso-fareast-language: KO; mso-bidi-language: AR-SA; mso-bidi-font-weight: bold">무선랜, Ethernet) <IMG name='target_resize_image[]' onclick='image_window(this)' style='cursor:pointer;' src="http://huins.designpixel.or.kr/_data/_editor/1004/3536717426_0d8c98a6_2040968486_9b93ca0b_B0B3BFE42.jpg" > 4. <SPAN style="FONT-FAMILY: 굴림; FONT-SIZE: 10pt; mso-bidi-font-family: 굴림; mso-font-kerning: 0pt; mso-bidi-font-size: 11.0pt; mso-ansi-language: EN-US; mso-fareast-language: KO; mso-bidi-language: AR-SA; mso-bidi-font-weight: bold" lang=EN-US>Google MAP <IMG name='target_resize_image[]' onclick='image_window(this)' style='cursor:pointer;' src="http://huins.designpixel.or.kr/_data/_editor/1004/3536717426_f40d2a95_2040968486_a8613464_B0B3BFE43.jpg" > <SPAN style="FONT-FAMILY: 굴림; FONT-SIZE: 10pt; mso-bidi-font-family: 굴림; mso-font-kerning: 0pt; mso-bidi-font-size: 11.0pt; mso-ansi-language: EN-US; mso-fareast-language: KO; mso-bidi-language: AR-SA; mso-bidi-font-weight: bold" lang=EN-US>
5. Image Viewer <o:p></o:p><IMG name='target_resize_image[]' onclick='image_window(this)' style='cursor:pointer;' src="http://huins.designpixel.or.kr/_data/_editor/1004/3536717426_240edb5c_2040968486_a07312e6_B0B3BFE45.jpg" > <SPAN style="FONT-FAMILY: 굴림; FONT-SIZE: 10pt; mso-bidi-font-family: 굴림; mso-font-kerning: 0pt; mso-bidi-font-size: 11.0pt; mso-ansi-language: EN-US; mso-fareast-language: KO; mso-bidi-language: AR-SA; mso-bidi-font-weight: bold" lang=EN-US>6. MP3 player <IMG name='target_resize_image[]' onclick='image_window(this)' style='cursor:pointer;' src="http://huins.designpixel.or.kr/_data/_editor/1004/3536717426_c7c86c05_2040968486_47c7c63b_B0B3BFE46.jpg" > 7. Games <IMG name='target_resize_image[]' onclick='image_window(this)' style='cursor:pointer;' src="http://huins.designpixel.or.kr/_data/_editor/1004/3536717426_e93802fb_2040968486_e6da347b_B0B3BFE47.jpg" > 8. <SPAN style="FONT-FAMILY: 굴림; FONT-SIZE: 10pt; mso-bidi-font-family: 굴림; mso-font-kerning: 0pt; mso-bidi-font-size: 11.0pt; mso-ansi-language: EN-US; mso-fareast-language: KO; mso-bidi-language: AR-SA; mso-bidi-font-weight: bold" lang=EN-US>Application Market <IMG name='target_resize_image[]' onclick='image_window(this)' style='cursor:pointer;' src="http://huins.designpixel.or.kr/_data/_editor/1004/3536717426_7af05e17_2040968486_0126b638_B0B3BFE48.jpg" > 9. JNI를 이용한 LED제어 <o:p></o:p><IMG name='target_resize_image[]' onclick='image_window(this)' style='cursor:pointer;' src="http://huins.designpixel.or.kr/_data/_editor/1004/3536717426_a01caeaa_2040968486_c4b99fa0_B0B3BFE49.jpg" >
