Cortex M3-NXP

NXP LPC 1768(100Mhz)

USB2.0 Full Speed Interface

10/100M Speed Ethernet Interface

Dual Serial Ports

Dual CAN Ports

2.83인치 LCD Display

MicroSD Card Connector

Joystick, Speaker, Potentiometer

<IMG name='target_resize_image[]' onclick='image_window(this)' style='cursor:pointer;' style="VERTICAL-ALIGN: middle; CURSOR: pointer" onclick=image_window(this) name=target_resize_image[] src="/_data/_editor/1003/2040968486_161da8fd_square_arrow.gif" tmp_height="16" tmp_width="14" > 개요
저전력, 고성능, 저가격의 CortexM3 마이크로 컨트롤러를 사용한 ARM_CortexM3_NXP 보드는 NXP사의 LPC1768 MCU를 이용하여 다양한 어플리케이션을 테스트 하고 실험할 수 있습니다. 32BIT 100MHz의 속도로 TFTLCD, Ethernet, USB, CAN, UART, SD Card, 센서, 모터 Joystick 등의 장치들을 이용할 수 있도록하였으며, 다양한 어플리케이션을 개발할 수 있는 장비입니다. 이 제품은 ARM ATC Cortex M3 교육 인증 플랫폼입니다.<?xml:namespace prefix = o ns = "urn:schemas-microsoft-com:office:office" /><o:p></o:p> <IMG name='target_resize_image[]' onclick='image_window(this)' style='cursor:pointer;' src="/_data/_editor/1004/3536717426_b4fcb500_cortex_1.jpg" > <IMG name='target_resize_image[]' onclick='image_window(this)' style='cursor:pointer;' style="VERTICAL-ALIGN: middle; CURSOR: pointer" onclick=image_window(this) name=target_resize_image[] src="/_data/_editor/1003/2040968486_161da8fd_square_arrow.gif" tmp_height="16" tmp_width="14" > 제품소개
<o:p>
USB 2.0 Full Speed Interface<o:p></o:p>
USB 통신을 필요로 하는 어플리케이션에 대해 보드에 있는 USB Client, USB-OTG, USB Host, USB-to-UART 표준 커넥터를 사용할 수 있으며, 이들은 D+ D- Jumper pin setting을 통해 장치를 Enable 또는 Disable 할 수 있습니다. 또한 VBUS Jumper pin setting을 통해 USB Client에서 5V 전원을 입력 받을 수 있습니다.<o:p></o:p>
10/100M Ethernet Interface<o:p></o:p>
10/100Mbps IEEE 802.3 Ethernet Interface는 TCP/IP 또는 UDP 통신을 할 수 있습니다. 고정 IP 또는 DHCP를 이용한 자동 IP를 설정하여 HTML을 이용하여 Web 기반 제어시스템을 구현 할 수 있습니다.<o:p></o:p>
Dual Serial Ports<o:p></o:p>
RS232 통신을 위한 표준 DB9 커넥터가 두 개 제공되며, 어플리케이션에서 이 포트를 둘 모두 사용하거나 하나만 사용할 수 있습니다.<o:p></o:p>
Dual CAN Ports<o:p></o:p>
CAN 통신을 필요로 하는 어플리케이션을 위해 DB9 커넥터가 두 개 제공되며, 어플리케이션에서 이 포트 둘 모두 사용하거나 하나만 사용할 수 있습니다. <o:p></o:p>
LCD Display<o:p></o:p>
탈<SPAN style="LINE-HEIGHT: 150%; FONT-FAMILY: 굴림; COLOR: black; FONT-SIZE: 9pt; mso-bidi-font-family: 굴림; mso-font-kerning: 0pt; mso-ascii-font-family: '맑은 고딕'; mso-ascii-theme-font: minor-latin; mso-hansi-font-family: '맑은 고딕'; mso-hansi-theme-font: minor-latin">▪부착 가능한 2.83” 240*320 QVGA TFT color LCD를 사용하여, 실시간 디버그 정보나 프로그램 상태 메시지를 표시하는 데 사용할 수 있습니다.<o:p></o:p>
MicroSD Card Connector<o:p></o:p>
MicroSD Card에 액세스하는 어플리케이션 개발을 위한 커넥터를 제공하며 2GB 용량까지 사용가능합니다.<o:p></o:p>
Joystick<o:p></o:p>
5-position 조이스틱이 제공되며, 어플리케이션에서 Joystick을 사용할 수 있습니다.<o:p></o:p>
Speaker Connector<o:p></o:p>
LPC1768 디바이스의 D/A 출력이 LF(Loop Filter) Amplifier에서 증폭되어 스피커에 연결되어 있습니다. 사용자는 사운드를 발생할 수 있고, J6 jumper pin setting을 통해 장치를 Enable 또는 Disable 할 수 있습니다.<o:p></o:p>
Potentiometer (Voltage Control for ADC Input)<o:p></o:p>
LPC1768 디바이스의 Analog to Digital 출력 특성을 테스트하기 위해 조정 가능한 아날로그 전압 소스가 보드 위에 존재합니다. Jumper pin setting을 통해 장치를 Enable 또는 Disable 할 수 있습니다.<o:p></o:p>
JTAG and Cortex/ETM Download and Debug<o:p></o:p>
ARM Cortex-M3 NXP 보드는 JTAG 인터페이스와 Cortex Debug + ETM 인터페이스 둘 다를 제공합니다. ULINK2 USB-JTAG 어댑터를 함께 사용하면 Serial Wired JTAG 인터페이스는 flash programming과 debugging을 사용할 수 있습니다. ULINK Pro 어댑터를 사용하면 Cortex Debug/ETM 인터페이스로 flash programming과 instruction trace debugging을 사용할 수 있습니다.<o:p></o:p>
확장 커넥터<o:p></o:p>
ARM Cortex-M3 NXP 보드는 확장 커넥터를 제공합니다. 사용자는 이 커넥터를 통해 ㈜휴인스에서 제공하는 다양한 확장 모듈을 연결해서 하드웨어와 소프트웨어 개발에 활용할 수 있습니다. 확장 모듈에는 FND 모듈, Keypad 모듈, Sensor 모듈, Stepmotor 모듈, Servomotor 모듈이 있습니다.<o:p></o:p>
 </o:p>
<IMG name='target_resize_image[]' onclick='image_window(this)' style='cursor:pointer;' style="VERTICAL-ALIGN: middle; CURSOR: pointer" onclick=image_window(this) name=target_resize_image[] src="/_data/_editor/1003/2040968486_161da8fd_square_arrow.gif" tmp_height="16" tmp_width="14" > 특징

<o:p></o:p><o:p>

ARM Cortex-M3는 다양한 통신 장치를 연결할 수 있도록 구현되어 있습니다. RS232, CAN, USB 2.0 Client, USB 2.0 Host, USB 2.0 OTG, 10/100 Ethernet 등의 통신을 구현하여 다양한 통신을 할 수 있습니다.<o:p></o:p>
<o:p> </o:p>

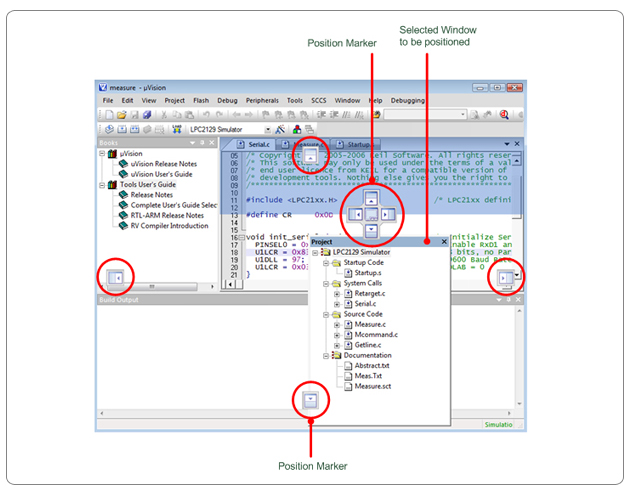

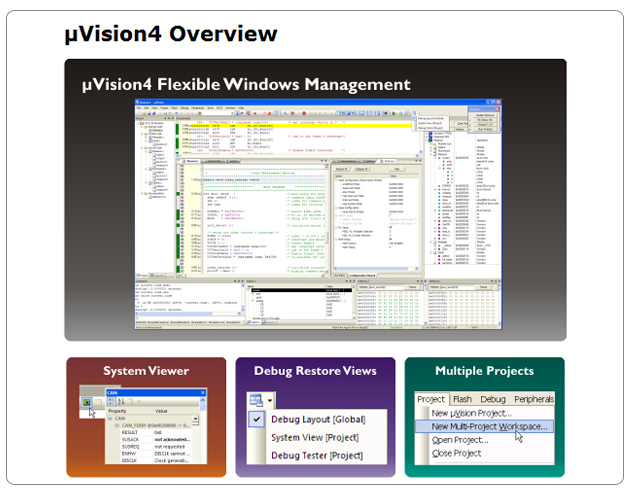

ARM Cortex-M3는 Keil사의 MDK-ARM을 이용하여 손쉽게 프로그램을 개발할 수 있고, ULINK 장치를 이용하여 디버깅, 다운로드를 할 수 있도록 제작되어 있어 손쉽게 개발 환경을 구축할 수 있습니다.<o:p></o:p>
<o:p> </o:p>
LPC1768 MCU는 32bit 100MHz의 동작속도를 가지고 있어 대용량 처리와 동작속도를 보장합니다.<o:p></o:p>
<o:p> </o:p>
ARM Cortex-M3는 SD Card, Switch, Joystick, LED, Potentiometer 등의 장치를 내장하고 있어, 외부메모리를 제어하거나 여러 장치를 제어하는 등 여러가지 동작을 구현해 볼 수 있습니다.<o:p></o:p>
<o:p> </o:p>
ARM Cortex-M3는 외부 IO 포트를 통해서 ㈜휴인스에서 제공하는 IO보드를 삽입할 수 있습니다. StepMotor, ServoMotor, Sensor, FND, Keypad 등의 IO보드를 통해서 각종 모터구동과 센서입력, FND, Keypad 입력등의 실습을 할 수 있습니다.<o:p></o:p>
<o:p> </o:p>
ARM Cortex-M3는 내부 RTC를 위한 코인 배터리를 가지고 있어 실시간, 저전력 어플리케이션을 구현 할 수 있습니다.<o:p></o:p>
<o:p> </o:p>
ARM Cortex-M3는 각종 장치를 동작 할 수 있는 기본 소스와 매뉴얼을 제공함으로써 사용자가 쉽게 어플리케이션을 구현 할 수 있도록 합니다.<o:p></o:p>
 <IMG name='target_resize_image[]' onclick='image_window(this)' style='cursor:pointer;' style="VERTICAL-ALIGN: middle; CURSOR: pointer" onclick=image_window(this) name=target_resize_image[] src="/_data/_editor/1003/2040968486_161da8fd_square_arrow.gif" tmp_height="16" tmp_width="14" > Extension IO 모듈  </o:p><o:p>

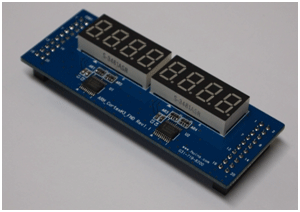

FND 모듈 <o:p></o:p>
7-segment 4digit 2개에 GPIO의 Output을 사용하여 8개의 숫자를 출력 할 수 있는 모듈 <o:p></o:p>
<IMG name='target_resize_image[]' onclick='image_window(this)' style='cursor:pointer;' src="/_data/_editor/1003/2040968486_c23c72a2_fndB8F0B5E2.gif" > <SPAN style="FONT-FAMILY: '맑은 고딕'; COLOR: black; FONT-SIZE: 9pt; mso-bidi-font-family: 'Times New Roman'; mso-font-kerning: 0pt; mso-ascii-theme-font: minor-latin; mso-fareast-theme-font: minor-latin; mso-hansi-theme-font: minor-latin; mso-ansi-language: EN-US; mso-fareast-language: KO; mso-bidi-language: AR-SA" lang=EN-US> <SPAN style="FONT-FAMILY: '맑은 고딕'; COLOR: black; FONT-SIZE: 9pt; mso-bidi-font-family: 굴림; mso-font-kerning: 0pt; mso-ascii-theme-font: minor-latin; mso-fareast-theme-font: minor-latin; mso-hansi-theme-font: minor-latin; mso-ansi-language: EN-US; mso-fareast-language: KO; mso-bidi-language: AR-SA" lang=EN-US>Keypad <SPAN style="FONT-FAMILY: '맑은 고딕'; COLOR: black; FONT-SIZE: 9pt; mso-bidi-font-family: 굴림; mso-font-kerning: 0pt; mso-ascii-theme-font: minor-latin; mso-fareast-theme-font: minor-latin; mso-hansi-theme-font: minor-latin; mso-ansi-language: EN-US; mso-fareast-language: KO; mso-bidi-language: AR-SA">모듈 <SPAN style="FONT-FAMILY: '맑은 고딕'; COLOR: black; FONT-SIZE: 9pt; mso-bidi-font-family: 굴림; mso-font-kerning: 0pt; mso-ascii-theme-font: minor-latin; mso-fareast-theme-font: minor-latin; mso-hansi-theme-font: minor-latin; mso-ansi-language: EN-US; mso-fareast-language: KO; mso-bidi-language: AR-SA" lang=EN-US>16<SPAN style="FONT-FAMILY: '맑은 고딕'; COLOR: black; FONT-SIZE: 9pt; mso-bidi-font-family: 굴림; mso-font-kerning: 0pt; mso-ascii-theme-font: minor-latin; mso-fareast-theme-font: minor-latin; mso-hansi-theme-font: minor-latin; mso-ansi-language: EN-US; mso-fareast-language: KO; mso-bidi-language: AR-SA">개의 Matrix Keypad를 GPIO의 Input과 Output을 사용하여 16개의 Tact switch상태 값을 받을 수 있는 모듈 <IMG name='target_resize_image[]' onclick='image_window(this)' style='cursor:pointer;' style="WIDTH: 300px; HEIGHT: 184px" src="/_data/_editor/1003/2040968486_b8c05b63_C5B0C6D0B5E5B8F0B5E2.gif" width=300 height=226 > Sensor 모듈<o:p></o:p> <SPAN style="FONT-FAMILY: '맑은 고딕'; COLOR: black; FONT-SIZE: 9pt; mso-bidi-font-family: 굴림; mso-font-kerning: 0pt; mso-ascii-theme-font: minor-latin; mso-fareast-theme-font: minor-latin; mso-hansi-theme-font: minor-latin; mso-ansi-language: EN-US; mso-fareast-language: KO; mso-bidi-language: AR-SA">온도, 조도 센서에서 아날로그 데이터를 12Bit ADC를 통해 센서 데이터를 수집할 수 있는 모듈<IMG name='target_resize_image[]' onclick='image_window(this)' style='cursor:pointer;' style="WIDTH: 302px; HEIGHT: 220px" src="/_data/_editor/1003/2040968486_04db98b2_BCBEBDBAB8F0B5E2.gif" width=302 height=315 > Servomotor 모듈<o:p></o:p> <SPAN style="FONT-FAMILY: '맑은 고딕'; COLOR: black; FONT-SIZE: 9pt; mso-bidi-font-family: 굴림; mso-font-kerning: 0pt; mso-ascii-theme-font: minor-latin; mso-fareast-theme-font: minor-latin; mso-hansi-theme-font: minor-latin; mso-ansi-language: EN-US; mso-fareast-language: KO; mso-bidi-language: AR-SA" lang=EN-US>Servo Motor 2<SPAN style="FONT-FAMILY: '맑은 고딕'; COLOR: black; FONT-SIZE: 9pt; mso-bidi-font-family: 굴림; mso-font-kerning: 0pt; mso-ascii-theme-font: minor-latin; mso-fareast-theme-font: minor-latin; mso-hansi-theme-font: minor-latin; mso-ansi-language: EN-US; mso-fareast-language: KO; mso-bidi-language: AR-SA">개에 PWM 신호를 주어 모터의 각도를 제어 할 수 있는 모듈<IMG name='target_resize_image[]' onclick='image_window(this)' style='cursor:pointer;' style="WIDTH: 303px; HEIGHT: 195px" src="/_data/_editor/1003/2040968486_f3c28591_B8F0B5E2-BCADBAB8B8F0C5CD.gif" width=303 height=330 > StepMotor 모듈 <o:p></o:p> <SPAN style="FONT-FAMILY: '맑은 고딕'; COLOR: black; FONT-SIZE: 9pt; mso-bidi-font-family: 굴림; mso-font-kerning: 0pt; mso-ascii-theme-font: minor-latin; mso-fareast-theme-font: minor-latin; mso-hansi-theme-font: minor-latin; mso-ansi-language: EN-US; mso-fareast-language: KO; mso-bidi-language: AR-SA" lang=EN-US>StepMotor<SPAN style="FONT-FAMILY: '맑은 고딕'; COLOR: black; FONT-SIZE: 9pt; mso-bidi-font-family: 굴림; mso-font-kerning: 0pt; mso-ascii-theme-font: minor-latin; mso-fareast-theme-font: minor-latin; mso-hansi-theme-font: minor-latin; mso-ansi-language: EN-US; mso-fareast-language: KO; mso-bidi-language: AR-SA">에 GPIO 신호를 주어 정밀한 모터의 움직임을 구현 할 수 있는 모듈<IMG name='target_resize_image[]' onclick='image_window(this)' style='cursor:pointer;' style="WIDTH: 302px; HEIGHT: 218px" src="/_data/_editor/1003/2040968486_9d5baee3_B8F0B5E2-BDBAC5DCB8F0C5CD.gif" width=302 height=316 > <IMG name='target_resize_image[]' onclick='image_window(this)' style='cursor:pointer;' style="VERTICAL-ALIGN: middle" src="/_data/_editor/1003/2040968486_f03bf25a_square_arrow.gif" > 개발환경
<TABLE style="BORDER-BOTTOM: medium none; BORDER-LEFT: medium none; BORDER-COLLAPSE: collapse; BORDER-TOP: medium none; BORDER-RIGHT: medium none; mso-border-alt: solid black .5pt; mso-yfti-tbllook: 1184; mso-padding-alt: 0cm 5.4pt 0cm 5.4pt; mso-border-themecolor: text1" class=MsoTableGrid border=1 cellSpacing=0 cellPadding=0>
<TBODY>
<TR style="mso-yfti-irow: 0; mso-yfti-firstrow: yes">
<TD style="BORDER-BOTTOM: black 1pt solid; BORDER-LEFT: black 1pt solid; PADDING-BOTTOM: 0cm; BACKGROUND-COLOR: transparent; PADDING-LEFT: 5.4pt; WIDTH: 230.6pt; PADDING-RIGHT: 5.4pt; BORDER-TOP: black 1pt solid; BORDER-RIGHT: black 1pt solid; PADDING-TOP: 0cm; mso-border-alt: solid black .5pt; mso-border-themecolor: text1" vAlign=top width=307>
<SPAN style="FONT-FAMILY: '맑은 고딕'; FONT-SIZE: 9pt; mso-bidi-font-family: 굴림; mso-font-kerning: 0pt; mso-ascii-theme-font: minor-latin; mso-fareast-theme-font: minor-latin; mso-hansi-theme-font: minor-latin; mso-ansi-language: EN-US; mso-fareast-language: KO; mso-bidi-language: AR-SA" lang=EN-US> KEIL MDK-ARM Compiler, debugger</TD>
<TD style="BORDER-BOTTOM: black 1pt solid; BORDER-LEFT: #c0c0c0; PADDING-BOTTOM: 0cm; BACKGROUND-COLOR: transparent; PADDING-LEFT: 5.4pt; WIDTH: 230.6pt; PADDING-RIGHT: 5.4pt; BORDER-TOP: black 1pt solid; BORDER-RIGHT: black 1pt solid; PADDING-TOP: 0cm; mso-border-alt: solid black .5pt; mso-border-left-alt: solid black .5pt; mso-border-themecolor: text1; mso-border-left-themecolor: text1" vAlign=top width=307>
<?xml:namespace prefix = v ns = "urn:schemas-microsoft-com:vml" /><v:shapetype id=_x0000_t75 o:preferrelative="t" filled="f" stroked="f" coordsize="21600,21600" o:spt="75" path="m@4@5l@4@11@9@11@9@5xe"><v:stroke joinstyle="miter"></v:stroke><v:formulas><v:f eqn="if lineDrawn pixelLineWidth 0"></v:f><v:f eqn="sum @0 1 0"></v:f><v:f eqn="sum 0 0 @1"></v:f><v:f eqn="prod @2 1 2"></v:f><v:f eqn="prod @3 21600 pixelWidth"></v:f><v:f eqn="prod @3 21600 pixelHeight"></v:f><v:f eqn="sum @0 0 1"></v:f><v:f eqn="prod @6 1 2"></v:f><v:f eqn="prod @7 21600 pixelWidth"></v:f><v:f eqn="sum @8 21600 0"></v:f><v:f eqn="prod @7 21600 pixelHeight"></v:f><v:f eqn="sum @10 21600 0"></v:f></v:formulas><v:path o:extrusionok="f" gradientshapeok="t" o:connecttype="rect"></v:path><o:lock v:ext="edit" aspectratio="t"></o:lock></v:shapetype><o:p><IMG name='target_resize_image[]' onclick='image_window(this)' style='cursor:pointer;' src="/_data/_editor/1003/2040968486_c0b8dace_B0B3B9DFC8AFB0E6C0CCB9CCC1F61.jpg" >

<o:p></o:p>
</o:p></TD></TR>
<TR style="mso-yfti-irow: 1; mso-yfti-lastrow: yes">
<TD style="BORDER-BOTTOM: black 1pt solid; BORDER-LEFT: black 1pt solid; PADDING-BOTTOM: 0cm; BACKGROUND-COLOR: transparent; PADDING-LEFT: 5.4pt; WIDTH: 230.6pt; PADDING-RIGHT: 5.4pt; BORDER-TOP: #c0c0c0; BORDER-RIGHT: black 1pt solid; PADDING-TOP: 0cm; mso-border-alt: solid black .5pt; mso-border-top-alt: solid black .5pt; mso-border-themecolor: text1; mso-border-top-themecolor: text1" vAlign=top width=307>
<SPAN style="FONT-FAMILY: '맑은 고딕'; FONT-SIZE: 9pt; mso-bidi-font-family: 굴림; mso-font-kerning: 0pt; mso-ascii-theme-font: minor-latin; mso-fareast-theme-font: minor-latin; mso-hansi-theme-font: minor-latin; mso-ansi-language: EN-US; mso-fareast-language: KO; mso-bidi-language: AR-SA" lang=EN-US> ULINK2, ULINK PRO JTAG Emulator</TD>
<TD style="BORDER-BOTTOM: black 1pt solid; BORDER-LEFT: #c0c0c0; PADDING-BOTTOM: 0cm; BACKGROUND-COLOR: transparent; PADDING-LEFT: 5.4pt; WIDTH: 230.6pt; PADDING-RIGHT: 5.4pt; BORDER-TOP: #c0c0c0; BORDER-RIGHT: black 1pt solid; PADDING-TOP: 0cm; mso-border-alt: solid black .5pt; mso-border-left-alt: solid black .5pt; mso-border-top-alt: solid black .5pt; mso-border-themecolor: text1; mso-border-left-themecolor: text1; mso-border-top-themecolor: text1; mso-border-bottom-themecolor: text1; mso-border-right-themecolor: text1" vAlign=top width=307>
<o:p><IMG name='target_resize_image[]' onclick='image_window(this)' style='cursor:pointer;' src="/_data/_editor/1003/2040968486_c76dcdc3_B0B3B9DFC8AFB0E6C0CCB9CCC1F62.jpg" >

<o:p></o:p>
</o:p></TD></TR></TBODY></TABLE>
<o:p> </o:p>
<IMG name='target_resize_image[]' onclick='image_window(this)' style='cursor:pointer;' src="/_data/_editor/1004/3536717426_4118fac5_12.jpg" > <IMG name='target_resize_image[]' onclick='image_window(this)' style='cursor:pointer;' src="/_data/_editor/1004/3536717426_11b14dab_13.jpg" > </o:p>

<TABLE style="MARGIN: auto auto auto 16.2pt; WIDTH: 437.05pt; mso-yfti-tbllook: 1184; mso-padding-alt: 1.5pt 1.5pt 1.5pt 1.5pt; mso-cellspacing: 0cm" class=MsoNormalTable border=1 cellSpacing=0 cellPadding=0 width=583>
<TBODY>
<TR style="HEIGHT: 20.3pt; mso-yfti-irow: 0; mso-yfti-firstrow: yes">
<TD style="BORDER-BOTTOM: #e8e8e8 1pt solid; BORDER-LEFT: #e8e8e8 1pt solid; PADDING-BOTTOM: 1.5pt; PADDING-LEFT: 1.5pt; WIDTH: 108.7pt; PADDING-RIGHT: 1.5pt; BACKGROUND: #006699; HEIGHT: 20.3pt; BORDER-TOP: #e8e8e8 1pt solid; BORDER-RIGHT: #e8e8e8 1pt solid; PADDING-TOP: 1.5pt; mso-border-alt: solid #E8E8E8 .5pt" width=145>
Item<?xml:namespace prefix = o ns = "urn:schemas-microsoft-com:office:office" /><o:p></o:p></TD>
<TD style="BORDER-BOTTOM: #e8e8e8 1pt solid; BORDER-LEFT: #e8e8e8 1pt solid; PADDING-BOTTOM: 1.5pt; PADDING-LEFT: 1.5pt; WIDTH: 328.35pt; PADDING-RIGHT: 1.5pt; BACKGROUND: #0099cc; HEIGHT: 20.3pt; BORDER-TOP: #e8e8e8 1pt solid; BORDER-RIGHT: #e8e8e8 1pt solid; PADDING-TOP: 1.5pt; mso-border-alt: solid #E8E8E8 .5pt" width=438 colSpan=3>
Specification<o:p></o:p></TD></TR>
<TR style="HEIGHT: 9.8pt; mso-yfti-irow: 1">
<TD style="BORDER-BOTTOM: #f4f4f4; BORDER-LEFT: #e8e8e8 1pt solid; PADDING-BOTTOM: 1.5pt; PADDING-LEFT: 1.5pt; WIDTH: 108.7pt; PADDING-RIGHT: 1.5pt; BACKGROUND: #e8f3ff; HEIGHT: 9.8pt; BORDER-TOP: #e8e8e8 1pt solid; BORDER-RIGHT: #e8e8e8 1pt solid; PADDING-TOP: 1.5pt; mso-border-left-alt: solid #E8E8E8 .5pt; mso-border-top-alt: solid #E8E8E8 .5pt; mso-border-right-alt: solid #E8E8E8 .5pt" vAlign=top rowSpan=4 width=145>
MCU<o:p></o:p>
(Cortex-M3)<o:p></o:p></TD>
<TD style="BORDER-BOTTOM: white 1pt solid; BORDER-LEFT: #e8e8e8 1pt solid; PADDING-BOTTOM: 1.5pt; BACKGROUND-COLOR: transparent; PADDING-LEFT: 1.5pt; WIDTH: 73.2pt; PADDING-RIGHT: 1.5pt; HEIGHT: 9.8pt; BORDER-TOP: #e8e8e8 1pt solid; BORDER-RIGHT: white 1pt solid; PADDING-TOP: 1.5pt; mso-border-left-alt: #E8E8E8; mso-border-top-alt: #E8E8E8; mso-border-bottom-themecolor: background1; mso-border-right-themecolor: background1; mso-border-right-alt: white; mso-border-bottom-alt: white; mso-border-style-alt: solid; mso-border-width-alt: .5pt" vAlign=top width=98 colSpan=2>
제조사<o:p></o:p></TD>
<TD style="BORDER-BOTTOM: white 1pt solid; BORDER-LEFT: white 1pt solid; PADDING-BOTTOM: 1.5pt; BACKGROUND-COLOR: transparent; PADDING-LEFT: 1.5pt; WIDTH: 9cm; PADDING-RIGHT: 1.5pt; HEIGHT: 9.8pt; BORDER-TOP: #e8e8e8 1pt solid; BORDER-RIGHT: #e8e8e8 1pt solid; PADDING-TOP: 1.5pt; mso-border-left-alt: white; mso-border-left-themecolor: background1; mso-border-top-alt: #E8E8E8; mso-border-bottom-themecolor: background1; mso-border-right-alt: #E8E8E8; mso-border-bottom-alt: white; mso-border-style-alt: solid; mso-border-width-alt: .5pt" vAlign=top width=340>
NXP<o:p></o:p></TD></TR>
<TR style="HEIGHT: 20.6pt; mso-yfti-irow: 2">
<TD style="BORDER-BOTTOM: white 1pt solid; BORDER-LEFT: #e8e8e8 1pt solid; PADDING-BOTTOM: 1.5pt; BACKGROUND-COLOR: transparent; PADDING-LEFT: 1.5pt; WIDTH: 73.2pt; PADDING-RIGHT: 1.5pt; HEIGHT: 20.6pt; BORDER-TOP: white 1pt solid; BORDER-RIGHT: white 1pt solid; PADDING-TOP: 1.5pt; mso-border-alt: solid white .5pt; mso-border-themecolor: background1; mso-border-left-alt: solid #E8E8E8 .5pt" vAlign=top width=98 colSpan=2>
모델명<o:p></o:p></TD>
<TD style="BORDER-BOTTOM: white 1pt solid; BORDER-LEFT: white 1pt solid; PADDING-BOTTOM: 1.5pt; BACKGROUND-COLOR: transparent; PADDING-LEFT: 1.5pt; WIDTH: 9cm; PADDING-RIGHT: 1.5pt; HEIGHT: 20.6pt; BORDER-TOP: white 1pt solid; BORDER-RIGHT: #e8e8e8 1pt solid; PADDING-TOP: 1.5pt; mso-border-alt: solid white .5pt; mso-border-themecolor: background1; mso-border-right-alt: solid #E8E8E8 .5pt" vAlign=top width=340>
LPC1768<o:p></o:p></TD></TR>
<TR style="HEIGHT: 10.55pt; mso-yfti-irow: 3">
<TD style="BORDER-BOTTOM: white 1pt solid; BORDER-LEFT: #e8e8e8 1pt solid; PADDING-BOTTOM: 1.5pt; BACKGROUND-COLOR: transparent; PADDING-LEFT: 1.5pt; WIDTH: 73.2pt; PADDING-RIGHT: 1.5pt; HEIGHT: 10.55pt; BORDER-TOP: white 1pt solid; BORDER-RIGHT: white 1pt solid; PADDING-TOP: 1.5pt; mso-border-alt: solid white .5pt; mso-border-themecolor: background1; mso-border-left-alt: solid #E8E8E8 .5pt" vAlign=top width=98 colSpan=2>
컴파일러<o:p></o:p></TD>
<TD style="BORDER-BOTTOM: white 1pt solid; BORDER-LEFT: white 1pt solid; PADDING-BOTTOM: 1.5pt; BACKGROUND-COLOR: transparent; PADDING-LEFT: 1.5pt; WIDTH: 9cm; PADDING-RIGHT: 1.5pt; HEIGHT: 10.55pt; BORDER-TOP: white 1pt solid; BORDER-RIGHT: #e8e8e8 1pt solid; PADDING-TOP: 1.5pt; mso-border-alt: solid white .5pt; mso-border-themecolor: background1; mso-border-right-alt: solid #E8E8E8 .5pt" vAlign=top width=340>
Keil MDK-ARM <o:p></o:p></TD></TR>
<TR style="HEIGHT: 7.55pt; mso-yfti-irow: 4">
<TD style="BORDER-BOTTOM: #f4f4f4; BORDER-LEFT: #e8e8e8 1pt solid; PADDING-BOTTOM: 1.5pt; BACKGROUND-COLOR: transparent; PADDING-LEFT: 1.5pt; WIDTH: 73.2pt; PADDING-RIGHT: 1.5pt; HEIGHT: 7.55pt; BORDER-TOP: white 1pt solid; BORDER-RIGHT: white 1pt solid; PADDING-TOP: 1.5pt; mso-border-left-alt: solid #E8E8E8 .5pt; mso-border-top-alt: solid white .5pt; mso-border-top-themecolor: background1; mso-border-right-themecolor: background1; mso-border-right-alt: solid white .5pt" vAlign=top width=98 colSpan=2>
사양<o:p></o:p></TD>
<TD style="BORDER-BOTTOM: #f4f4f4; BORDER-LEFT: white 1pt solid; PADDING-BOTTOM: 1.5pt; BACKGROUND-COLOR: transparent; PADDING-LEFT: 1.5pt; WIDTH: 9cm; PADDING-RIGHT: 1.5pt; HEIGHT: 7.55pt; BORDER-TOP: white 1pt solid; BORDER-RIGHT: #e8e8e8 1pt solid; PADDING-TOP: 1.5pt; mso-border-left-alt: solid white .5pt; mso-border-left-themecolor: background1; mso-border-top-alt: solid white .5pt; mso-border-top-themecolor: background1; mso-border-right-alt: solid #E8E8E8 .5pt" vAlign=top width=340>
32bit MCU, up to 100MHz Operating<o:p></o:p>
Flash : 512KB, SRAM : 64KB<o:p></o:p>
JTAG Program, 100Pin  LQFP<o:p></o:p></TD></TR>
<TR style="HEIGHT: 12.1pt; mso-yfti-irow: 5">
<TD style="BORDER-BOTTOM: #e8e8e8 1pt solid; BORDER-LEFT: #e8e8e8 1pt solid; PADDING-BOTTOM: 1.5pt; PADDING-LEFT: 1.5pt; WIDTH: 108.7pt; PADDING-RIGHT: 1.5pt; BACKGROUND: #e8f3ff; HEIGHT: 12.1pt; BORDER-TOP: #e8e8e8 1pt solid; BORDER-RIGHT: #e8e8e8 1pt solid; PADDING-TOP: 1.5pt; mso-border-alt: solid #E8E8E8 .5pt" vAlign=top rowSpan=3 width=145>
Display<o:p></o:p></TD>
<TD style="BORDER-BOTTOM: white 1pt solid; BORDER-LEFT: #e8e8e8 1pt solid; PADDING-BOTTOM: 1.5pt; BACKGROUND-COLOR: transparent; PADDING-LEFT: 1.5pt; WIDTH: 69.1pt; PADDING-RIGHT: 1.5pt; HEIGHT: 12.1pt; BORDER-TOP: #e8e8e8 1pt solid; BORDER-RIGHT: white 1pt solid; PADDING-TOP: 1.5pt; mso-border-left-alt: #E8E8E8; mso-border-top-alt: #E8E8E8; mso-border-bottom-themecolor: background1; mso-border-right-themecolor: background1; mso-border-right-alt: white; mso-border-bottom-alt: white; mso-border-style-alt: solid; mso-border-width-alt: .5pt" vAlign=top width=92>
TFT-LCD<o:p></o:p></TD>
<TD style="BORDER-BOTTOM: white 1pt solid; BORDER-LEFT: white 1pt solid; PADDING-BOTTOM: 1.5pt; BACKGROUND-COLOR: transparent; PADDING-LEFT: 1.5pt; WIDTH: 259.25pt; PADDING-RIGHT: 1.5pt; HEIGHT: 12.1pt; BORDER-TOP: #e8e8e8 1pt solid; BORDER-RIGHT: #e8e8e8 1pt solid; PADDING-TOP: 1.5pt; mso-border-left-alt: white; mso-border-left-themecolor: background1; mso-border-top-alt: #E8E8E8; mso-border-bottom-themecolor: background1; mso-border-right-alt: #E8E8E8; mso-border-bottom-alt: white; mso-border-style-alt: solid; mso-border-width-alt: .5pt" vAlign=top width=346 colSpan=2>
2.83”, 240*320, 262K QVGA TFT color LCD<o:p></o:p></TD></TR>
<TR style="HEIGHT: 9.8pt; mso-yfti-irow: 6">
<TD style="BORDER-BOTTOM: white 1pt solid; BORDER-LEFT: #e8e8e8 1pt solid; PADDING-BOTTOM: 1.5pt; BACKGROUND-COLOR: transparent; PADDING-LEFT: 1.5pt; WIDTH: 69.1pt; PADDING-RIGHT: 1.5pt; HEIGHT: 9.8pt; BORDER-TOP: white 1pt solid; BORDER-RIGHT: white 1pt solid; PADDING-TOP: 1.5pt; mso-border-alt: solid white .5pt; mso-border-themecolor: background1; mso-border-left-alt: solid #E8E8E8 .5pt" vAlign=top width=92>
LED<o:p></o:p></TD>
<TD style="BORDER-BOTTOM: white 1pt solid; BORDER-LEFT: white 1pt solid; PADDING-BOTTOM: 1.5pt; BACKGROUND-COLOR: transparent; PADDING-LEFT: 1.5pt; WIDTH: 259.25pt; PADDING-RIGHT: 1.5pt; HEIGHT: 9.8pt; BORDER-TOP: white 1pt solid; BORDER-RIGHT: #e8e8e8 1pt solid; PADDING-TOP: 1.5pt; mso-border-alt: solid white .5pt; mso-border-themecolor: background1; mso-border-right-alt: solid #E8E8E8 .5pt" vAlign=top width=346 colSpan=2>
8 Digit Green LED<o:p></o:p></TD></TR>
<TR style="HEIGHT: 7.55pt; mso-yfti-irow: 7">
<TD style="BORDER-BOTTOM: #e8e8e8 1pt solid; BORDER-LEFT: #e8e8e8 1pt solid; PADDING-BOTTOM: 1.5pt; BACKGROUND-COLOR: transparent; PADDING-LEFT: 1.5pt; WIDTH: 69.1pt; PADDING-RIGHT: 1.5pt; HEIGHT: 7.55pt; BORDER-TOP: white 1pt solid; BORDER-RIGHT: white 1pt solid; PADDING-TOP: 1.5pt; mso-border-left-alt: #E8E8E8; mso-border-top-alt: white; mso-border-top-themecolor: background1; mso-border-right-themecolor: background1; mso-border-right-alt: white; mso-border-bottom-alt: #E8E8E8; mso-border-style-alt: solid; mso-border-width-alt: .5pt" vAlign=top width=92>
FND<o:p></o:p></TD>
<TD style="BORDER-BOTTOM: #e8e8e8 1pt solid; BORDER-LEFT: white 1pt solid; PADDING-BOTTOM: 1.5pt; BACKGROUND-COLOR: transparent; PADDING-LEFT: 1.5pt; WIDTH: 259.25pt; PADDING-RIGHT: 1.5pt; HEIGHT: 7.55pt; BORDER-TOP: white 1pt solid; BORDER-RIGHT: #e8e8e8 1pt solid; PADDING-TOP: 1.5pt; mso-border-left-alt: white; mso-border-left-themecolor: background1; mso-border-top-alt: white; mso-border-top-themecolor: background1; mso-border-right-alt: #E8E8E8; mso-border-bottom-alt: #E8E8E8; mso-border-style-alt: solid; mso-border-width-alt: .5pt" vAlign=top width=346 colSpan=2>
4 Digit Array 7-Segment 2EA<o:p></o:p></TD></TR>
<TR style="HEIGHT: 19.6pt; mso-yfti-irow: 8">
<TD style="BORDER-BOTTOM: #f4f4f4; BORDER-LEFT: #e8e8e8 1pt solid; PADDING-BOTTOM: 1.5pt; PADDING-LEFT: 1.5pt; WIDTH: 108.7pt; PADDING-RIGHT: 1.5pt; BACKGROUND: #e8f3ff; HEIGHT: 19.6pt; BORDER-TOP: #e8e8e8 1pt solid; BORDER-RIGHT: #f4f4f4; PADDING-TOP: 1.5pt; mso-border-left-alt: solid #E8E8E8 .5pt; mso-border-top-alt: solid #E8E8E8 .5pt" vAlign=top rowSpan=3 width=145>
Interface<o:p></o:p></TD>
<TD style="BORDER-BOTTOM: white 1pt solid; BORDER-LEFT: #e8e8e8 1pt solid; PADDING-BOTTOM: 1.5pt; BACKGROUND-COLOR: transparent; PADDING-LEFT: 1.5pt; WIDTH: 69.1pt; PADDING-RIGHT: 1.5pt; HEIGHT: 19.6pt; BORDER-TOP: #e8e8e8 1pt solid; BORDER-RIGHT: white 1pt solid; PADDING-TOP: 1.5pt; mso-border-left-alt: #E8E8E8; mso-border-top-alt: #E8E8E8; mso-border-bottom-themecolor: background1; mso-border-right-themecolor: background1; mso-border-right-alt: white; mso-border-bottom-alt: white; mso-border-style-alt: solid; mso-border-width-alt: .5pt" vAlign=top width=92>
Ethernet<o:p></o:p></TD>
<TD style="BORDER-BOTTOM: white 1pt solid; BORDER-LEFT: white 1pt solid; PADDING-BOTTOM: 1.5pt; BACKGROUND-COLOR: transparent; PADDING-LEFT: 1.5pt; WIDTH: 259.25pt; PADDING-RIGHT: 1.5pt; HEIGHT: 19.6pt; BORDER-TOP: #e8e8e8 1pt solid; BORDER-RIGHT: #e8e8e8 1pt solid; PADDING-TOP: 1.5pt; mso-border-left-alt: white; mso-border-left-themecolor: background1; mso-border-top-alt: #E8E8E8; mso-border-bottom-themecolor: background1; mso-border-right-alt: #E8E8E8; mso-border-bottom-alt: white; mso-border-style-alt: solid; mso-border-width-alt: .5pt" vAlign=top width=346 colSpan=2>
10/100Mbit, IEEE 802.3 Ethernet 1Port<o:p></o:p></TD></TR>
<TR style="HEIGHT: 16.6pt; mso-yfti-irow: 9">
<TD style="BORDER-BOTTOM: #f4f4f4; BORDER-LEFT: #e8e8e8 1pt solid; PADDING-BOTTOM: 1.5pt; BACKGROUND-COLOR: transparent; PADDING-LEFT: 1.5pt; WIDTH: 69.1pt; PADDING-RIGHT: 1.5pt; HEIGHT: 16.6pt; BORDER-TOP: white 1pt solid; BORDER-RIGHT: white 1pt solid; PADDING-TOP: 1.5pt; mso-border-left-alt: solid #E8E8E8 .5pt; mso-border-top-alt: solid white .5pt; mso-border-top-themecolor: background1; mso-border-right-themecolor: background1; mso-border-right-alt: solid white .5pt" vAlign=top width=92>
RS232<o:p></o:p></TD>
<TD style="BORDER-BOTTOM: #f4f4f4; BORDER-LEFT: white 1pt solid; PADDING-BOTTOM: 1.5pt; BACKGROUND-COLOR: transparent; PADDING-LEFT: 1.5pt; WIDTH: 259.25pt; PADDING-RIGHT: 1.5pt; HEIGHT: 16.6pt; BORDER-TOP: white 1pt solid; BORDER-RIGHT: #e8e8e8 1pt solid; PADDING-TOP: 1.5pt; mso-border-left-alt: solid white .5pt; mso-border-left-themecolor: background1; mso-border-top-alt: solid white .5pt; mso-border-top-themecolor: background1; mso-border-right-alt: solid #E8E8E8 .5pt" vAlign=top width=346 colSpan=2>
Up to 230,400bps Data rate, 2port<o:p></o:p></TD></TR>
<TR style="HEIGHT: 6.8pt; mso-yfti-irow: 10">
<TD style="BORDER-BOTTOM: #f4f4f4; BORDER-LEFT: #e8e8e8 1pt solid; PADDING-BOTTOM: 1.5pt; BACKGROUND-COLOR: transparent; PADDING-LEFT: 1.5pt; WIDTH: 69.1pt; PADDING-RIGHT: 1.5pt; HEIGHT: 6.8pt; BORDER-TOP: white 1pt solid; BORDER-RIGHT: white 1pt solid; PADDING-TOP: 1.5pt; mso-border-left-alt: solid #E8E8E8 .5pt; mso-border-top-alt: solid white .5pt; mso-border-top-themecolor: background1; mso-border-right-themecolor: background1; mso-border-right-alt: solid white .5pt" vAlign=top width=92>
USB<o:p></o:p></TD>
<TD style="BORDER-BOTTOM: #f4f4f4; BORDER-LEFT: white 1pt solid; PADDING-BOTTOM: 1.5pt; BACKGROUND-COLOR: transparent; PADDING-LEFT: 1.5pt; WIDTH: 259.25pt; PADDING-RIGHT: 1.5pt; HEIGHT: 6.8pt; BORDER-TOP: white 1pt solid; BORDER-RIGHT: #e8e8e8 1pt solid; PADDING-TOP: 1.5pt; mso-border-left-alt: solid white .5pt; mso-border-left-themecolor: background1; mso-border-top-alt: solid white .5pt; mso-border-top-themecolor: background1; mso-border-right-alt: solid #E8E8E8 .5pt" vAlign=top width=346 colSpan=2>
USB 2.0 Full-speed, Client, Host, OTG 각 1port<o:p></o:p></TD></TR>
<TR style="HEIGHT: 14.85pt; mso-yfti-irow: 11">
<TD style="BORDER-BOTTOM: #e8e8e8 1pt solid; BORDER-LEFT: #e8e8e8 1pt solid; PADDING-BOTTOM: 1.5pt; PADDING-LEFT: 1.5pt; WIDTH: 108.7pt; PADDING-RIGHT: 1.5pt; BACKGROUND: #e8f3ff; HEIGHT: 14.85pt; BORDER-TOP: #f4f4f4; BORDER-RIGHT: #e8e8e8 1pt solid; PADDING-TOP: 1.5pt; mso-border-left-alt: solid #E8E8E8 .5pt; mso-border-right-alt: solid #E8E8E8 .5pt; mso-border-bottom-alt: solid #E8E8E8 .5pt" vAlign=top width=145></TD>
<TD style="BORDER-BOTTOM: #f4f4f4; BORDER-LEFT: #e8e8e8 1pt solid; PADDING-BOTTOM: 1.5pt; BACKGROUND-COLOR: transparent; PADDING-LEFT: 1.5pt; WIDTH: 69.1pt; PADDING-RIGHT: 1.5pt; HEIGHT: 14.85pt; BORDER-TOP: #f4f4f4; BORDER-RIGHT: white 1pt solid; PADDING-TOP: 1.5pt; mso-border-left-alt: solid #E8E8E8 .5pt; mso-border-right-themecolor: background1; mso-border-right-alt: solid white .5pt" vAlign=top width=92>
CAN<o:p></o:p></TD>
<TD style="BORDER-BOTTOM: #f4f4f4; BORDER-LEFT: white 1pt solid; PADDING-BOTTOM: 1.5pt; BACKGROUND-COLOR: transparent; PADDING-LEFT: 1.5pt; WIDTH: 259.25pt; PADDING-RIGHT: 1.5pt; HEIGHT: 14.85pt; BORDER-TOP: #f4f4f4; BORDER-RIGHT: #e8e8e8 1pt solid; PADDING-TOP: 1.5pt; mso-border-left-alt: solid white .5pt; mso-border-left-themecolor: background1; mso-border-right-alt: solid #E8E8E8 .5pt" vAlign=top width=346 colSpan=2>
CAN 2.0B, 2port<o:p></o:p></TD></TR>
<TR style="HEIGHT: 14.85pt; mso-yfti-irow: 12">
<TD style="BORDER-BOTTOM: #e8e8e8 1pt solid; BORDER-LEFT: #e8e8e8 1pt solid; PADDING-BOTTOM: 1.5pt; PADDING-LEFT: 1.5pt; WIDTH: 108.7pt; PADDING-RIGHT: 1.5pt; BACKGROUND: #e8f3ff; HEIGHT: 14.85pt; BORDER-TOP: #e8e8e8 1pt solid; BORDER-RIGHT: #e8e8e8 1pt solid; PADDING-TOP: 1.5pt; mso-border-alt: solid #E8E8E8 .5pt" vAlign=top width=145>
Memory<o:p></o:p></TD>
<TD style="BORDER-BOTTOM: #f4f4f4; BORDER-LEFT: #e8e8e8 1pt solid; PADDING-BOTTOM: 1.5pt; BACKGROUND-COLOR: transparent; PADDING-LEFT: 1.5pt; WIDTH: 69.1pt; PADDING-RIGHT: 1.5pt; HEIGHT: 14.85pt; BORDER-TOP: #e8e8e8 1pt solid; BORDER-RIGHT: white 1pt solid; PADDING-TOP: 1.5pt; mso-border-left-alt: solid #E8E8E8 .5pt; mso-border-top-alt: solid #E8E8E8 .5pt; mso-border-right-themecolor: background1; mso-border-right-alt: solid white .5pt" vAlign=top width=92>
Micro SD<o:p></o:p></TD>
<TD style="BORDER-BOTTOM: #f4f4f4; BORDER-LEFT: white 1pt solid; PADDING-BOTTOM: 1.5pt; BACKGROUND-COLOR: transparent; PADDING-LEFT: 1.5pt; WIDTH: 259.25pt; PADDING-RIGHT: 1.5pt; HEIGHT: 14.85pt; BORDER-TOP: #e8e8e8 1pt solid; BORDER-RIGHT: #e8e8e8 1pt solid; PADDING-TOP: 1.5pt; mso-border-left-alt: solid white .5pt; mso-border-left-themecolor: background1; mso-border-top-alt: solid #E8E8E8 .5pt; mso-border-right-alt: solid #E8E8E8 .5pt" vAlign=top width=346 colSpan=2>
Up to 2GB Micro SD Card slot, 1EA<o:p></o:p></TD></TR>
<TR style="HEIGHT: 14.85pt; mso-yfti-irow: 13">
<TD style="BORDER-BOTTOM: #e8e8e8 1pt solid; BORDER-LEFT: #e8e8e8 1pt solid; PADDING-BOTTOM: 1.5pt; PADDING-LEFT: 1.5pt; WIDTH: 108.7pt; PADDING-RIGHT: 1.5pt; BACKGROUND: #e8f3ff; HEIGHT: 14.85pt; BORDER-TOP: #e8e8e8 1pt solid; BORDER-RIGHT: #e8e8e8 1pt solid; PADDING-TOP: 1.5pt; mso-border-alt: solid #E8E8E8 .5pt" vAlign=top width=145>
Audio<o:p></o:p></TD>
<TD style="BORDER-BOTTOM: #f4f4f4; BORDER-LEFT: #e8e8e8 1pt solid; PADDING-BOTTOM: 1.5pt; BACKGROUND-COLOR: transparent; PADDING-LEFT: 1.5pt; WIDTH: 69.1pt; PADDING-RIGHT: 1.5pt; HEIGHT: 14.85pt; BORDER-TOP: #e8e8e8 1pt solid; BORDER-RIGHT: white 1pt solid; PADDING-TOP: 1.5pt; mso-border-left-alt: solid #E8E8E8 .5pt; mso-border-top-alt: solid #E8E8E8 .5pt; mso-border-right-themecolor: background1; mso-border-right-alt: solid white .5pt" vAlign=top width=92>
Speaker<o:p></o:p></TD>
<TD style="BORDER-BOTTOM: #f4f4f4; BORDER-LEFT: white 1pt solid; PADDING-BOTTOM: 1.5pt; BACKGROUND-COLOR: transparent; PADDING-LEFT: 1.5pt; WIDTH: 259.25pt; PADDING-RIGHT: 1.5pt; HEIGHT: 14.85pt; BORDER-TOP: #e8e8e8 1pt solid; BORDER-RIGHT: #e8e8e8 1pt solid; PADDING-TOP: 1.5pt; mso-border-left-alt: solid white .5pt; mso-border-left-themecolor: background1; mso-border-top-alt: solid #E8E8E8 .5pt; mso-border-right-alt: solid #E8E8E8 .5pt" vAlign=top width=346 colSpan=2>
10bit DAC를 이용한 Speaker 1EA<o:p></o:p></TD></TR>
<TR style="HEIGHT: 14.85pt; mso-yfti-irow: 14">
<TD style="BORDER-BOTTOM: #e8e8e8 1pt solid; BORDER-LEFT: #e8e8e8 1pt solid; PADDING-BOTTOM: 1.5pt; PADDING-LEFT: 1.5pt; WIDTH: 108.7pt; PADDING-RIGHT: 1.5pt; BACKGROUND: #e8f3ff; HEIGHT: 14.85pt; BORDER-TOP: #e8e8e8 1pt solid; BORDER-RIGHT: #e8e8e8 1pt solid; PADDING-TOP: 1.5pt; mso-border-alt: solid #E8E8E8 .5pt" vAlign=top rowSpan=2 width=145>

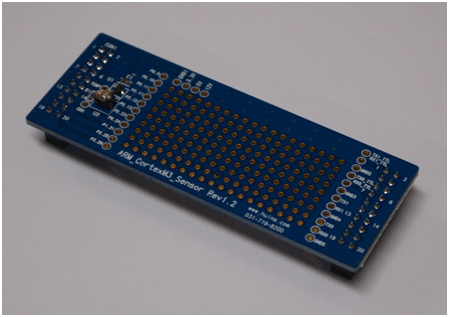

Sensor<o:p></o:p></TD>
<TD style="BORDER-BOTTOM: #f4f4f4; BORDER-LEFT: #e8e8e8 1pt solid; PADDING-BOTTOM: 1.5pt; BACKGROUND-COLOR: transparent; PADDING-LEFT: 1.5pt; WIDTH: 69.1pt; PADDING-RIGHT: 1.5pt; HEIGHT: 14.85pt; BORDER-TOP: #e8e8e8 1pt solid; BORDER-RIGHT: white 1pt solid; PADDING-TOP: 1.5pt; mso-border-left-alt: solid #E8E8E8 .5pt; mso-border-top-alt: solid #E8E8E8 .5pt; mso-border-right-themecolor: background1; mso-border-right-alt: solid white .5pt" vAlign=top width=92>
온도<o:p></o:p></TD>
<TD style="BORDER-BOTTOM: #f4f4f4; BORDER-LEFT: white 1pt solid; PADDING-BOTTOM: 1.5pt; BACKGROUND-COLOR: transparent; PADDING-LEFT: 1.5pt; WIDTH: 259.25pt; PADDING-RIGHT: 1.5pt; HEIGHT: 14.85pt; BORDER-TOP: #e8e8e8 1pt solid; BORDER-RIGHT: #e8e8e8 1pt solid; PADDING-TOP: 1.5pt; mso-border-left-alt: solid white .5pt; mso-border-left-themecolor: background1; mso-border-top-alt: solid #E8E8E8 .5pt; mso-border-right-alt: solid #E8E8E8 .5pt" vAlign=top width=346 colSpan=2>
-40~125℃ Range, ADC Interface Temp Sensor 1EA<o:p></o:p></TD></TR>
<TR style="HEIGHT: 14.85pt; mso-yfti-irow: 15">
<TD style="BORDER-BOTTOM: #f4f4f4; BORDER-LEFT: #e8e8e8 1pt solid; PADDING-BOTTOM: 1.5pt; BACKGROUND-COLOR: transparent; PADDING-LEFT: 1.5pt; WIDTH: 69.1pt; PADDING-RIGHT: 1.5pt; HEIGHT: 14.85pt; BORDER-TOP: #e8e8e8 1pt solid; BORDER-RIGHT: white 1pt solid; PADDING-TOP: 1.5pt; mso-border-left-alt: solid #E8E8E8 .5pt; mso-border-top-alt: solid #E8E8E8 .5pt; mso-border-right-themecolor: background1; mso-border-right-alt: solid white .5pt" vAlign=top width=92>
조도<o:p></o:p></TD>
<TD style="BORDER-BOTTOM: #f4f4f4; BORDER-LEFT: white 1pt solid; PADDING-BOTTOM: 1.5pt; BACKGROUND-COLOR: transparent; PADDING-LEFT: 1.5pt; WIDTH: 259.25pt; PADDING-RIGHT: 1.5pt; HEIGHT: 14.85pt; BORDER-TOP: #e8e8e8 1pt solid; BORDER-RIGHT: #e8e8e8 1pt solid; PADDING-TOP: 1.5pt; mso-border-left-alt: solid white .5pt; mso-border-left-themecolor: background1; mso-border-top-alt: solid #E8E8E8 .5pt; mso-border-right-alt: solid #E8E8E8 .5pt" vAlign=top width=346 colSpan=2>
0~100% Range, ADC Interface CDS Sensor 1EA<o:p></o:p></TD></TR>
<TR style="HEIGHT: 8.3pt; mso-yfti-irow: 16">
<TD style="BORDER-BOTTOM: #f4f4f4; BORDER-LEFT: #e8e8e8 1pt solid; PADDING-BOTTOM: 1.5pt; PADDING-LEFT: 1.5pt; WIDTH: 108.7pt; PADDING-RIGHT: 1.5pt; BACKGROUND: #e8f3ff; HEIGHT: 8.3pt; BORDER-TOP: #e8e8e8 1pt solid; BORDER-RIGHT: #e8e8e8 1pt solid; PADDING-TOP: 1.5pt; mso-border-left-alt: solid #E8E8E8 .5pt; mso-border-top-alt: solid #E8E8E8 .5pt; mso-border-right-alt: solid #E8E8E8 .5pt" vAlign=top rowSpan=2 width=145>
Motor<o:p></o:p></TD>
<TD style="BORDER-BOTTOM: white 1pt solid; BORDER-LEFT: #e8e8e8 1pt solid; PADDING-BOTTOM: 1.5pt; BACKGROUND-COLOR: transparent; PADDING-LEFT: 1.5pt; WIDTH: 69.1pt; PADDING-RIGHT: 1.5pt; HEIGHT: 8.3pt; BORDER-TOP: #e8e8e8 1pt solid; BORDER-RIGHT: white 1pt solid; PADDING-TOP: 1.5pt; mso-border-left-alt: #E8E8E8; mso-border-top-alt: #E8E8E8; mso-border-bottom-themecolor: background1; mso-border-right-themecolor: background1; mso-border-right-alt: white; mso-border-bottom-alt: white; mso-border-style-alt: solid; mso-border-width-alt: .5pt" vAlign=top width=92>

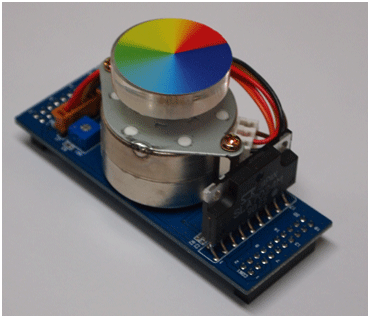

Step Motor<o:p></o:p></TD>
<TD style="BORDER-BOTTOM: white 1pt solid; BORDER-LEFT: white 1pt solid; PADDING-BOTTOM: 1.5pt; BACKGROUND-COLOR: transparent; PADDING-LEFT: 1.5pt; WIDTH: 259.25pt; PADDING-RIGHT: 1.5pt; HEIGHT: 8.3pt; BORDER-TOP: #e8e8e8 1pt solid; BORDER-RIGHT: #e8e8e8 1pt solid; PADDING-TOP: 1.5pt; mso-border-left-alt: white; mso-border-left-themecolor: background1; mso-border-top-alt: #E8E8E8; mso-border-bottom-themecolor: background1; mso-border-right-alt: #E8E8E8; mso-border-bottom-alt: white; mso-border-style-alt: solid; mso-border-width-alt: .5pt" vAlign=top width=346 colSpan=2>
12V Stepping Motor 1EA<o:p></o:p></TD></TR>
<TR style="HEIGHT: 9.05pt; mso-yfti-irow: 17">
<TD style="BORDER-BOTTOM: #f4f4f4; BORDER-LEFT: #e8e8e8 1pt solid; PADDING-BOTTOM: 1.5pt; BACKGROUND-COLOR: transparent; PADDING-LEFT: 1.5pt; WIDTH: 69.1pt; PADDING-RIGHT: 1.5pt; HEIGHT: 9.05pt; BORDER-TOP: white 1pt solid; BORDER-RIGHT: white 1pt solid; PADDING-TOP: 1.5pt; mso-border-left-alt: solid #E8E8E8 .5pt; mso-border-top-alt: solid white .5pt; mso-border-top-themecolor: background1; mso-border-right-themecolor: background1; mso-border-right-alt: solid white .5pt" vAlign=top width=92>

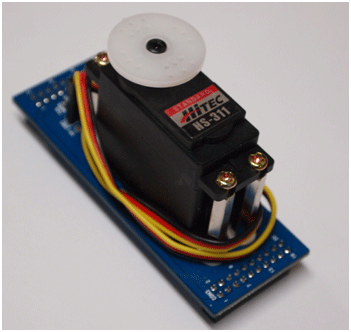

ServoMotor<o:p></o:p></TD>
<TD style="BORDER-BOTTOM: #f4f4f4; BORDER-LEFT: white 1pt solid; PADDING-BOTTOM: 1.5pt; BACKGROUND-COLOR: transparent; PADDING-LEFT: 1.5pt; WIDTH: 259.25pt; PADDING-RIGHT: 1.5pt; HEIGHT: 9.05pt; BORDER-TOP: white 1pt solid; BORDER-RIGHT: #e8e8e8 1pt solid; PADDING-TOP: 1.5pt; mso-border-left-alt: solid white .5pt; mso-border-left-themecolor: background1; mso-border-top-alt: solid white .5pt; mso-border-top-themecolor: background1; mso-border-right-alt: solid #E8E8E8 .5pt" vAlign=top width=346 colSpan=2>
5V Servo Motor 1EA<o:p></o:p></TD></TR>
<TR style="HEIGHT: 10.4pt; mso-yfti-irow: 18">
<TD style="BORDER-BOTTOM: #e8e8e8 1pt solid; BORDER-LEFT: #e8e8e8 1pt solid; PADDING-BOTTOM: 1.5pt; PADDING-LEFT: 1.5pt; WIDTH: 108.7pt; PADDING-RIGHT: 1.5pt; BACKGROUND: #e8f3ff; HEIGHT: 10.4pt; BORDER-TOP: #e8e8e8 1pt solid; BORDER-RIGHT: #e8e8e8 1pt solid; PADDING-TOP: 1.5pt; mso-border-alt: solid #E8E8E8 .5pt" vAlign=top rowSpan=4 width=145>
Input<o:p></o:p></TD>
<TD style="BORDER-BOTTOM: white 1pt solid; BORDER-LEFT: #e8e8e8 1pt solid; PADDING-BOTTOM: 1.5pt; BACKGROUND-COLOR: transparent; PADDING-LEFT: 1.5pt; WIDTH: 69.1pt; PADDING-RIGHT: 1.5pt; HEIGHT: 10.4pt; BORDER-TOP: #e8e8e8 1pt solid; BORDER-RIGHT: white 1pt solid; PADDING-TOP: 1.5pt; mso-border-left-alt: #E8E8E8; mso-border-top-alt: #E8E8E8; mso-border-bottom-themecolor: background1; mso-border-right-themecolor: background1; mso-border-right-alt: white; mso-border-bottom-alt: white; mso-border-style-alt: solid; mso-border-width-alt: .5pt" vAlign=top width=92>

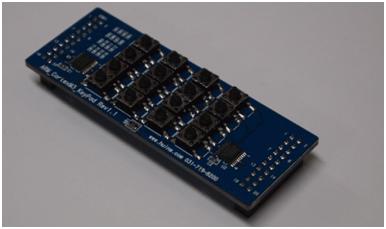

Key Pad<o:p></o:p></TD>
<TD style="BORDER-BOTTOM: white 1pt solid; BORDER-LEFT: white 1pt solid; PADDING-BOTTOM: 1.5pt; BACKGROUND-COLOR: transparent; PADDING-LEFT: 1.5pt; WIDTH: 259.25pt; PADDING-RIGHT: 1.5pt; HEIGHT: 10.4pt; BORDER-TOP: #e8e8e8 1pt solid; BORDER-RIGHT: #e8e8e8 1pt solid; PADDING-TOP: 1.5pt; mso-border-left-alt: white; mso-border-left-themecolor: background1; mso-border-top-alt: #E8E8E8; mso-border-bottom-themecolor: background1; mso-border-right-alt: #E8E8E8; mso-border-bottom-alt: white; mso-border-style-alt: solid; mso-border-width-alt: .5pt" vAlign=top width=346 colSpan=2>
4 Χ 4 Keypad <o:p></o:p></TD></TR>
<TR style="HEIGHT: 11.65pt; mso-yfti-irow: 19">
<TD style="BORDER-BOTTOM: white 1pt solid; BORDER-LEFT: #e8e8e8 1pt solid; PADDING-BOTTOM: 1.5pt; BACKGROUND-COLOR: transparent; PADDING-LEFT: 1.5pt; WIDTH: 69.1pt; PADDING-RIGHT: 1.5pt; HEIGHT: 11.65pt; BORDER-TOP: white 1pt solid; BORDER-RIGHT: white 1pt solid; PADDING-TOP: 1.5pt; mso-border-alt: solid white .5pt; mso-border-themecolor: background1; mso-border-left-alt: solid #E8E8E8 .5pt" vAlign=top width=92>
Joystick<o:p></o:p></TD>
<TD style="BORDER-BOTTOM: white 1pt solid; BORDER-LEFT: white 1pt solid; PADDING-BOTTOM: 1.5pt; BACKGROUND-COLOR: transparent; PADDING-LEFT: 1.5pt; WIDTH: 259.25pt; PADDING-RIGHT: 1.5pt; HEIGHT: 11.65pt; BORDER-TOP: white 1pt solid; BORDER-RIGHT: #e8e8e8 1pt solid; PADDING-TOP: 1.5pt; mso-border-alt: solid white .5pt; mso-border-themecolor: background1; mso-border-right-alt: solid #E8E8E8 .5pt" vAlign=top width=346 colSpan=2>
5 position Joystick, 1EA<o:p></o:p></TD></TR>
<TR style="HEIGHT: 5.5pt; mso-yfti-irow: 20">
<TD style="BORDER-BOTTOM: white 1pt solid; BORDER-LEFT: #e8e8e8 1pt solid; PADDING-BOTTOM: 1.5pt; BACKGROUND-COLOR: transparent; PADDING-LEFT: 1.5pt; WIDTH: 69.1pt; PADDING-RIGHT: 1.5pt; HEIGHT: 5.5pt; BORDER-TOP: white 1pt solid; BORDER-RIGHT: white 1pt solid; PADDING-TOP: 1.5pt; mso-border-alt: solid white .5pt; mso-border-themecolor: background1; mso-border-left-alt: solid #E8E8E8 .5pt" vAlign=top width=92>
Potentiometer<o:p></o:p></TD>
<TD style="BORDER-BOTTOM: white 1pt solid; BORDER-LEFT: white 1pt solid; PADDING-BOTTOM: 1.5pt; BACKGROUND-COLOR: transparent; PADDING-LEFT: 1.5pt; WIDTH: 259.25pt; PADDING-RIGHT: 1.5pt; HEIGHT: 5.5pt; BORDER-TOP: white 1pt solid; BORDER-RIGHT: #e8e8e8 1pt solid; PADDING-TOP: 1.5pt; mso-border-alt: solid white .5pt; mso-border-themecolor: background1; mso-border-right-alt: solid #E8E8E8 .5pt" vAlign=top width=346 colSpan=2>
12Bit ADC를 이용한 Potentiometer 1EA<o:p></o:p></TD></TR>
<TR style="HEIGHT: 10.4pt; mso-yfti-irow: 21">
<TD style="BORDER-BOTTOM: #f4f4f4; BORDER-LEFT: #e8e8e8 1pt solid; PADDING-BOTTOM: 1.5pt; BACKGROUND-COLOR: transparent; PADDING-LEFT: 1.5pt; WIDTH: 69.1pt; PADDING-RIGHT: 1.5pt; HEIGHT: 10.4pt; BORDER-TOP: white 1pt solid; BORDER-RIGHT: white 1pt solid; PADDING-TOP: 1.5pt; mso-border-left-alt: solid #E8E8E8 .5pt; mso-border-top-alt: solid white .5pt; mso-border-top-themecolor: background1; mso-border-right-themecolor: background1; mso-border-right-alt: solid white .5pt" vAlign=top width=92>
Switch<o:p></o:p></TD>
<TD style="BORDER-BOTTOM: #f4f4f4; BORDER-LEFT: white 1pt solid; PADDING-BOTTOM: 1.5pt; BACKGROUND-COLOR: transparent; PADDING-LEFT: 1.5pt; WIDTH: 259.25pt; PADDING-RIGHT: 1.5pt; HEIGHT: 10.4pt; BORDER-TOP: white 1pt solid; BORDER-RIGHT: #e8e8e8 1pt solid; PADDING-TOP: 1.5pt; mso-border-left-alt: solid white .5pt; mso-border-left-themecolor: background1; mso-border-top-alt: solid white .5pt; mso-border-top-themecolor: background1; mso-border-right-alt: solid #E8E8E8 .5pt" vAlign=top width=346 colSpan=2>
Push Button 1EA<o:p></o:p></TD></TR>
<TR style="HEIGHT: 14.85pt; mso-yfti-irow: 22">
<TD style="BORDER-BOTTOM: #e8e8e8 1pt solid; BORDER-LEFT: #e8e8e8 1pt solid; PADDING-BOTTOM: 1.5pt; PADDING-LEFT: 1.5pt; WIDTH: 108.7pt; PADDING-RIGHT: 1.5pt; BACKGROUND: #e8f3ff; HEIGHT: 14.85pt; BORDER-TOP: #e8e8e8 1pt solid; BORDER-RIGHT: #e8e8e8 1pt solid; PADDING-TOP: 1.5pt; mso-border-alt: solid #E8E8E8 .5pt" vAlign=top width=145>
Download/Debug<o:p></o:p></TD>
<TD style="BORDER-BOTTOM: #f4f4f4; BORDER-LEFT: #e8e8e8 1pt solid; PADDING-BOTTOM: 1.5pt; BACKGROUND-COLOR: transparent; PADDING-LEFT: 1.5pt; WIDTH: 69.1pt; PADDING-RIGHT: 1.5pt; HEIGHT: 14.85pt; BORDER-TOP: #e8e8e8 1pt solid; BORDER-RIGHT: white 1pt solid; PADDING-TOP: 1.5pt; mso-border-left-alt: solid #E8E8E8 .5pt; mso-border-top-alt: solid #E8E8E8 .5pt; mso-border-right-themecolor: background1; mso-border-right-alt: solid white .5pt" vAlign=top width=92>
JTAG<o:p></o:p></TD>
<TD style="BORDER-BOTTOM: #f4f4f4; BORDER-LEFT: white 1pt solid; PADDING-BOTTOM: 1.5pt; BACKGROUND-COLOR: transparent; PADDING-LEFT: 1.5pt; WIDTH: 259.25pt; PADDING-RIGHT: 1.5pt; HEIGHT: 14.85pt; BORDER-TOP: #e8e8e8 1pt solid; BORDER-RIGHT: #e8e8e8 1pt solid; PADDING-TOP: 1.5pt; mso-border-left-alt: solid white .5pt; mso-border-left-themecolor: background1; mso-border-top-alt: solid #E8E8E8 .5pt; mso-border-right-alt: solid #E8E8E8 .5pt" vAlign=top width=346 colSpan=2>
ULINK2 또는 ULINK-ME를 사용하여 Download, Debugging JTAG 1Port<o:p></o:p></TD></TR>
<TR style="HEIGHT: 14.85pt; mso-yfti-irow: 23">
<TD style="BORDER-BOTTOM: #e8e8e8 1pt solid; BORDER-LEFT: #e8e8e8 1pt solid; PADDING-BOTTOM: 1.5pt; PADDING-LEFT: 1.5pt; WIDTH: 108.7pt; PADDING-RIGHT: 1.5pt; BACKGROUND: #e8f3ff; HEIGHT: 14.85pt; BORDER-TOP: #e8e8e8 1pt solid; BORDER-RIGHT: #e8e8e8 1pt solid; PADDING-TOP: 1.5pt; mso-border-alt: solid #E8E8E8 .5pt" vAlign=top width=145>
Setting<o:p></o:p></TD>
<TD style="BORDER-BOTTOM: #f4f4f4; BORDER-LEFT: #e8e8e8 1pt solid; PADDING-BOTTOM: 1.5pt; BACKGROUND-COLOR: transparent; PADDING-LEFT: 1.5pt; WIDTH: 69.1pt; PADDING-RIGHT: 1.5pt; HEIGHT: 14.85pt; BORDER-TOP: #e8e8e8 1pt solid; BORDER-RIGHT: white 1pt solid; PADDING-TOP: 1.5pt; mso-border-left-alt: solid #E8E8E8 .5pt; mso-border-top-alt: solid #E8E8E8 .5pt; mso-border-right-themecolor: background1; mso-border-right-alt: solid white .5pt" vAlign=top width=92>
Jumper<o:p></o:p></TD>
<TD style="BORDER-BOTTOM: #f4f4f4; BORDER-LEFT: white 1pt solid; PADDING-BOTTOM: 1.5pt; BACKGROUND-COLOR: transparent; PADDING-LEFT: 1.5pt; WIDTH: 259.25pt; PADDING-RIGHT: 1.5pt; HEIGHT: 14.85pt; BORDER-TOP: #e8e8e8 1pt solid; BORDER-RIGHT: #e8e8e8 1pt solid; PADDING-TOP: 1.5pt; mso-border-left-alt: solid white .5pt; mso-border-left-themecolor: background1; mso-border-top-alt: solid #E8E8E8 .5pt; mso-border-right-alt: solid #E8E8E8 .5pt" vAlign=top width=346 colSpan=2>
하드웨어 Enable/disable을 위한 Configuration jumper<o:p></o:p></TD></TR>
<TR style="HEIGHT: 20.3pt; mso-yfti-irow: 24; mso-yfti-lastrow: yes">
<TD style="BORDER-BOTTOM: #f4f4f4; BORDER-LEFT: #e8e8e8 1pt solid; PADDING-BOTTOM: 1.5pt; PADDING-LEFT: 1.5pt; WIDTH: 108.7pt; PADDING-RIGHT: 1.5pt; BACKGROUND: #e8f3ff; HEIGHT: 20.3pt; BORDER-TOP: #e8e8e8 1pt solid; BORDER-RIGHT: #e8e8e8 1pt solid; PADDING-TOP: 1.5pt; mso-border-left-alt: solid #E8E8E8 .5pt; mso-border-top-alt: solid #E8E8E8 .5pt; mso-border-right-alt: solid #E8E8E8 .5pt" vAlign=top width=145>
Power<o:p></o:p></TD>
<TD style="BORDER-BOTTOM: #f4f4f4; BORDER-LEFT: #e8e8e8 1pt solid; PADDING-BOTTOM: 1.5pt; BACKGROUND-COLOR: transparent; PADDING-LEFT: 1.5pt; WIDTH: 69.1pt; PADDING-RIGHT: 1.5pt; HEIGHT: 20.3pt; BORDER-TOP: #e8e8e8 1pt solid; BORDER-RIGHT: white 1pt solid; PADDING-TOP: 1.5pt; mso-border-left-alt: solid #E8E8E8 .5pt; mso-border-top-alt: solid #E8E8E8 .5pt; mso-border-right-themecolor: background1; mso-border-right-alt: solid white .5pt" vAlign=top width=92>
Power<o:p></o:p></TD>
<TD style="BORDER-BOTTOM: #f4f4f4; BORDER-LEFT: white 1pt solid; PADDING-BOTTOM: 1.5pt; BACKGROUND-COLOR: transparent; PADDING-LEFT: 1.5pt; WIDTH: 259.25pt; PADDING-RIGHT: 1.5pt; HEIGHT: 20.3pt; BORDER-TOP: #e8e8e8 1pt solid; BORDER-RIGHT: #e8e8e8 1pt solid; PADDING-TOP: 1.5pt; mso-border-left-alt: solid white .5pt; mso-border-left-themecolor: background1; mso-border-top-alt: solid #E8E8E8 .5pt; mso-border-right-alt: solid #E8E8E8 .5pt" vAlign=top width=346 colSpan=2>
5V DC adapter 또는 5V USB Device 전원<o:p></o:p></TD></TR></TBODY></TABLE>

<SPAN style="COLOR: #484849; FONT-SIZE: 9pt; mso-bidi-font-family: 굴림; mso-font-kerning: 0pt; mso-fareast-font-family: '맑은 고딕'; mso-fareast-theme-font: major-latin; mso-ascii-font-family: '맑은 고딕'; mso-ascii-theme-font: major-latin; mso-hansi-font-family: '맑은 고딕'; mso-hansi-theme-font: major-latin" lang=EN-US><?xml:namespace prefix = o ns = "urn:schemas-microsoft-com:office:office" /><o:p>
<DIV align=center>
<TABLE style="MARGIN: auto auto auto 23.1pt; WIDTH: 450.95pt; mso-yfti-tbllook: 1184; mso-padding-alt: 1.5pt 1.5pt 1.5pt 1.5pt; mso-cellspacing: 0cm" class=MsoNormalTable border=1 cellSpacing=0 cellPadding=0 width=601>
<TBODY>
<TR style="HEIGHT: 19.7pt; mso-yfti-irow: 0; mso-yfti-firstrow: yes">
<TD style="BORDER-BOTTOM: #e8e8e8 1pt solid; BORDER-LEFT: #e8e8e8 1pt solid; PADDING-BOTTOM: 1.5pt; PADDING-LEFT: 1.5pt; WIDTH: 117.85pt; PADDING-RIGHT: 1.5pt; BACKGROUND: #006699; HEIGHT: 19.7pt; BORDER-TOP: #e8e8e8 1pt solid; BORDER-RIGHT: #e8e8e8 1pt solid; PADDING-TOP: 1.5pt; mso-border-alt: solid #E8E8E8 .5pt" width=157>
구  성<o:p></o:p></TD>
<TD style="BORDER-BOTTOM: #e8e8e8 1pt solid; BORDER-LEFT: #e8e8e8 1pt solid; PADDING-BOTTOM: 1.5pt; PADDING-LEFT: 1.5pt; WIDTH: 333.1pt; PADDING-RIGHT: 1.5pt; BACKGROUND: #0099cc; HEIGHT: 19.7pt; BORDER-TOP: #e8e8e8 1pt solid; BORDER-RIGHT: #e8e8e8 1pt solid; PADDING-TOP: 1.5pt; mso-border-alt: solid #E8E8E8 .5pt" width=444>
내  용<o:p></o:p></TD></TR>
<TR style="HEIGHT: 14.9pt; mso-yfti-irow: 1">
<TD style="BORDER-BOTTOM: #e8e8e8 1pt solid; BORDER-LEFT: #e8e8e8 1pt solid; PADDING-BOTTOM: 1.5pt; PADDING-LEFT: 1.5pt; WIDTH: 117.85pt; PADDING-RIGHT: 1.5pt; BACKGROUND: #e8f3ff; HEIGHT: 14.9pt; BORDER-TOP: #e8e8e8 1pt solid; BORDER-RIGHT: #e8e8e8 1pt solid; PADDING-TOP: 1.5pt; mso-border-alt: solid #E8E8E8 .5pt" vAlign=top width=157>
1장<o:p></o:p></TD>
<TD style="BORDER-BOTTOM: #e8e8e8 1pt solid; BORDER-LEFT: #e8e8e8 1pt solid; PADDING-BOTTOM: 1.5pt; BACKGROUND-COLOR: transparent; PADDING-LEFT: 1.5pt; WIDTH: 333.1pt; PADDING-RIGHT: 1.5pt; HEIGHT: 14.9pt; BORDER-TOP: #e8e8e8 1pt solid; BORDER-RIGHT: #e8e8e8 1pt solid; PADDING-TOP: 1.5pt; mso-border-alt: solid #E8E8E8 .5pt" vAlign=top width=444>
Cortex-M3 개요 및 개발환경 <o:p></o:p></TD></TR>
<TR style="HEIGHT: 14.9pt; mso-yfti-irow: 2">
<TD style="BORDER-BOTTOM: #e8e8e8 1pt solid; BORDER-LEFT: #e8e8e8 1pt solid; PADDING-BOTTOM: 1.5pt; PADDING-LEFT: 1.5pt; WIDTH: 117.85pt; PADDING-RIGHT: 1.5pt; BACKGROUND: #e8f3ff; HEIGHT: 14.9pt; BORDER-TOP: #e8e8e8 1pt solid; BORDER-RIGHT: #e8e8e8 1pt solid; PADDING-TOP: 1.5pt; mso-border-alt: solid #E8E8E8 .5pt" vAlign=top width=157>
2장<o:p></o:p></TD>
<TD style="BORDER-BOTTOM: #e8e8e8 1pt solid; BORDER-LEFT: #e8e8e8 1pt solid; PADDING-BOTTOM: 1.5pt; BACKGROUND-COLOR: transparent; PADDING-LEFT: 1.5pt; WIDTH: 333.1pt; PADDING-RIGHT: 1.5pt; HEIGHT: 14.9pt; BORDER-TOP: #e8e8e8 1pt solid; BORDER-RIGHT: #e8e8e8 1pt solid; PADDING-TOP: 1.5pt; mso-border-alt: solid #E8E8E8 .5pt" vAlign=top width=444>
인터럽트 핸들링, Memory Map과 NVIC 제어 <o:p></o:p></TD></TR>
<TR style="HEIGHT: 14.4pt; mso-yfti-irow: 3">
<TD style="BORDER-BOTTOM: #e8e8e8 1pt solid; BORDER-LEFT: #e8e8e8 1pt solid; PADDING-BOTTOM: 1.5pt; PADDING-LEFT: 1.5pt; WIDTH: 117.85pt; PADDING-RIGHT: 1.5pt; BACKGROUND: #e8f3ff; HEIGHT: 14.4pt; BORDER-TOP: #e8e8e8 1pt solid; BORDER-RIGHT: #e8e8e8 1pt solid; PADDING-TOP: 1.5pt; mso-border-alt: solid #E8E8E8 .5pt" vAlign=top width=157>
3장<o:p></o:p></TD>
<TD style="BORDER-BOTTOM: #f4f4f4; BORDER-LEFT: #e8e8e8 1pt solid; PADDING-BOTTOM: 1.5pt; BACKGROUND-COLOR: transparent; PADDING-LEFT: 1.5pt; WIDTH: 333.1pt; PADDING-RIGHT: 1.5pt; HEIGHT: 14.4pt; BORDER-TOP: #e8e8e8 1pt solid; BORDER-RIGHT: #e8e8e8 1pt solid; PADDING-TOP: 1.5pt; mso-border-left-alt: solid #E8E8E8 .5pt; mso-border-top-alt: solid #E8E8E8 .5pt; mso-border-right-alt: solid #E8E8E8 .5pt" vAlign=top width=444>
Timer/인터럽트를 이용한 LED 제어<o:p></o:p></TD></TR>
<TR style="HEIGHT: 14.4pt; mso-yfti-irow: 4">
<TD style="BORDER-BOTTOM: #e8e8e8 1pt solid; BORDER-LEFT: #e8e8e8 1pt solid; PADDING-BOTTOM: 1.5pt; PADDING-LEFT: 1.5pt; WIDTH: 117.85pt; PADDING-RIGHT: 1.5pt; BACKGROUND: #e8f3ff; HEIGHT: 14.4pt; BORDER-TOP: #e8e8e8 1pt solid; BORDER-RIGHT: #e8e8e8 1pt solid; PADDING-TOP: 1.5pt; mso-border-alt: solid #E8E8E8 .5pt" vAlign=top width=157>
4장<o:p></o:p></TD>
<TD style="BORDER-BOTTOM: #f4f4f4; BORDER-LEFT: #e8e8e8 1pt solid; PADDING-BOTTOM: 1.5pt; BACKGROUND-COLOR: transparent; PADDING-LEFT: 1.5pt; WIDTH: 333.1pt; PADDING-RIGHT: 1.5pt; HEIGHT: 14.4pt; BORDER-TOP: #e8e8e8 1pt solid; BORDER-RIGHT: #e8e8e8 1pt solid; PADDING-TOP: 1.5pt; mso-border-left-alt: solid #E8E8E8 .5pt; mso-border-top-alt: solid #E8E8E8 .5pt; mso-border-right-alt: solid #E8E8E8 .5pt" vAlign=top width=444>
TFTLCD 제어<o:p></o:p></TD></TR>
<TR style="HEIGHT: 14.4pt; mso-yfti-irow: 5">
<TD style="BORDER-BOTTOM: #e8e8e8 1pt solid; BORDER-LEFT: #e8e8e8 1pt solid; PADDING-BOTTOM: 1.5pt; PADDING-LEFT: 1.5pt; WIDTH: 117.85pt; PADDING-RIGHT: 1.5pt; BACKGROUND: #e8f3ff; HEIGHT: 14.4pt; BORDER-TOP: #e8e8e8 1pt solid; BORDER-RIGHT: #e8e8e8 1pt solid; PADDING-TOP: 1.5pt; mso-border-alt: solid #E8E8E8 .5pt" vAlign=top width=157>
5장<o:p></o:p></TD>
<TD style="BORDER-BOTTOM: #f4f4f4; BORDER-LEFT: #e8e8e8 1pt solid; PADDING-BOTTOM: 1.5pt; BACKGROUND-COLOR: transparent; PADDING-LEFT: 1.5pt; WIDTH: 333.1pt; PADDING-RIGHT: 1.5pt; HEIGHT: 14.4pt; BORDER-TOP: #e8e8e8 1pt solid; BORDER-RIGHT: #e8e8e8 1pt solid; PADDING-TOP: 1.5pt; mso-border-left-alt: solid #E8E8E8 .5pt; mso-border-top-alt: solid #E8E8E8 .5pt; mso-border-right-alt: solid #E8E8E8 .5pt" vAlign=top width=444>
FND 제어 <o:p></o:p></TD></TR>
<TR style="HEIGHT: 14.4pt; mso-yfti-irow: 6">
<TD style="BORDER-BOTTOM: #e8e8e8 1pt solid; BORDER-LEFT: #e8e8e8 1pt solid; PADDING-BOTTOM: 1.5pt; PADDING-LEFT: 1.5pt; WIDTH: 117.85pt; PADDING-RIGHT: 1.5pt; BACKGROUND: #e8f3ff; HEIGHT: 14.4pt; BORDER-TOP: #e8e8e8 1pt solid; BORDER-RIGHT: #e8e8e8 1pt solid; PADDING-TOP: 1.5pt; mso-border-alt: solid #E8E8E8 .5pt" vAlign=top width=157>
6장<o:p></o:p></TD>
<TD style="BORDER-BOTTOM: #f4f4f4; BORDER-LEFT: #e8e8e8 1pt solid; PADDING-BOTTOM: 1.5pt; BACKGROUND-COLOR: transparent; PADDING-LEFT: 1.5pt; WIDTH: 333.1pt; PADDING-RIGHT: 1.5pt; HEIGHT: 14.4pt; BORDER-TOP: #e8e8e8 1pt solid; BORDER-RIGHT: #e8e8e8 1pt solid; PADDING-TOP: 1.5pt; mso-border-left-alt: solid #E8E8E8 .5pt; mso-border-top-alt: solid #E8E8E8 .5pt; mso-border-right-alt: solid #E8E8E8 .5pt" vAlign=top width=444>
Step Motor 제어 <o:p></o:p></TD></TR>
<TR style="HEIGHT: 14.4pt; mso-yfti-irow: 7">
<TD style="BORDER-BOTTOM: #e8e8e8 1pt solid; BORDER-LEFT: #e8e8e8 1pt solid; PADDING-BOTTOM: 1.5pt; PADDING-LEFT: 1.5pt; WIDTH: 117.85pt; PADDING-RIGHT: 1.5pt; BACKGROUND: #e8f3ff; HEIGHT: 14.4pt; BORDER-TOP: #e8e8e8 1pt solid; BORDER-RIGHT: #e8e8e8 1pt solid; PADDING-TOP: 1.5pt; mso-border-alt: solid #E8E8E8 .5pt" vAlign=top width=157>
7장<o:p></o:p></TD>
<TD style="BORDER-BOTTOM: #f4f4f4; BORDER-LEFT: #e8e8e8 1pt solid; PADDING-BOTTOM: 1.5pt; BACKGROUND-COLOR: transparent; PADDING-LEFT: 1.5pt; WIDTH: 333.1pt; PADDING-RIGHT: 1.5pt; HEIGHT: 14.4pt; BORDER-TOP: #e8e8e8 1pt solid; BORDER-RIGHT: #e8e8e8 1pt solid; PADDING-TOP: 1.5pt; mso-border-left-alt: solid #E8E8E8 .5pt; mso-border-top-alt: solid #E8E8E8 .5pt; mso-border-right-alt: solid #E8E8E8 .5pt" vAlign=top width=444>
PWM을 이용한 서보모터 제어 <o:p></o:p></TD></TR>
<TR style="HEIGHT: 14.4pt; mso-yfti-irow: 8">
<TD style="BORDER-BOTTOM: #e8e8e8 1pt solid; BORDER-LEFT: #e8e8e8 1pt solid; PADDING-BOTTOM: 1.5pt; PADDING-LEFT: 1.5pt; WIDTH: 117.85pt; PADDING-RIGHT: 1.5pt; BACKGROUND: #e8f3ff; HEIGHT: 14.4pt; BORDER-TOP: #e8e8e8 1pt solid; BORDER-RIGHT: #e8e8e8 1pt solid; PADDING-TOP: 1.5pt; mso-border-alt: solid #E8E8E8 .5pt" vAlign=top width=157>
8장<o:p></o:p></TD>
<TD style="BORDER-BOTTOM: #f4f4f4; BORDER-LEFT: #e8e8e8 1pt solid; PADDING-BOTTOM: 1.5pt; BACKGROUND-COLOR: transparent; PADDING-LEFT: 1.5pt; WIDTH: 333.1pt; PADDING-RIGHT: 1.5pt; HEIGHT: 14.4pt; BORDER-TOP: #e8e8e8 1pt solid; BORDER-RIGHT: #e8e8e8 1pt solid; PADDING-TOP: 1.5pt; mso-border-left-alt: solid #E8E8E8 .5pt; mso-border-top-alt: solid #E8E8E8 .5pt; mso-border-right-alt: solid #E8E8E8 .5pt" vAlign=top width=444>
Keypad 제어 <o:p></o:p></TD></TR>
<TR style="HEIGHT: 14.4pt; mso-yfti-irow: 9">
<TD style="BORDER-BOTTOM: #e8e8e8 1pt solid; BORDER-LEFT: #e8e8e8 1pt solid; PADDING-BOTTOM: 1.5pt; PADDING-LEFT: 1.5pt; WIDTH: 117.85pt; PADDING-RIGHT: 1.5pt; BACKGROUND: #e8f3ff; HEIGHT: 14.4pt; BORDER-TOP: #e8e8e8 1pt solid; BORDER-RIGHT: #e8e8e8 1pt solid; PADDING-TOP: 1.5pt; mso-border-alt: solid #E8E8E8 .5pt" vAlign=top width=157>
9장<o:p></o:p></TD>
<TD style="BORDER-BOTTOM: #f4f4f4; BORDER-LEFT: #e8e8e8 1pt solid; PADDING-BOTTOM: 1.5pt; BACKGROUND-COLOR: transparent; PADDING-LEFT: 1.5pt; WIDTH: 333.1pt; PADDING-RIGHT: 1.5pt; HEIGHT: 14.4pt; BORDER-TOP: #e8e8e8 1pt solid; BORDER-RIGHT: #e8e8e8 1pt solid; PADDING-TOP: 1.5pt; mso-border-left-alt: solid #E8E8E8 .5pt; mso-border-top-alt: solid #E8E8E8 .5pt; mso-border-right-alt: solid #E8E8E8 .5pt" vAlign=top width=444>
ADC를 이용한 Sensor 제어 <o:p></o:p></TD></TR>
<TR style="HEIGHT: 14.4pt; mso-yfti-irow: 10">
<TD style="BORDER-BOTTOM: #e8e8e8 1pt solid; BORDER-LEFT: #e8e8e8 1pt solid; PADDING-BOTTOM: 1.5pt; PADDING-LEFT: 1.5pt; WIDTH: 117.85pt; PADDING-RIGHT: 1.5pt; BACKGROUND: #e8f3ff; HEIGHT: 14.4pt; BORDER-TOP: #e8e8e8 1pt solid; BORDER-RIGHT: #e8e8e8 1pt solid; PADDING-TOP: 1.5pt; mso-border-alt: solid #E8E8E8 .5pt" vAlign=top width=157>
10장<o:p></o:p></TD>
<TD style="BORDER-BOTTOM: #f4f4f4; BORDER-LEFT: #e8e8e8 1pt solid; PADDING-BOTTOM: 1.5pt; BACKGROUND-COLOR: transparent; PADDING-LEFT: 1.5pt; WIDTH: 333.1pt; PADDING-RIGHT: 1.5pt; HEIGHT: 14.4pt; BORDER-TOP: #e8e8e8 1pt solid; BORDER-RIGHT: #e8e8e8 1pt solid; PADDING-TOP: 1.5pt; mso-border-left-alt: solid #E8E8E8 .5pt; mso-border-top-alt: solid #E8E8E8 .5pt; mso-border-right-alt: solid #E8E8E8 .5pt" vAlign=top width=444>
RTX Kernel을 이용한 Real-Time Traffic 제어<o:p></o:p></TD></TR>
<TR style="HEIGHT: 14.4pt; mso-yfti-irow: 11">
<TD style="BORDER-BOTTOM: #e8e8e8 1pt solid; BORDER-LEFT: #e8e8e8 1pt solid; PADDING-BOTTOM: 1.5pt; PADDING-LEFT: 1.5pt; WIDTH: 117.85pt; PADDING-RIGHT: 1.5pt; BACKGROUND: #e8f3ff; HEIGHT: 14.4pt; BORDER-TOP: #e8e8e8 1pt solid; BORDER-RIGHT: #e8e8e8 1pt solid; PADDING-TOP: 1.5pt; mso-border-alt: solid #E8E8E8 .5pt" vAlign=top width=157>
11장<o:p></o:p></TD>
<TD style="BORDER-BOTTOM: #f4f4f4; BORDER-LEFT: #e8e8e8 1pt solid; PADDING-BOTTOM: 1.5pt; BACKGROUND-COLOR: transparent; PADDING-LEFT: 1.5pt; WIDTH: 333.1pt; PADDING-RIGHT: 1.5pt; HEIGHT: 14.4pt; BORDER-TOP: #e8e8e8 1pt solid; BORDER-RIGHT: #e8e8e8 1pt solid; PADDING-TOP: 1.5pt; mso-border-left-alt: solid #E8E8E8 .5pt; mso-border-top-alt: solid #E8E8E8 .5pt; mso-border-right-alt: solid #E8E8E8 .5pt" vAlign=top width=444>
CAN 통신 제어 <o:p></o:p></TD></TR>
<TR style="HEIGHT: 14.4pt; mso-yfti-irow: 12">
<TD style="BORDER-BOTTOM: #e8e8e8 1pt solid; BORDER-LEFT: #e8e8e8 1pt solid; PADDING-BOTTOM: 1.5pt; PADDING-LEFT: 1.5pt; WIDTH: 117.85pt; PADDING-RIGHT: 1.5pt; BACKGROUND: #e8f3ff; HEIGHT: 14.4pt; BORDER-TOP: #e8e8e8 1pt solid; BORDER-RIGHT: #e8e8e8 1pt solid; PADDING-TOP: 1.5pt; mso-border-alt: solid #E8E8E8 .5pt" vAlign=top width=157>
12장<o:p></o:p></TD>
<TD style="BORDER-BOTTOM: #f4f4f4; BORDER-LEFT: #e8e8e8 1pt solid; PADDING-BOTTOM: 1.5pt; BACKGROUND-COLOR: transparent; PADDING-LEFT: 1.5pt; WIDTH: 333.1pt; PADDING-RIGHT: 1.5pt; HEIGHT: 14.4pt; BORDER-TOP: #e8e8e8 1pt solid; BORDER-RIGHT: #e8e8e8 1pt solid; PADDING-TOP: 1.5pt; mso-border-left-alt: solid #E8E8E8 .5pt; mso-border-top-alt: solid #E8E8E8 .5pt; mso-border-right-alt: solid #E8E8E8 .5pt" vAlign=top width=444>
RS232 통신을 이용한 PC 통신 제어<o:p></o:p></TD></TR>
<TR style="HEIGHT: 14.4pt; mso-yfti-irow: 13">
<TD style="BORDER-BOTTOM: #e8e8e8 1pt solid; BORDER-LEFT: #e8e8e8 1pt solid; PADDING-BOTTOM: 1.5pt; PADDING-LEFT: 1.5pt; WIDTH: 117.85pt; PADDING-RIGHT: 1.5pt; BACKGROUND: #e8f3ff; HEIGHT: 14.4pt; BORDER-TOP: #e8e8e8 1pt solid; BORDER-RIGHT: #e8e8e8 1pt solid; PADDING-TOP: 1.5pt; mso-border-alt: solid #E8E8E8 .5pt" vAlign=top width=157>
13장<o:p></o:p></TD>
<TD style="BORDER-BOTTOM: #f4f4f4; BORDER-LEFT: #e8e8e8 1pt solid; PADDING-BOTTOM: 1.5pt; BACKGROUND-COLOR: transparent; PADDING-LEFT: 1.5pt; WIDTH: 333.1pt; PADDING-RIGHT: 1.5pt; HEIGHT: 14.4pt; BORDER-TOP: #e8e8e8 1pt solid; BORDER-RIGHT: #e8e8e8 1pt solid; PADDING-TOP: 1.5pt; mso-border-left-alt: solid #E8E8E8 .5pt; mso-border-top-alt: solid #E8E8E8 .5pt; mso-border-right-alt: solid #E8E8E8 .5pt" vAlign=top width=444>
USB를 이용한 대용량 파일 저장<o:p></o:p></TD></TR>
<TR style="HEIGHT: 14.4pt; mso-yfti-irow: 14">
<TD style="BORDER-BOTTOM: #e8e8e8 1pt solid; BORDER-LEFT: #e8e8e8 1pt solid; PADDING-BOTTOM: 1.5pt; PADDING-LEFT: 1.5pt; WIDTH: 117.85pt; PADDING-RIGHT: 1.5pt; BACKGROUND: #e8f3ff; HEIGHT: 14.4pt; BORDER-TOP: #e8e8e8 1pt solid; BORDER-RIGHT: #e8e8e8 1pt solid; PADDING-TOP: 1.5pt; mso-border-alt: solid #E8E8E8 .5pt" vAlign=top width=157>
14장<o:p></o:p></TD>
<TD style="BORDER-BOTTOM: #f4f4f4; BORDER-LEFT: #e8e8e8 1pt solid; PADDING-BOTTOM: 1.5pt; BACKGROUND-COLOR: transparent; PADDING-LEFT: 1.5pt; WIDTH: 333.1pt; PADDING-RIGHT: 1.5pt; HEIGHT: 14.4pt; BORDER-TOP: #e8e8e8 1pt solid; BORDER-RIGHT: #e8e8e8 1pt solid; PADDING-TOP: 1.5pt; mso-border-left-alt: solid #E8E8E8 .5pt; mso-border-top-alt: solid #E8E8E8 .5pt; mso-border-right-alt: solid #E8E8E8 .5pt" vAlign=top width=444>
USB를 이용한 HID(Human Interface Device) 제어<o:p></o:p></TD></TR>
<TR style="HEIGHT: 14.4pt; mso-yfti-irow: 15">
<TD style="BORDER-BOTTOM: #e8e8e8 1pt solid; BORDER-LEFT: #e8e8e8 1pt solid; PADDING-BOTTOM: 1.5pt; PADDING-LEFT: 1.5pt; WIDTH: 117.85pt; PADDING-RIGHT: 1.5pt; BACKGROUND: #e8f3ff; HEIGHT: 14.4pt; BORDER-TOP: #e8e8e8 1pt solid; BORDER-RIGHT: #e8e8e8 1pt solid; PADDING-TOP: 1.5pt; mso-border-alt: solid #E8E8E8 .5pt" vAlign=top width=157>
15장<o:p></o:p></TD>
<TD style="BORDER-BOTTOM: #f4f4f4; BORDER-LEFT: #e8e8e8 1pt solid; PADDING-BOTTOM: 1.5pt; BACKGROUND-COLOR: transparent; PADDING-LEFT: 1.5pt; WIDTH: 333.1pt; PADDING-RIGHT: 1.5pt; HEIGHT: 14.4pt; BORDER-TOP: #e8e8e8 1pt solid; BORDER-RIGHT: #e8e8e8 1pt solid; PADDING-TOP: 1.5pt; mso-border-left-alt: solid #E8E8E8 .5pt; mso-border-top-alt: solid #E8E8E8 .5pt; mso-border-right-alt: solid #E8E8E8 .5pt" vAlign=top width=444>
10/100 Ethernet을 이용한 TCP/IP, HTTP 웹페이지 제어<o:p></o:p></TD></TR>
<TR style="HEIGHT: 14.4pt; mso-yfti-irow: 16; mso-yfti-lastrow: yes">
<TD style="BORDER-BOTTOM: #e8e8e8 1pt solid; BORDER-LEFT: #e8e8e8 1pt solid; PADDING-BOTTOM: 1.5pt; PADDING-LEFT: 1.5pt; WIDTH: 117.85pt; PADDING-RIGHT: 1.5pt; BACKGROUND: #e8f3ff; HEIGHT: 14.4pt; BORDER-TOP: #e8e8e8 1pt solid; BORDER-RIGHT: #e8e8e8 1pt solid; PADDING-TOP: 1.5pt; mso-border-alt: solid #E8E8E8 .5pt" vAlign=top width=157>
16장<o:p></o:p></TD>
<TD style="BORDER-BOTTOM: #f4f4f4; BORDER-LEFT: #e8e8e8 1pt solid; PADDING-BOTTOM: 1.5pt; BACKGROUND-COLOR: transparent; PADDING-LEFT: 1.5pt; WIDTH: 333.1pt; PADDING-RIGHT: 1.5pt; HEIGHT: 14.4pt; BORDER-TOP: #e8e8e8 1pt solid; BORDER-RIGHT: #e8e8e8 1pt solid; PADDING-TOP: 1.5pt; mso-border-left-alt: solid #E8E8E8 .5pt; mso-border-top-alt: solid #E8E8E8 .5pt; mso-border-right-alt: solid #E8E8E8 .5pt" vAlign=top width=444>
Micro SD Card를 이용한 대용량 파일 저장<o:p></o:p></TD></TR></TBODY></TABLE></DIV>
 </o:p>
